ABB SACE Tmax XT5N 400 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=250 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5N 400 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 250 A, 4-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Dip LSI (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100398R1, EAN 8056221004756, ABB/SAP material 1200638270, catalogue code 83051963.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5N 400 Ekip Dip LSI In=250 4p FF
- ABB order code (MPN)
- 1SDA100398R1
- EAN / GTIN
- 8056221004756
- ABB / SAP material no.
- 1200638270
- Frame
- XT5 (400 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- Ekip Dip LSI
- Rated uninterrupted current In
- 250 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221004756
- SAP 1200638270
- Code 83051963
Product Documentation
More from ABB
ABB
ABB Flange x THE COMPART. DOOR XT1..XT4 F/P 1SDA068657R1
ABB
ABB SACE Tmax XT5H 400 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=250 A, 3-Pole
1SDA100488R1
ABB
Ekip LSI In=160A XT4 3P
1SDA067511R1
ABB
MOE XT2-XT4 110...125V ac/dc
1SDA066465R1
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — TMD R63, In=63 A, 4-Pole
1SDA068060R1
ABB
ABB SACE Tmax XT1S 160 Moulded-Case Circuit Breaker — TMD 25-450, In=25 A, 3-Pole
1SDA080832R1
ABB
Load-Break Switch OTDC16F2
ABB

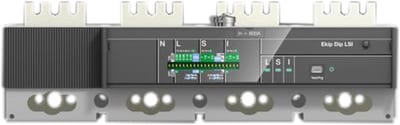

Ekip Dip LSI In=630 XT6 4P
