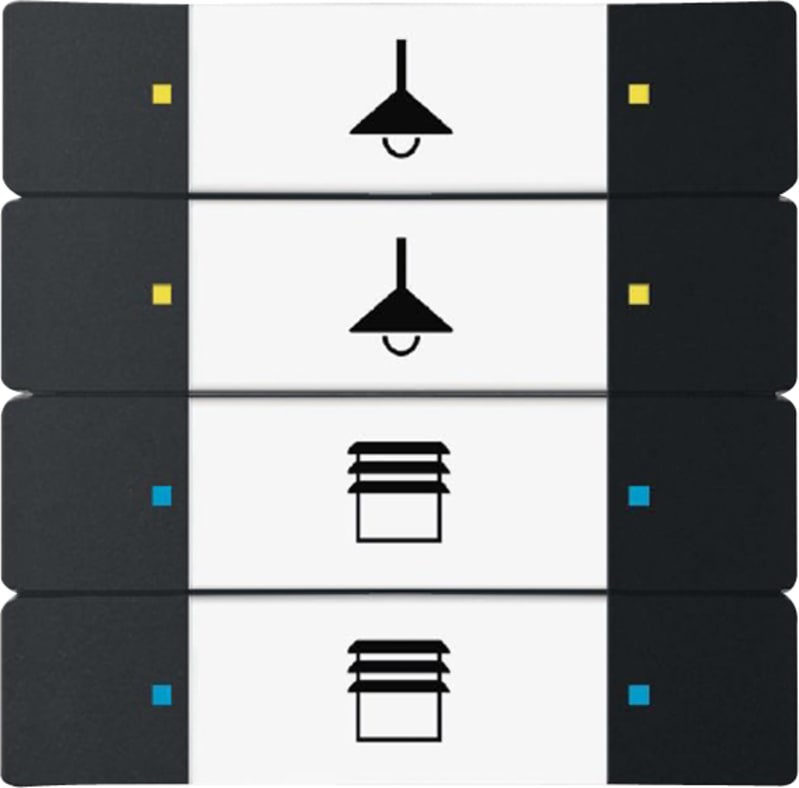

SOLO 4/8V Black M. 6127/02-885-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006117A0243 — For ABB i-bus® KNX 6120/12-101, 6120/13. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. Transparent labelling sheet with standard symbols included in delivery. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006117A0243
- EAN / GTIN
- 4011395140475
- Sales unit
- pcs
- Instructions and Manuals
- DEBJE-ba_73_1_7442_6125_26_27_29-02_500-Man
- Mounting Type
- Flush-mounted
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA006134D0110; DEBJE-th_KNX_Bedienelemente_ABB_FR_V1-Spec
- Number of Buttons
- 8
- Number of Actuation Points
- 8
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- Pin
- Design Range
- Platform 63; future linear; Busch-axcent; carat
- Design Range Variant
- future linear - matt; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9005
- Color
- black matt
- Product Net Width
- 63 mm
- Product Net Height
- 63 mm
- Product Net Depth / Length
- 23 mm
- Built-In Depth ( t 2 )
- 33 mm
- Declaration of Conformity - CE
- 2CKA100000E0967
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0080
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000672 - Touch sensor for bus system
- eClass
- V11.0 : 27143138
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With anti-theft/dismantling protection
- Yes
- With bus connection
- Yes
- With LED indication
- No
- With label area
- Yes
- With display
- No
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Colour
- Black
- Transparent
- No
- With room temperature controller
- No
- With IR sensor
- No
- Min. depth of built-in installation box
- 33 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395140475
- SAP 1000464559
- Code 8880423
Product Documentation
