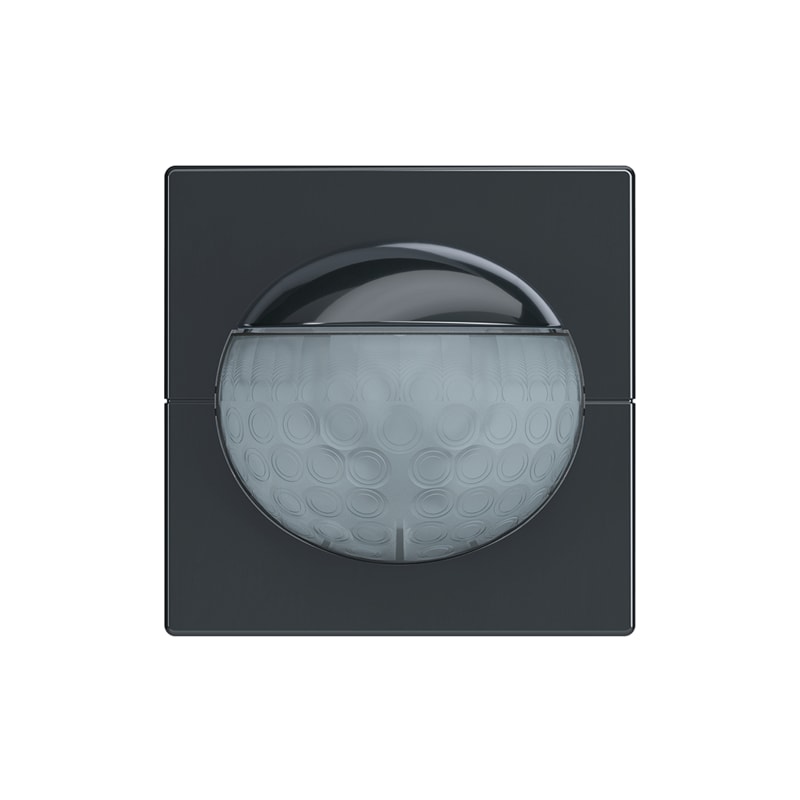

FLEX PIR180 Sensor Multi IMPR. Anthracite

ABB 64764-81-500 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. For detection down to the floor. For detection in stairwells. With 4 detection levels. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Adjusting elements on rear side. Multi-lens: suitable also for mounting heights of 2.20 m. Extension of the detection range by means of master/slave combination. With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 54 sectors with 224 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. For relay insert flex, 1gang, 64811 U. For e-contact insert flex, 1gang, 64814 U. For series relay insert flex, 2gang, 64821 U. For LED touch dimmer insert flex, 1gang, 64851 U. For extension insert flex, 64891 U. Mounting height: 31 mm.

Manufacturer part number (MPN)

64764-81-500 EAN / GTIN: 4011395293751 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: 2CKA000073B5101; 2CKA000073B5124; 2CKA000073B5125; 2CKA000073B5126; 2CKA000073B5127; 2CKA000073B5128 Mounting Type: Flush-mounted Mounting Height: Maximum 2.2 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Product Range: flexTronics; free@home; KNX minimum Switching Time: Switch-On 10 s Connection Type: Pin Sensor Type: Passive Infrared Manual Operation: Yes Sensor Detection Range: 180 °; Horizontal 0 ... 180 ° Design Range: Platform 63; future linear; Busch-axcent; carat; Busch-Dynasty; Impressivo Design Range Variant: Busch-axcent; Busch-axcent pur Surface Finishing: Untreated; Glossy material: Plastic; Thermoplastic RAL Number: Similar to RAL 7021 Color: anthracite Product Net Width: 63 mm Product Net Height: 63 mm Product Net Depth / Length: 44 mm Declaration of Conformity - CE: 2CKA100000E4311 EU Data Act Compliance Declaration: 9AKK108471A4355 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008

HS Code

8536.90

• EAN 4011395293751
• SAP 1200681874
• Code 83539783
