Product Description

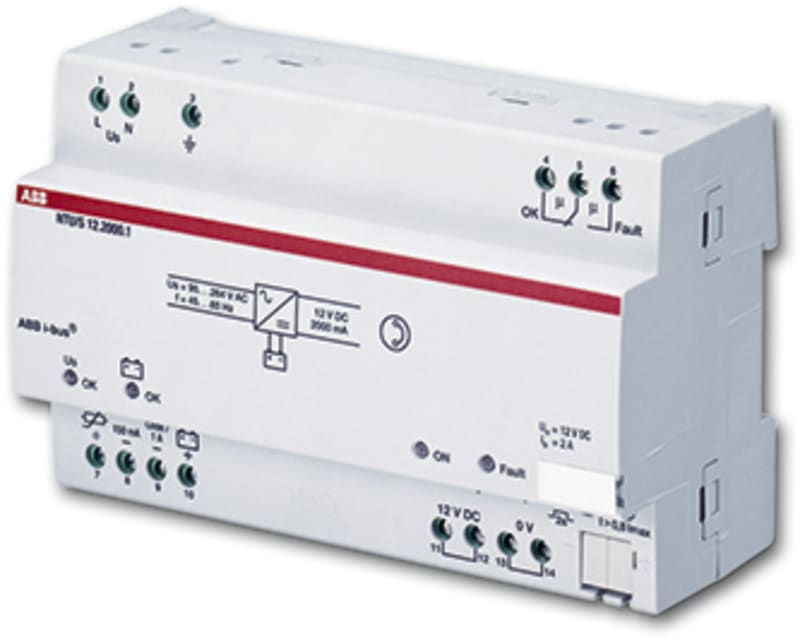

ABB NTU/S12.2000.1 — delivers sufficient power for all types of demanding applications with a buffered output voltage of 12 V DC (SELV) and a maximum output current of 2 A. Operating malfunctions of the power supply are signalled via a changeover contact and can be sent for evaluation purposes. Up to two 12 V DC sealed lead-acid batteries (gel cell) can be connected in parallel with the power supply, in conjunction with the KS/K 4.1 and KS/K 2.1 cable sets, or the AM/S 12.1 battery module.
Technical Specifications
- Manufacturer part number (MPN)
- NTU/S12.2000.1
- EAN / GTIN
- 4016779681179
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941059P0003
- Wiring Diagram
- 2CDC072236F0008
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC501042D0201
- Number of Outputs
- 1
- Number of LEDs
- 1
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- 110 ... 230 V AC
- Output Voltage (U out )
- 12 V DC
- Buffer Voltage
- No
- Output Current Maximum (I out )
- 2 A
- Power Loss
- 8 W; Total 8 W
- Color
- light grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 144 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072027F0017
- EPLAN Data
- 9AAC189145_EPLAN
- Declaration of Conformity - CE
- 2CDK501013D2701
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC002540 - DC-power supply
- eClass
- V11.0 : 27040701
- UNSPSC
- 39121004
- IDEA Granular Category Code (IGCC)
- 4130 >> DC-power supply
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 144 mm
- Height
- 90 mm
- Depth
- 64.5 mm
- Power consumption
- 55 W
- Number of lines to feed
- 1
- Max. output current
- 2 mA
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Bus voltage stockable
- No
- Other bus systems
- Nikobus
- Bus system LON
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4016779681179
- SAP 1000464627
- Code 8886720
