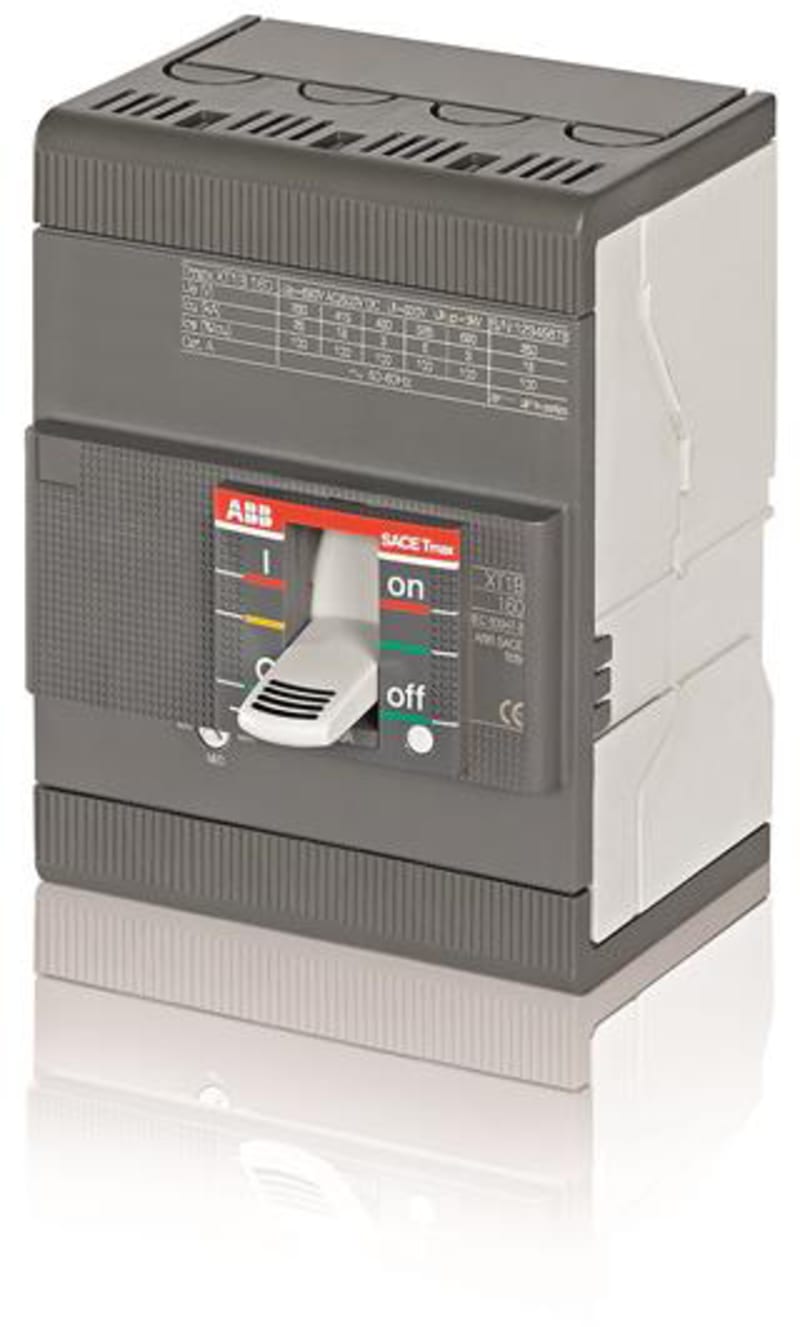

ABB 1SDA068211R1 Switch-Disconnector TMAX XT3D 250 Fixed FOUR-POLE WITH Front Terminals
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA068211R1 Switch-Disconnector TMAX XT3D 250 Fixed FOUR-POLE WITH Front Terminals is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Country of Origin: India; Product Sales Status: Active; ABB EcoSolutions: Yes; Extended Product Lifetime: Product Modularity; Environmental Information: 9AKK108467A6707.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA068211R1
- EAN / GTIN
- 8015644021078
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- ABB EcoSolutions
- Yes
- ABB Site Meeting Group Waste To Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions
- 9AKK108468A2350
- Environmental Product Declaration - EPD
- 9AKK108468A2294; 9AKK108468A7794
- Extended Product Lifetime
- Product Modularity
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 56.6 %
- Environmental Information
- 9AKK108467A6707
- Product Net Width
- 140 mm
- Product Net Height
- 150 mm
- Product Net Depth / Length
- 70 mm
- Product Main Type
- SACE Tmax XT
- Product Type
- Switch Disconnector
- Version
- F
- CAD Dimensional Drawing
- 1SDH001295R0483
- Connecting Capacity Main Circuit
- Busbar 85..192 mm²
- Current Type
- AC/DC
- Electrical Durability
- 120 cycles per hour; 8000 cycle
- Mechanical Durability
- 240 cycles per hour; 25000 cycle
- Number of Poles
- 4P
- Opening Time
- CB with SOR 30 ms; CB with UVR 30 ms
- Order Multiple
- 1 piece
- Power Loss
- at Rated Operating Conditions per Pole 17.8 W
- Rated Current (I n )
- 250 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 800 V
- Rated Operational Voltage
- 690 V AC; 500 V DC
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 3 kA
- Rated Uninterrupted Current (I u )
- 250 A
- Recommended Screw Driver
- Main Circuit M8
- Short-Circuit Performance Level
- D
- Standards
- IEC60947-2
- Sub-type
- XT3
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 8 N·m
- ATEX Certificate
- No certification needed
- Data Sheet, Technical Information
- 2CDC210017C0101; 1SDC210100D0206; 1SXF210033C2001; 1SDC210099D0206; 1SXF210034C2001
- Declaration of Conformity - CE
- 9AKK106713A5530
- UL Certificate
- No certification needed
- VDE Certificate
- No certification needed
- Dimension Diagram
- 1SDH000720R0100
- Mechanical Drawings
- 1SDH000720R0100
- Wiring Diagram
- 1SDM000068R0001
- Instructions and Manuals
- 1SDH000720R0001
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- Object Classification Code
- Q
- UNSPSC
- 39120000
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371403
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 8015644021078
- SAP 1000792101
- Code 81406077
Product Documentation
