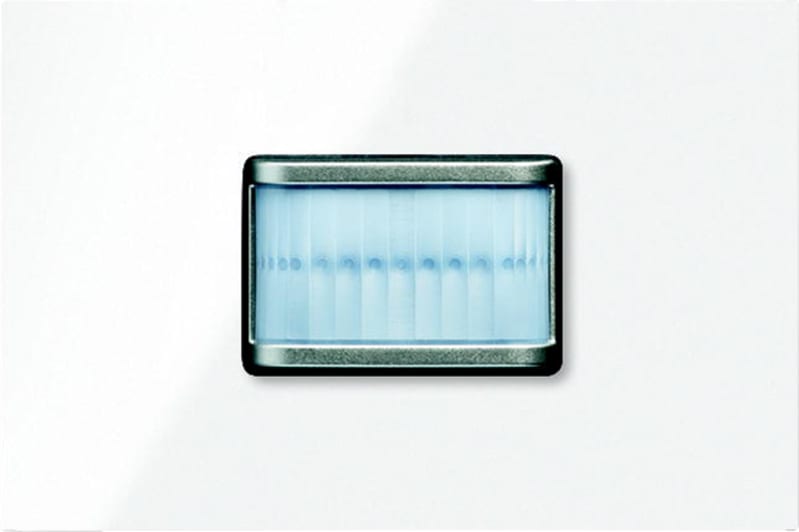

Prion BEV.SENS 6345-24G-101-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006310A0081 — Movement detector with up to 4 channels. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006310A0081
- EAN / GTIN
- 4011395118733
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Mounting Position
- vertical
- Mounting Height
- Optimum 1.1 m
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA000073B7389
- Number of Channels
- 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Sensor Detection Range
- Horizontal 0 ... 180 °; Vertical 0 ... 5 °
- Design Range
- priOn
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white
- Product Net Width
- 107 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 31 mm
- Built-In Depth ( t 2 )
- 33 mm
- Dimension Diagram
- 2CKA000097E0653
- EPLAN Data
- 9AKK108464A1282
- Declaration of Conformity - CE
- 2CKA100000E1457
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0129
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001582 - Movement sensor for bus system
- eClass
- V11.0 : 27143144
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Colour
- White
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Operation mode switch
- No
- Animal zone
- No
- Staircase light controller
- No
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- Optimum mounting height
- 1.1 m
- Max. reach sideways
- 6 m
- Max. reach frontally
- 6 m
- Detection angle vertical
- 0–5 °
- Detection angle horizontal
- 0–180 °
- Min. switch-on time
- 10 s
- Max. duty cycle
- 17 min
- Min. depth of built-in installation box
- 33 mm
- Width
- 107 mm
- Height
- 71 mm
- Depth
- 31 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395118733
- SAP 1000464495
- Code 8880252
Product Documentation
More from ABB
ABB

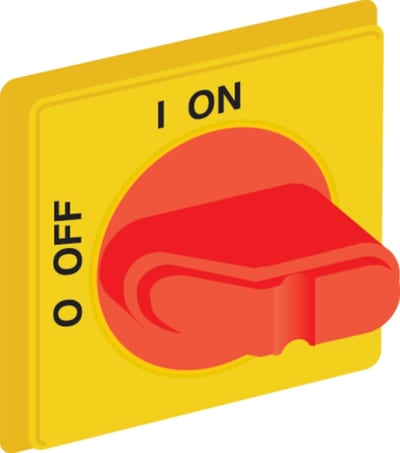

ABB OHYS2PJ SEL HDL RED/YEL DR MNT Snap-ON
ABB

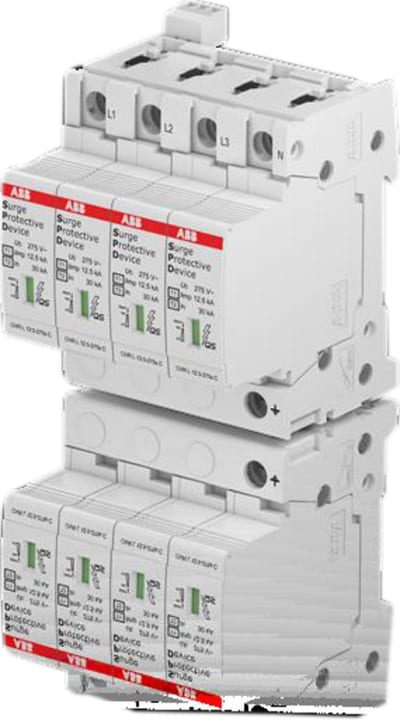

OVR T1-T2 4L 12.5-275S P TS QS
2CTB815710R1100
ABB

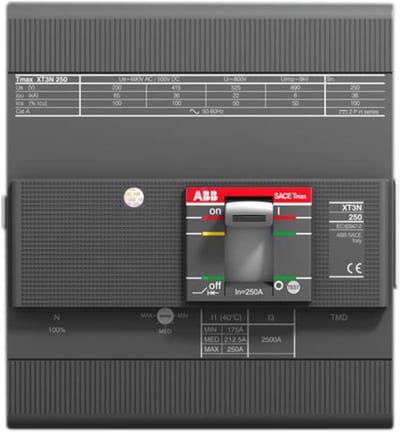

ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — In=400 A, 4-Pole 1SDA068259R1
ABB
ABB SACE Tmax XT3N 250 Moulded-Case Circuit Breaker — In=750 A, 3-Pole
1SDA068257R1
ABB

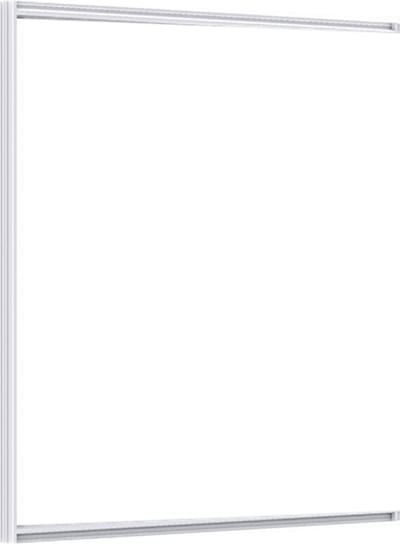

Cover frame TZP204 600X500X30MM
2CPX010632R9999
ABB
Ekip in In=160A XT2 3P
1SDA067304R1
ABB
ABB SACE Tmax XT4H 160 Moulded-Case Circuit Breaker — Ekip In, In=40 A, 3-Pole
1SDA068516R1
ABB

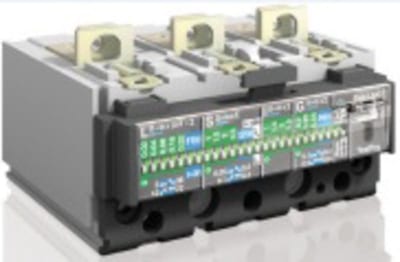

Ekip LS/In In=160A XT2 4P
