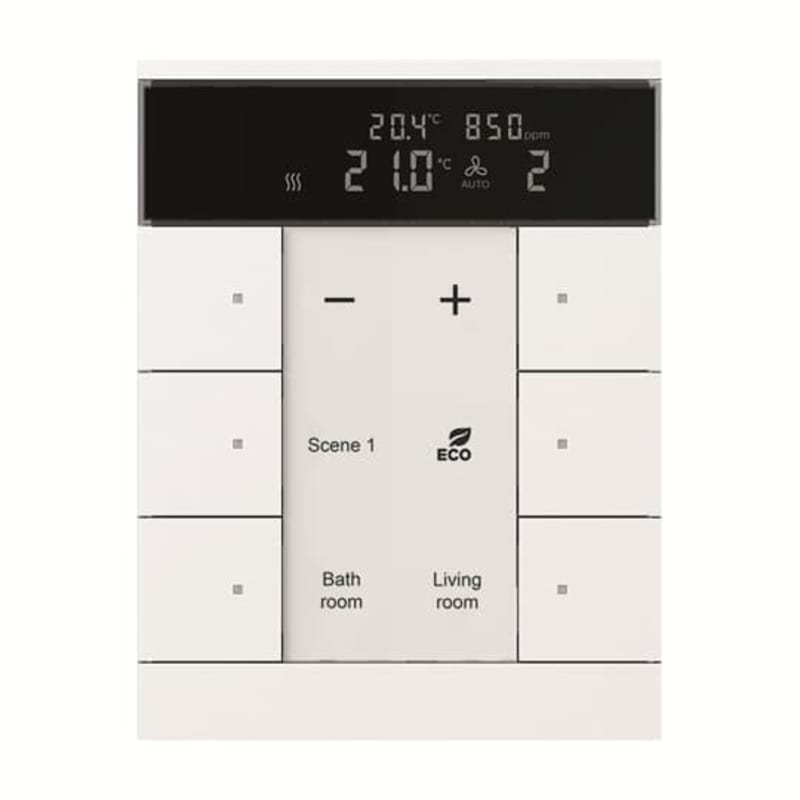

Tenton 3/6V White MATT SBC/U6.0.1-884
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SBC/U6.0.1-884 — Control element with room temperature controller function and CO2/moisture sensor. With integrated KNX bus coupler. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. For activating heating, ventilation and fan coil actuators. Master/slave configuration. With base-load operation. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%. Number of bus subscribers: 2.
Technical Specifications
- Manufacturer part number (MPN)
- SBC/U6.0.1-884
- EAN / GTIN
- 4011395298947
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073BB9649
- Mounting Type
- Flush Mounted; Surface Mounted
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Design Range
- Tenton
- Surface Finishing
- Lacquered; Matt
- Material
- Thermoplastic
- Color
- studio white matt
- Product Net Width
- 90.1 mm
- Product Net Height
- 117.1 mm
- Product Net Depth / Length
- 44.2 mm
- Built-In Depth ( t 2 )
- 30.7 mm
- EPLAN Data
- 9AKK108464A1329
- Declaration of Conformity - CE
- 2CKA100000E4140
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0264
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000926 - Physical sensor for bus system
- eClass
- V11.0 : 27143137
- UNSPSC
- 39121801
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395298947
- SAP 1200504858
- Code 82655559
Product Documentation
