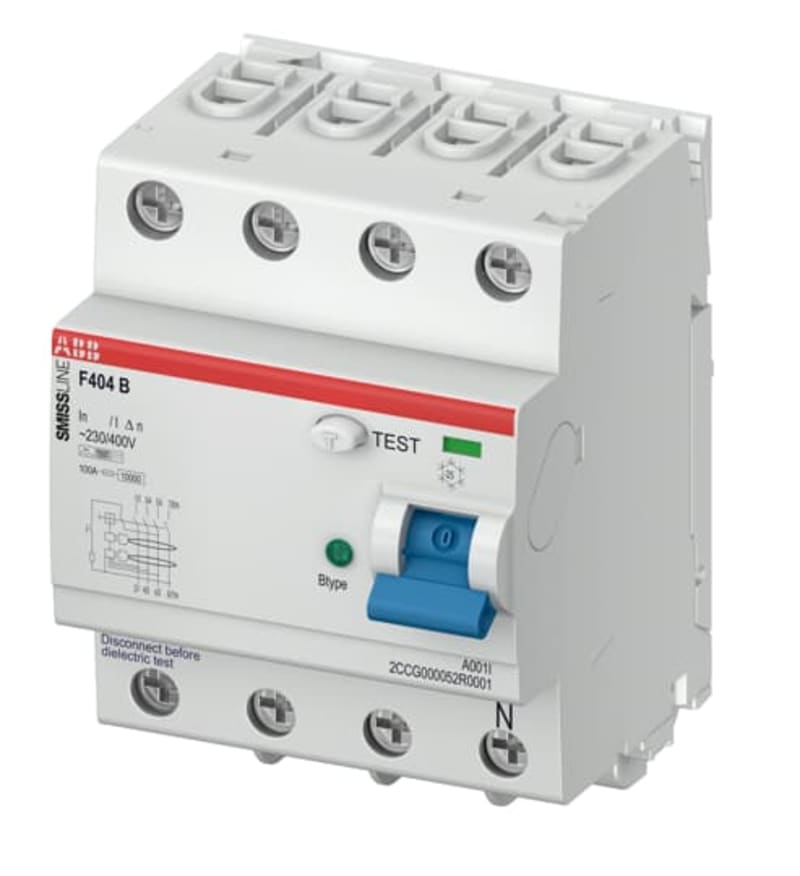

Residual Current Circuit Breaker F404 B 40A/300MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCG000056R0001 F404, 4 pole, Type B, 40A, 300mA, Smissline.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCG000056R0001
- EAN / GTIN
- 7612271506322
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 40 A
- Voltage type
- AC
- Built-in depth
- 97 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- B
- Selective protection
- No
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- Yes
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 9.6 W
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 72 mm
- Device height
- 97 mm
- Device depth
- 76 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271506322
- SAP 1200641100
- Code 83056185
Product Documentation
More from ABB
ABB
Jussi Frame 2BR. + 1DBL. Socket
2TKA000014G1
ABB
Main Circuit BREAKER S753DR-E25 SEL
2CDH783001R0252
ABB
ABB 2TKA00002905 Euro Socket Outlet 3-Way Pure Steel
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C40A 30MA APR
2CSR772440R1404
ABB
YU-C XT5 W 220..240 Vac - 220..250 Vdc
1SDA104951R1
ABB
Impressivo In. ENK Socket with Frame Aluminium
2TKA00000439
ABB

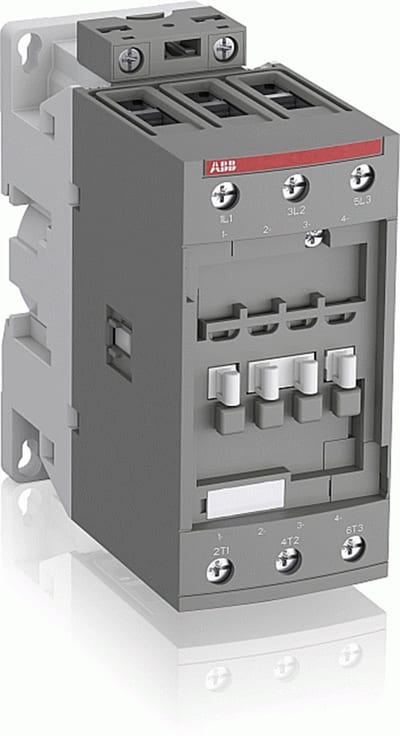

Contactor AF65-30-00-12 (AF65-30-00-12 48-130V50/60HZ-DC)
ABB

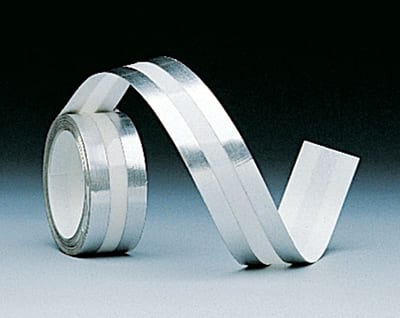

ABB Self adhesive Leak Guard sensor. Wires connected to sensor by soldering. Length 2 m. 2TKA002164G1
