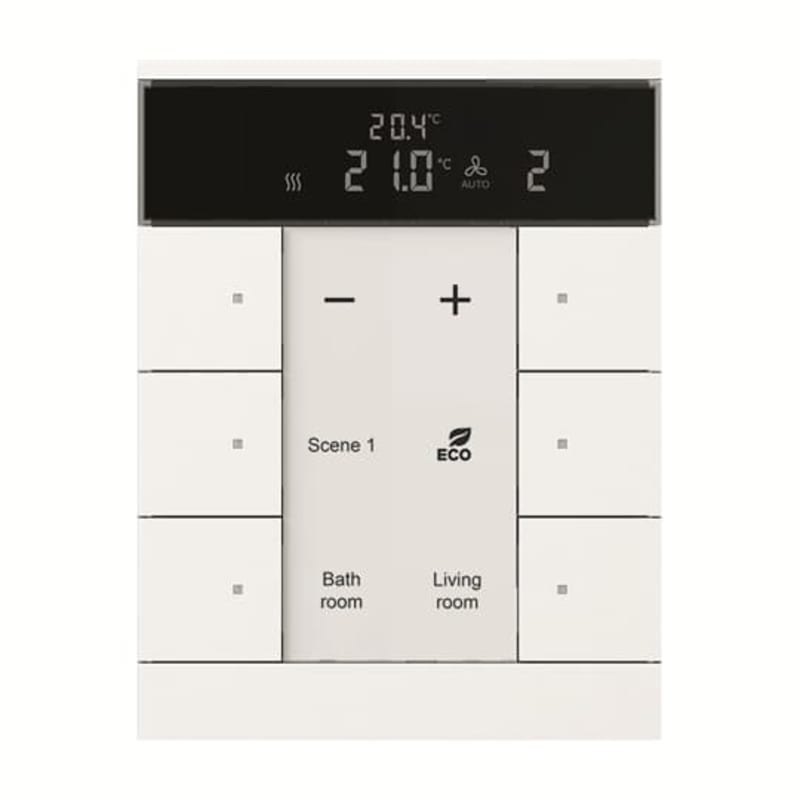

Tenton 3/6V White matt SL
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SBS/U6.0.1-884 — Freely configurable multifunction control element. Room temperature control/Controller extension with max. 6gang control with labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). With integrated temperature sensor. With actual value temperature display with display of set-value temperature. The bus can be connected via enclosed terminal block. With integrated KNX bus coupler. Number of bus subscribers: 1.
Technical Specifications
- Manufacturer part number (MPN)
- SBS/U6.0.1-884
- EAN / GTIN
- 4011395298701
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073BB9649
- Mounting Type
- Flush-mounted
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Number of LEDs
- 6
- Maximum Number of Switching Outputs
- 33
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Terminal Type
- Bus Connection
- Design Range
- Tenton
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white matt
- Product Net Width
- 90.1 mm
- Product Net Height
- 117.1 mm
- Product Net Depth / Length
- 44.2 mm
- Built-In Depth ( t 2 )
- 30.7 mm
- EPLAN Data
- 9AKK108464A1305
- Declaration of Conformity - CE
- 2CKA100000E4117
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0252
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
- UNSPSC
- 39121803
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395298701
- SAP 1200504847
- Code 82655551
Product Documentation
