Contactor AF140-30-11-13 (AF140-30-11-13 100-250V 50/60Hz / Dc)
Pricing
Request a quote
We reply within 24 hours
Product Description

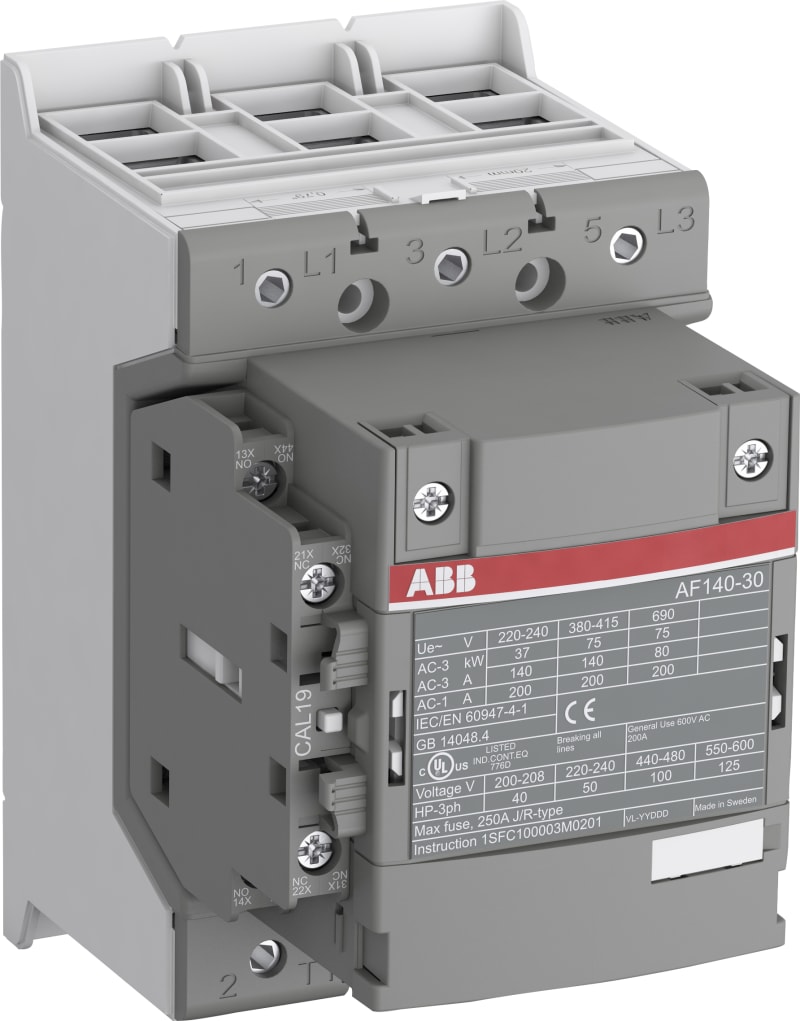

ABB AF140-30-11-13 100-250V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF140-30-11-13 100-250V 50/60Hz/DC - Contactor with terminal connection. With 1NO+1NC hj.connector.
Technical Specifications
- Manufacturer part number (MPN)
- AF140-30-11-13 100-250V 50/60Hz / DC
- EAN / GTIN
- 7320500476949
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 90 mm
- Height
- 150 mm
- Depth
- 126 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 75 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 140 A
- Rated operation current Ie at AC-1, 400 V
- 200 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 37.285 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500476949
- SAP 1000506788
- Code 8758140
Product Documentation
More from ABB
ABB
FUSE Holder E 91N/50S
2CSM202392R1801
ABB

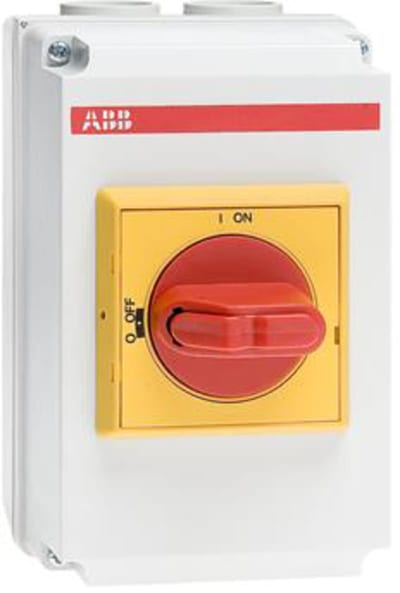

Safety Switch DC OTDCP25SA22MD
ABB
TMD 16-300 XT2 4P (1SDA067247R1)
ABB
ABB 1SDA067269R1 Thermomagnetic Release Three-POLE IN AC-DC TMG R 125-375 A XT2
ABB

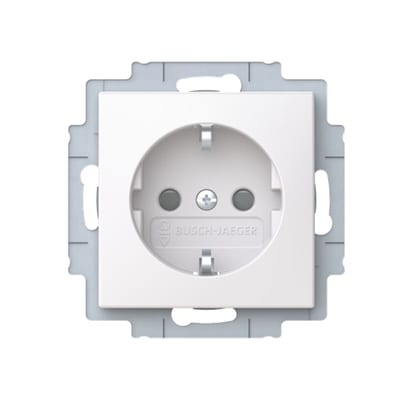

SAGA Flush Single Socket without Frame
20EUC-916
ABB

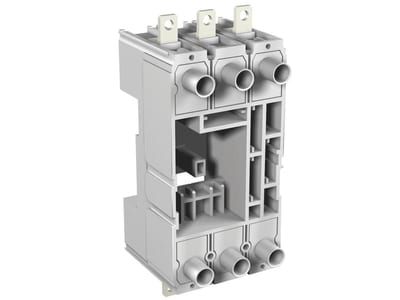

XT4 P FP, 4P EF (1SDA068198R1)
