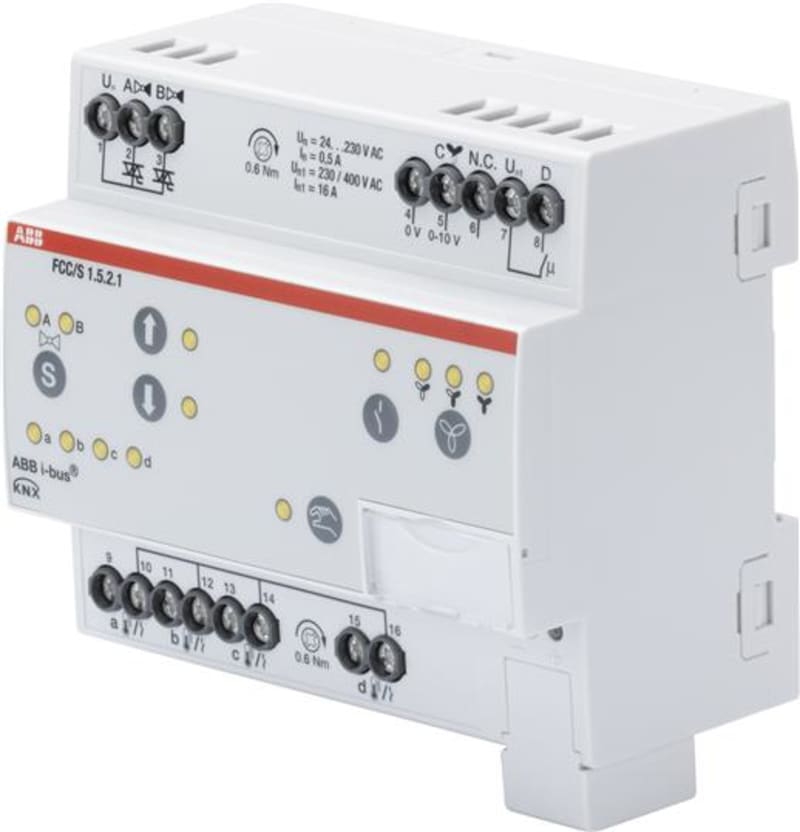

Fancoil Controller FCC/S1.5.2.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110235R0011 — For the control of fan coil units. Via two electronic outputs, two thermoelectric or one motor-driven valve drive can be controlled for heating and cooling. For the fan control the devices features an analog output for the control of a continues fan. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The FCC/S 1.5.2.1 features an easy to use manual operation.The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110235R0011
- EAN / GTIN
- 4016779011525
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941188P0002
- Wiring Diagram
- 9AKK108464A0373
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC508219D0211
- Special Functions
- Valve Protection
- Number of Outputs
- 4
- Number of Digital Inputs
- 4
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 4
- Compatible Bus Systems
- KNX (TP)
- Manipulated Variable
- Continious
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Maximum Switching Current
- 16 A
- Output Current Maximum (I out )
- 0.5 A
- Power Loss
- 3 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 6
- Product Net Width
- 105 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072026F0017
- EPLAN Data
- 9AAC189188_EPLAN
- CAD Dimensional Drawing
- 2CDC072026F0017
- CB Certificate
- 9AKK107991A3187
- Declaration of Conformity - CE
- 2CDK508229D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0672
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001586 - Heating actuator for bus system
- eClass
- V11.0 : 27143147
- UNSPSC
- 39121801
- Object Classification Code
- A
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With bus connection
- Yes
- Bus module detachable
- No
- Correcting variable consistent
- Yes
- Correcting variable switching
- Yes
- Valve protection function
- Yes
- Manual switch
- Yes
- Max. switching current (resistive load)
- 16 A
- Max. output current
- 0.5 A
- Switching voltage
- 24–230 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4016779011525
- SAP 1200146251
- Code 82180674
Product Documentation
