ABB KNX Switch Actuator 4-Channel 16 A AC1 SA/S4.16.2.2
Pricing
Request a quote
We reply within 24 hours
Product Description

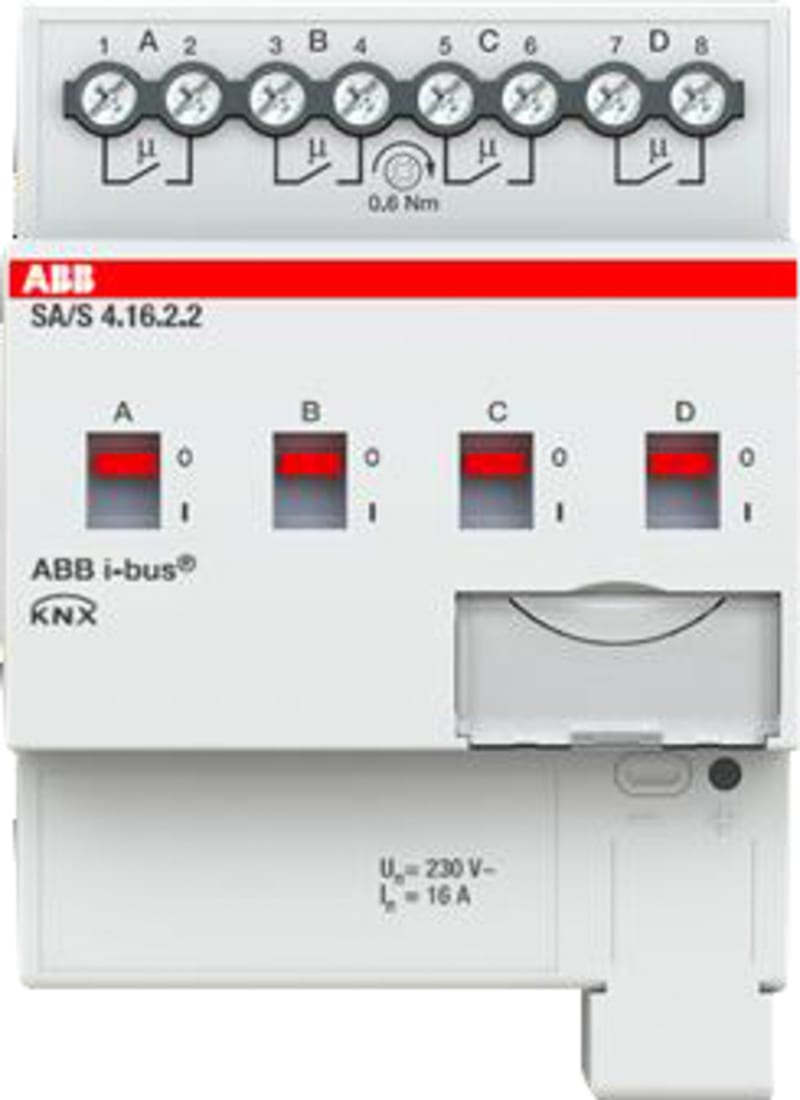

ABB SA/S4.16.2.2 is a 4-module DIN-rail KNX switch actuator with four independently controllable 16 A output contacts rated 230 V AC (AC1 load). Different phases may be connected across channels, and each output offers local manual operation with LED indication of contact state. Bus connection is via a detachable KNX interface; the device does not require an auxiliary supply.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S4.16.2.2
- EAN / GTIN
- 4016779066655
- HS code
- 8536.90
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 4
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 2500 W
- Output power
- 2500 W
- Suitable for C-load
- No
- Max. number of switching contacts
- 4
- Max. switching current
- 16 A
- Rated current
- 16 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 63.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779066655
- SAP 1200426070
- Code 82454535
Product Documentation
