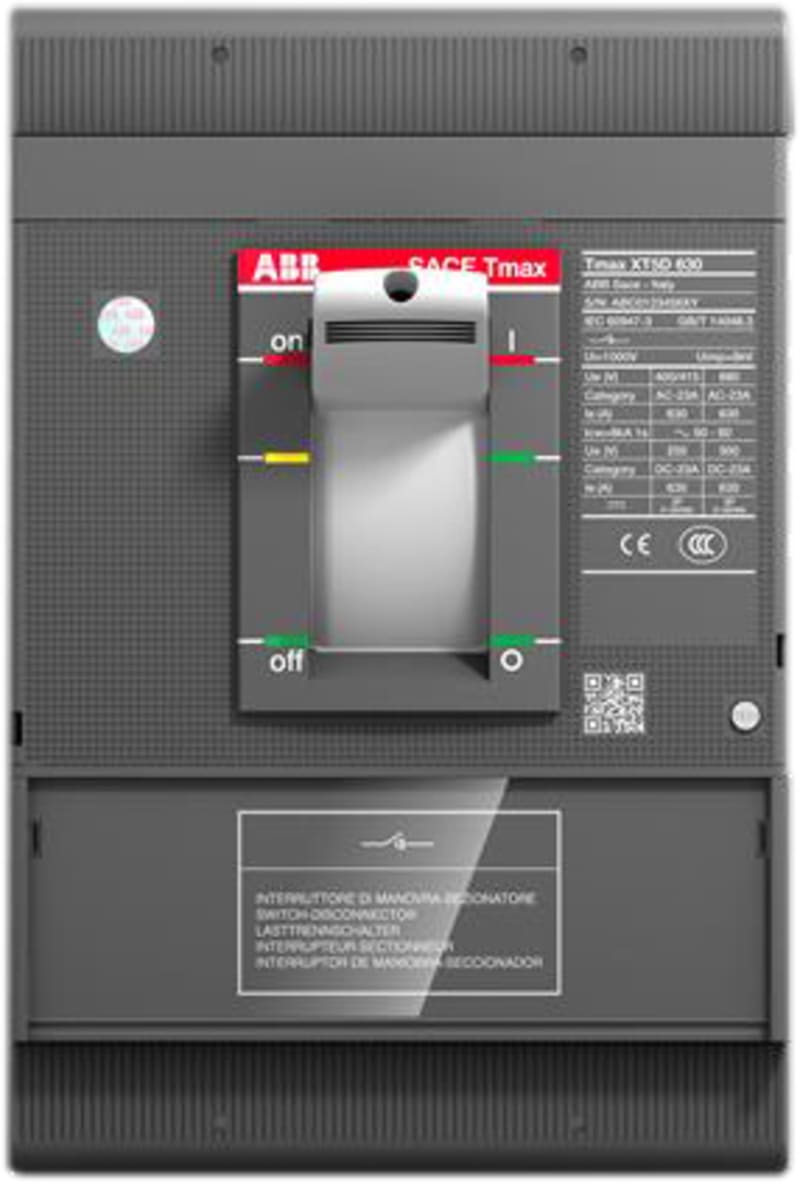

ABB 1SDA100547R1 Switch-Disconnector TMAX XT5D 630 Fixed Three-POLE WITH Front Terminals
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 1SDA100547R1 Switch-Disconnector TMAX XT5D 630 Fixed Three-POLE WITH Front Terminals is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Country of Origin: India; Product Sales Status: Active; ABB EcoSolutions: Yes; Extended Product Lifetime: Product Modularity; Environmental Information: 9AKK108467A6707.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA100547R1
- EAN / GTIN
- 8056221006231
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- ABB EcoSolutions
- Yes
- ABB Site Meeting Group Waste To Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions
- 9AKK108468A2353
- Environmental Product Declaration - EPD
- 9AKK108468A9746; 9AKK108468A1893
- Extended Product Lifetime
- Product Modularity
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 61.4 %
- Environmental Information
- 9AKK108467A6707
- Product Net Width
- 140 mm
- Product Net Height
- 205 mm
- Product Net Depth / Length
- 103.5 mm
- Product Main Type
- SACE Tmax XT
- Product Type
- Switch Disconnector
- Version
- F
- CAD Dimensional Drawing
- 1SDH002065A1115; 1SDH002065A1131
- Current Type
- AC/DC
- Electrical Durability
- 5000 cycle; 60 cycles per hour
- Mechanical Durability
- 20000 cycle; 120 cycles per hour
- Number of Poles
- 3P
- Order Multiple
- 1 piece
- Power Loss
- 143.4 W
- Rated Current (I n )
- 630 A
- Rated Impulse Withstand Voltage (U imp )
- 8 kV
- Rated Insulation Voltage (U i )
- 1000 V
- Rated Operational Current AC-23A (I e )
- (400 V) 630 A; (690 V) 630 A
- Rated Operational Voltage
- 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- 7.6 kA
- Rated Uninterrupted Current (I u )
- 630 A
- Rated Voltage (U r )
- 690 V
- Standards
- IEC60947-2
- Sub-type
- XT5
- Terminal Connection Type
- Front
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206
- Declaration of Conformity - CE
- 9AKK107680A2824
- Mechanical Drawings
- 1SDH002011A1101
- Wiring Diagram
- 1SDM000005A1001
- Instructions and Manuals
- 1SDH002011A1001
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27371403
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 8056221006231
- SAP 1200638220
- Code 83055702
