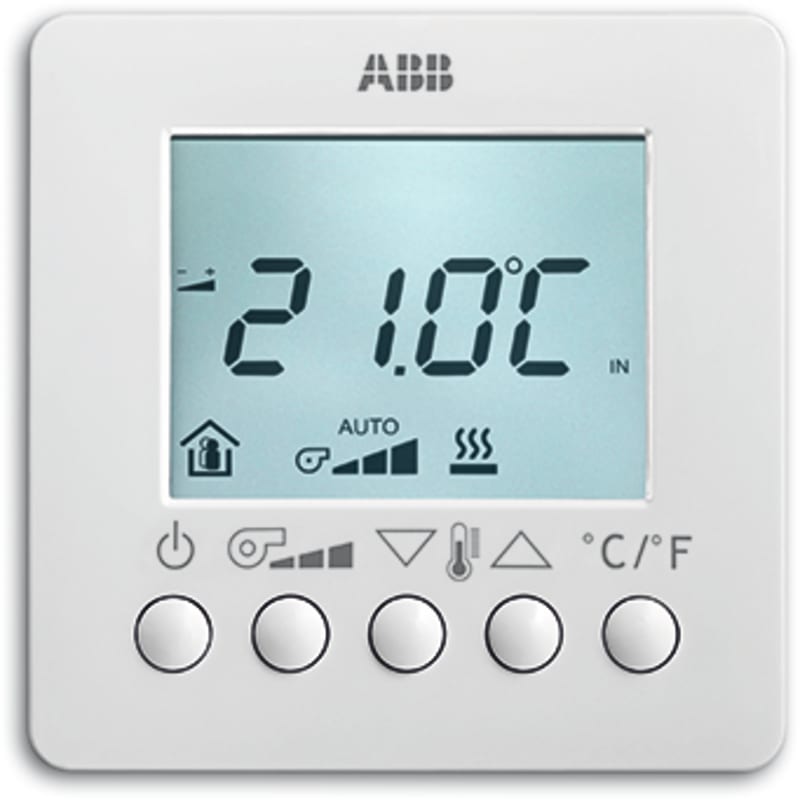

Room Thermostat 6138/11-84-500 White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006138A0003 — Control element for room temperature control with LCD and 5 operating buttons. Used for single-room temperature control in heating and air-conditioning technology. The controller is a constant room temperature controller for fan convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The room temperature controller works in both heating and cooling mode. The fan stage can be switched manually or in automatic mode. Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006138A0003
- EAN / GTIN
- 4011395116098
- Sales unit
- pcs
- Instructions and Manuals
- 2CKA000073B7263
- Mounting Type
- Surface Mounted
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA000073B9534
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Display Type
- LCD
- Screen Type
- Flat
- Terminal Type
- Screw Terminals
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white
- Product Net Width
- 81 mm
- Product Net Height
- 81 mm
- Product Net Depth / Length
- 20 mm
- Dimension Diagram
- 2CKA000097E0639
- Screen Size
- 2.52 in
- EPLAN Data
- 9AKK108464A1200
- Building Information Modeling – BIM
- 2CKA110002E4876
- Declaration of Conformity - CE
- 2CKA100000E1189
- Declaration of Conformity - UKCA
- 2CKA400000E0285
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
- UNSPSC
- 39121803
- Mounting method
- Surface mounted
- Assembly arrangement
- Control element
- Colour
- White
- Surface protection
- Untreated
- With display
- Yes
- Material quality
- Thermoplastic
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Bus system LON
- No
- With anti-theft/dismantling protection
- Yes
- Manual set point setting
- Yes
- Parallel-service possible
- Yes
- Presence button
- Yes
- With LED indication
- No
- Transparent
- No
- With local operation
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Radio frequency bidirectional
- No
- Class of the temperature control
- I
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- External sensor
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395116098
- SAP 1000464486
- Code 856055
Product Documentation
