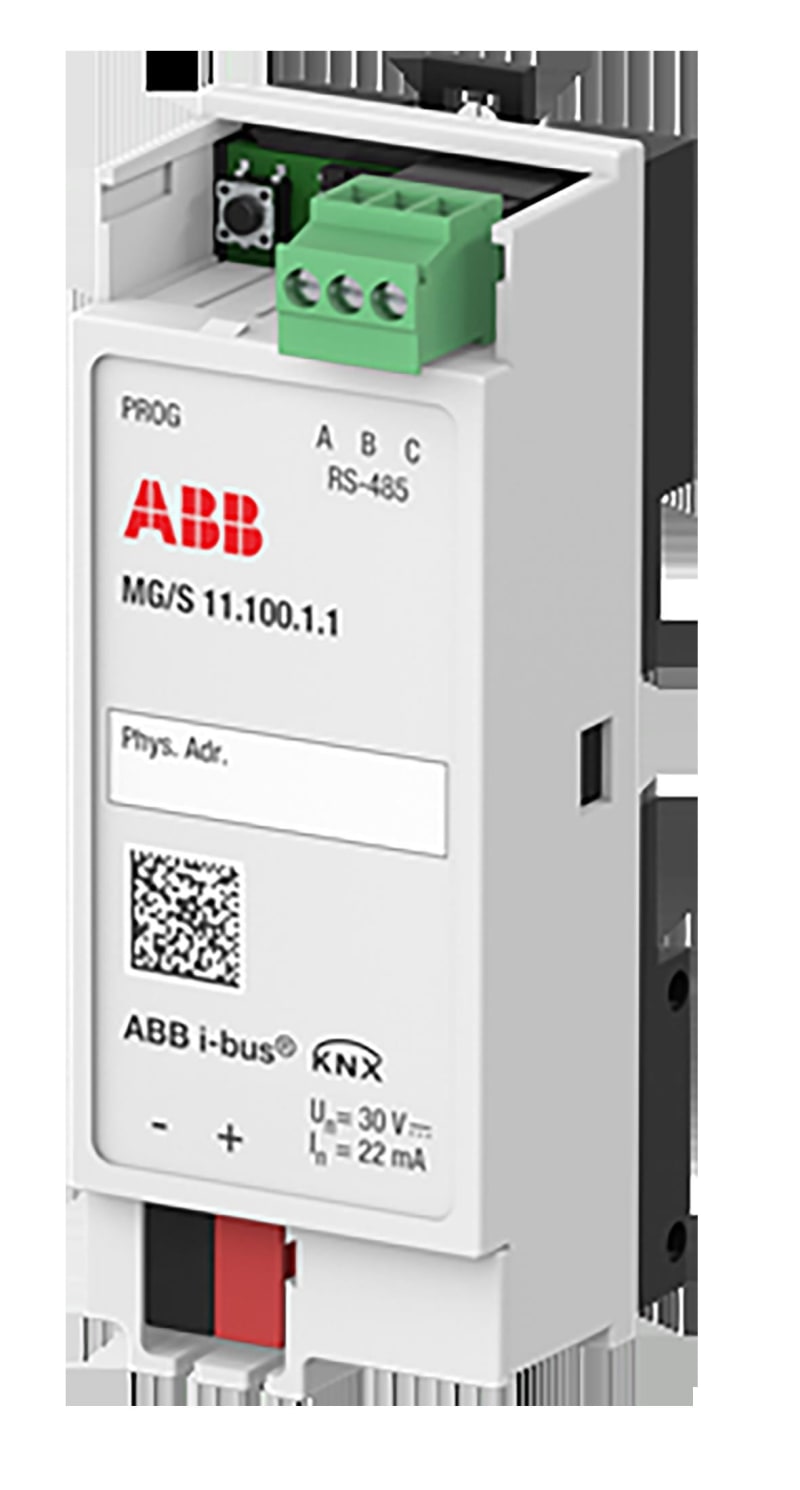

KNX-Modbus RTU Gateway 100
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG120089R0011 — The Modbus KNX Gateway integrates Modbus RTU servers devices with KNX installations at field level. The devices support standard KNX data points (DPT) and up to 100 Modbus data points. The device is put into operation with the ETS. An optional, free-of-charge ETS-App (DCA) is available to facilitate the configuration, allowing to export, and import Modbus-KNX mapping in the form of templates. Modbus templates are available for download from a database. Auxiliary voltage is not required.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG120089R0011
- EAN / GTIN
- 4013614571084
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941260P0001
- Wiring Diagram
- 9AKK108464A0439
- Mounting Type
- DIN-Rail
- Mounting Position
- any
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK108467A8179
- Number of LEDs
- 2
- Compatible Bus Systems
- Modbus; KNX (TP)
- Product Range
- KNX
- Software Updateable
- Yes
- Integrated Webserver
- No
- Manual Operation
- No
- Number of Batteries
- 0
- Power Loss
- 3 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 92 mm
- Product Net Depth / Length
- 32 mm
- Dimension Diagram
- 9AKK108464A0438
- EPLAN Data
- 9AKK108464A1050
- CAD Dimensional Drawing
- 9AKK108464A0438
- Declaration of Conformity - CE
- 9AKK108464A0431
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0715
- Declaration of Conformity - UKCA
- 9AKK108464A0465
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001099 - System interface/media gateway for bus system
- eClass
- V11.0 : 27143136
- UNSPSC
- 43222605
- IDEA Granular Category Code (IGCC)
- 6809 >> System interface/media gateway for bus system
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Bus system LON
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4013614571084
- SAP 1200686955
- Code 83149536
Product Documentation
More from ABB
ABB
Cover ZX575 for mlerfelt
2CPX077497R9999
ABB
ABB S204-C100 Miniature Circuit Breaker — 4P, Type C, 100 A, 6 kA
ABB
Tenton 3/6V Black MATT SL
SBS/U6.0.1-885
ABB
MBZ 160 (2CPX041820R9999)
ABB

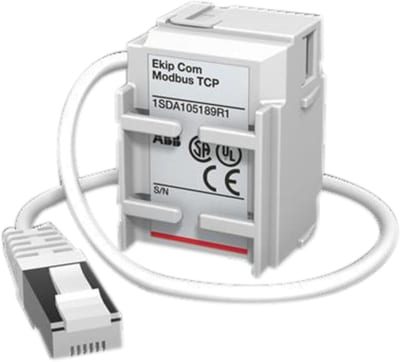

EKIP COM STA Modbus RS-485 XT5 INT F/P
1SDA105193R1
ABB

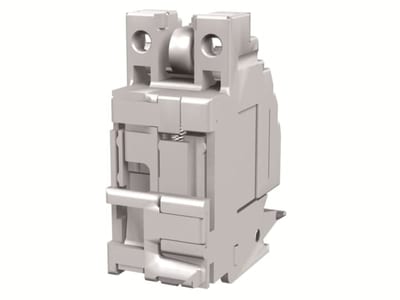

UVR XT1..XT4 24-30 Vac/dc
1SDA066389R1
ABB

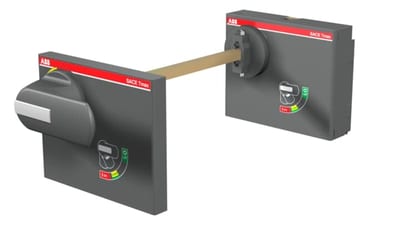

ABB 1SDA104851R1 Handle FOR Adjustable Depth Rotary Handle FOR C.BREAKER Fixed-PLUG-IN-Withdrawable XT5
ABB

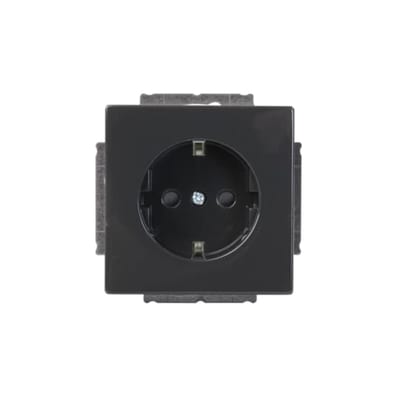

Impressivo In. ENK Socket without Frame Anthracite
