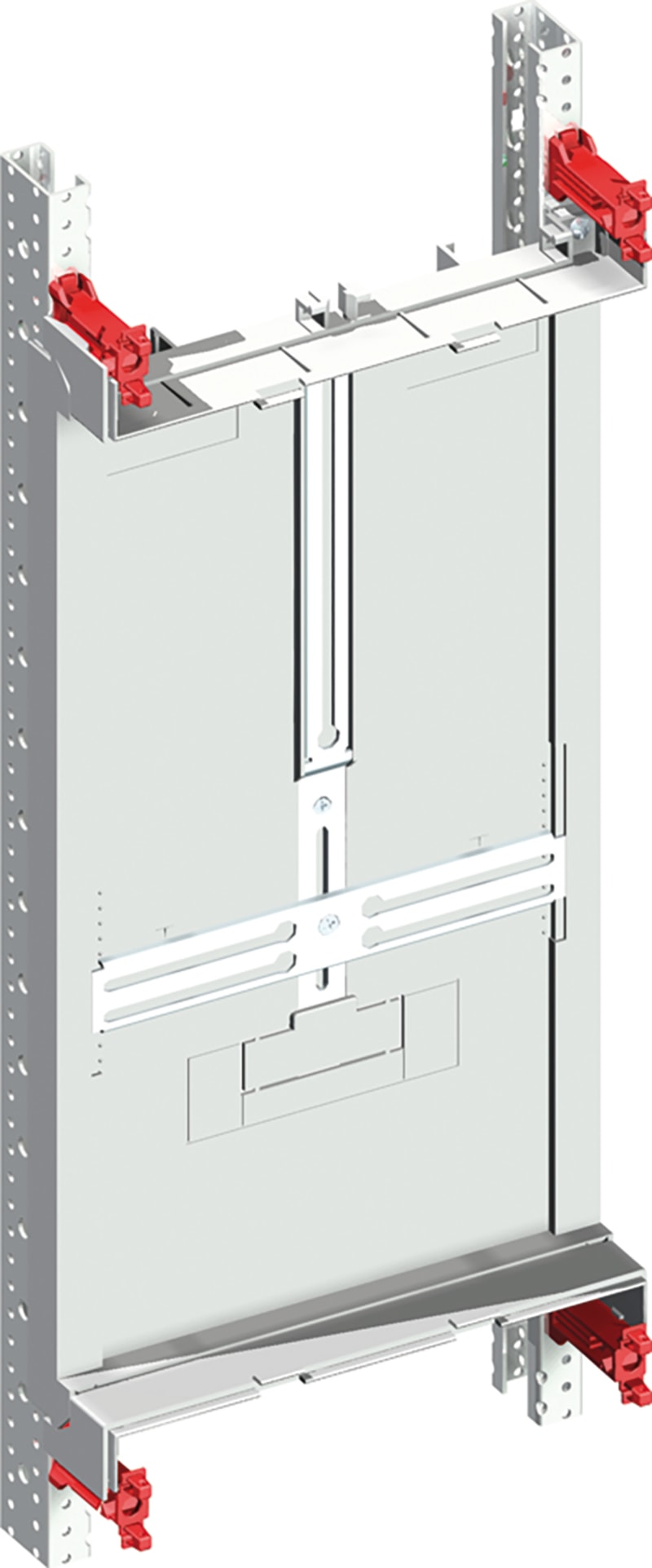

MBZ 160 (2CPX041820R9999)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX041820R9999 — Interior fitting module, CombiLine, Flatpack (unmounted), for Meter device with 3 point fixing, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usable as of the cabinet depth of 225 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX041820R9999
- EAN / GTIN
- 4011617418207
- Sales unit
- pcs
- Model Number
- 1-story
- Number of Phases
- 3-phase
- Number of Panel Heights
- 3
- Number of TSG Panels
- 0
- Enclosure Mounting Frame
- WR
- Enclosure Type
- Interior fitting module
- Enclosure Type of Height
- 00
- Protection Type
- None
- Accessories Available
- Yes
- DIN Place Units
- 36
- Meter Boards
- 0
- Module Function
- Meter device with 3 point fixing
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- 400 V
- Rated Insulation Voltage (U i )
- 690 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- RAL Number
- RAL 7035 - Light Grey
- Color
- Light grey
- Number of Modules
- 36
- Product Net Width
- 250 mm
- Product Net Height
- 450 mm
- Product Net Depth / Length
- 225 mm
- Section Width
- 1
- Built-In Depth ( t 2 )
- 225 mm
- EPLAN Data
- 9AAF623208_EPLAN
- Declaration of Conformity - CE
- 2CPC100019X0201
- Instructions and Manuals
- 2CPC112319M5601
- ETIM 9
- EC000068 - Meter board
- eClass
- V11.0 : 27142417
- Object Classification Code
- U
- Standards
- DIN EN 61439-3; DIN EN 61439-2
- Colour
- Grey
- Width
- 250 mm
- Height
- 450 mm
- Depth
- 225 mm
- Protection
- None
- Extension piece
- No
- Suitable for power circuit breaker
- No
- With slot for fuses
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4011617418207
- SAP 1200432881
- Code 82461255
