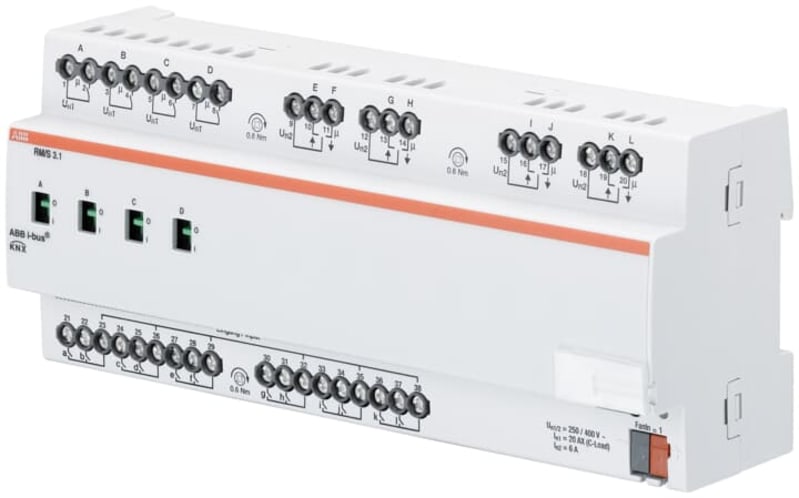

ABB Device to control of apartment ranges, typically in hotels and small apartments. 12 inputs, 4 outputs and 4 shutter outputs or 8 outputs. 2CDG110165R0011
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110165R0011 — Device to control of apartment ranges, typically in hotels and small apartments. 12 inputs, 4 outputs and 4 shutter outputs or 8 outputs.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110165R0011
- EAN / GTIN
- 4016779881067
- Sales unit
- pcs
- Instructions and Manuals
- 2CDC514065D0201
- Wiring Diagram
- 2CDC072044F0412
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC514088D0201
- Number of Outputs
- 8
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 12
- Number of Input Channels
- 12
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Output Voltage (U out )
- 230 V AC
- Maximum Switching Current
- 20 A
- Power Loss
- 5.15 W; Total 5 W
- Color
- white
- Width in Number of Modular Spacings
- 12
- Product Net Width
- 216 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072028F0017
- EPLAN Data
- 9AAC189159_EPLAN
- Declaration of Conformity - CE
- 2CDK514086D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0726
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001584 - I/O device for bus system
- eClass
- V11.0 : 27143145
- UNSPSC
- 39122221
- Object Classification Code
- A
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Mounting method
- DRA (DIN-rail adaptor)
- Local operation/hand operation
- Yes
- With bus connection
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779881067
- SAP 1000407947
- Code 81094948
Product Documentation
