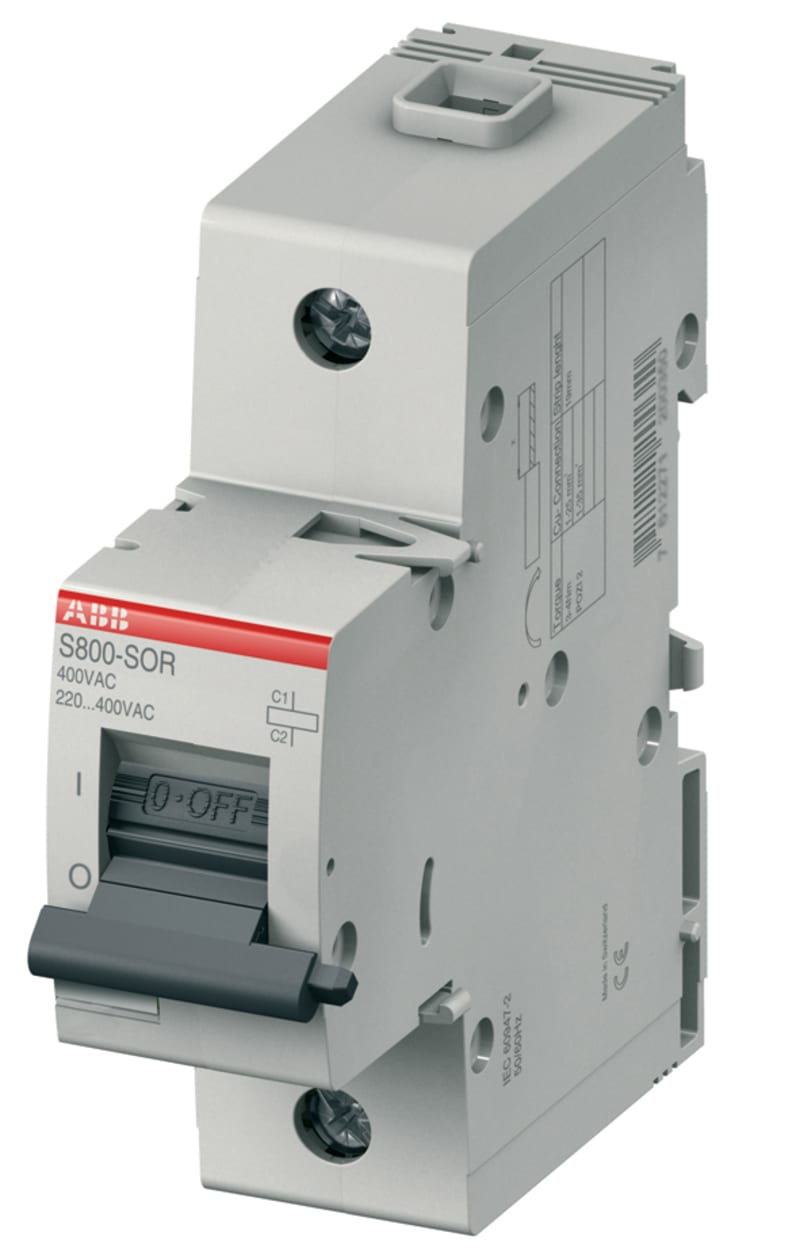

Arbeids-Currenttrigger 12V AC/DC S800
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCS800900R0201 — The S800-SOR12 is a 12V shunt opening release is for remote release of the S800 High Performance MCB using an electrical impulse. Operation of the trigger is guaranteed at a voltage between 70% and 110% of the rated voltage Un - both for AC and DC. The S800-SOR12 can be mounted by the user at the left side of S800 High Performance MCB.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCS800900R0201
- EAN / GTIN
- 7612271212070
- Sales unit
- pcs
- Voltage
- 12 V
- Suitable For
- S800P; S800S; S800N; S800C; S800B; S800HV; S800U; S800PV-SP; S800PV-SD; S800PV-M-H
- Tightening Torque
- 3.5 N·m
- Actuator Marking
- I / O
- Recommended Screw Driver
- Pozidriv 2
- Connecting Capacity
- Flexible 1 ... 25 mm²; Stranded 1 ... 35 mm²
- Terminal Type
- Screw Terminals
- Rated Operational Voltage
- 12 V AC/DC
- Rated Insulation Voltage (U i )
- 690 V AC
- Rated Control Supply Voltage (U s )
- (50 Hz) 12...12 V; (50 Hz) 12...12 V; (60 Hz) 12...12 V; (60 Hz) 12...12 V; (DC) 12...12 V; (DC) 12...12 V
- Rated Frequency (f)
- 50...60 Hz
- Power Loss
- Total 15.5 W
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 1
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -40 ... +70 °C
- Degree of Protection
- acc. to IEC 60529 IP20
- Environmental Information
- 2CCY413207D0203
- Product Net Width
- 27 mm
- Product Net Height
- 95 mm
- Product Net Depth / Length
- 82.5 mm
- Dimension Diagram
- 2CCC413003C0201
- EPLAN Data
- 9AAC212941_EPLAN
- Declaration of Conformity - CE
- 9AKK108472A2536
- Instructions and Manuals
- 9AKK106930A3418
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- Any
- ETIM 9
- EC001023 - Shunt release (for power circuit breaker)
- UNSPSC
- 39121601
- eClass
- V11.0 : 27370418
- IDEA Granular Category Code (IGCC)
- 4879 >> Shunt release (for power circuit breaker)
- Object Classification Code
- F
- Standards
- IEC/EN 60947-2
- Suitable for off-load switch
- No
- Suitable for overload relay
- Yes
- Type of electric connection
- Screw connection
- Rated control supply voltage AC 50 Hz
- 12 V
- Rated control supply voltage AC 60 Hz
- 12 V
- Rated control supply voltage DC
- 12 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
- Number of contacts as normally open contact
- 1
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 7612271212070
- SAP 1200641809
- Code 83054291
Product Documentation
