Voltagesfors 640MA with Diagn
Pricing
Request a quote
We reply within 24 hours
Product Description

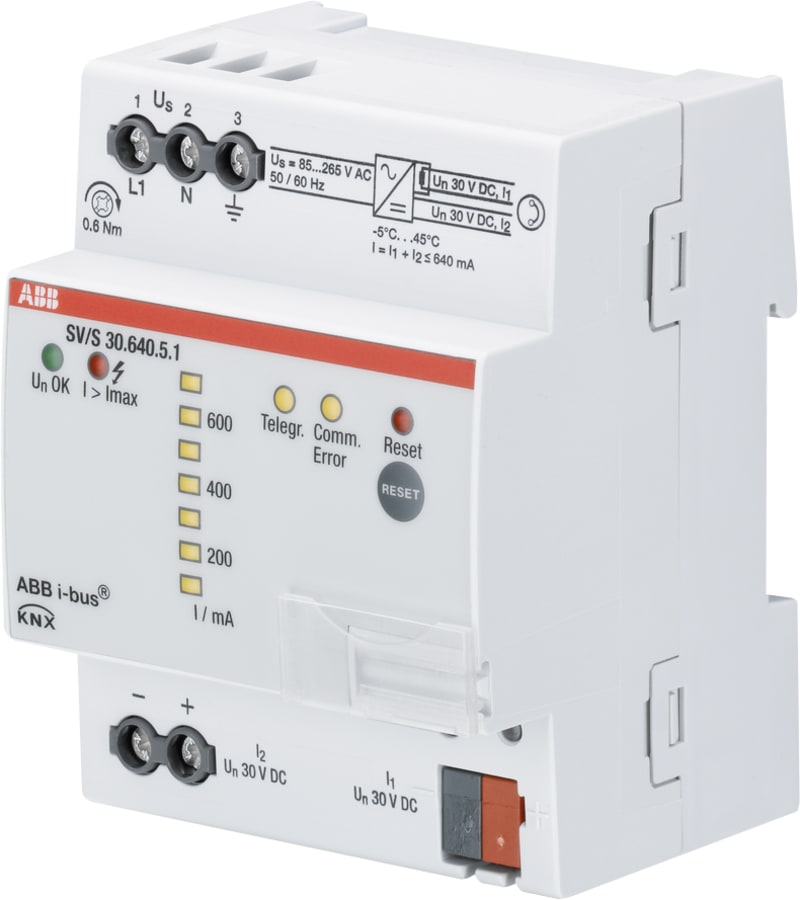

ABB SV/S30.640.5.1 — Compact Power Supply 640 mA with integrated choke. Quick diagnostics by LED display and ETS communication objects. Analysis of the operating state and the bus line possible by means of ABB i-bus tool. Additional voltage output to supply an additional line in conjunction with an additional choke.
Technical Specifications
- Manufacturer part number (MPN)
- SV/S30.640.5.1
- EAN / GTIN
- 4016779866699
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941089P0004
- Wiring Diagram
- 9AKK108464A0293
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC501052D0201
- Number of Outputs
- 2
- Number of LEDs
- 1
- Number of Integrated Chokes
- 1
- Number of Supplied Lines
- 2
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Voltage Range
- 110 ... 230 V AC
- Output Voltage (U out )
- 30 V DC
- Buffer Voltage
- No
- Output Current Maximum (I out )
- 0.64 A
- Power Loss
- 9 W; Total 9 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189144_EPLAN
- CB Certificate
- 9AKK107991A3200
- Declaration of Conformity - CE
- 2CDK501053D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0778
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0115
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000675 - Power supply for bus system
- eClass
- V11.0 : 27143114
- UNSPSC
- 39121004
- IDEA Granular Category Code (IGCC)
- 4127 >> Power supply units
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Number of integrated choke coils
- 1
- Number of lines to feed
- 2
- Max. output current
- 640 mA
- Secondary voltage
- 30 V
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- Bus voltage stockable
- No
- Other bus systems
- None
- Bus system LON
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4016779866699
- SAP 1000505484
- Code 8751901
Product Documentation
More from ABB
ABB
ABB 2CDL803141R1024 Busbar for DSN201E, 3 phases, 10mm², 24 PINs
ABB
ABB 1SDA066655R1 LOW Terminal-Covers Three-POLE 2PCS XT1
ABB
SAGA Switch 2 Flush 2-Pole with Frame
2TKA00004990
ABB
ABB S202M-D20 Miniature Circuit Breaker — 2P, Type D, 20 A, 10 kA
ABB
ABB SACE Tmax XT4S 250 Moulded-Case Circuit Breaker — Ekip LS/I, In=250 A, 3-Pole
XT4S 250 Ekip LS/I In=250A 3p F F
ABB
ABB S402-D10 Miniature Circuit Breaker — 2P, Type D, 10 A, 10 kA
2CCS572001R0101
ABB

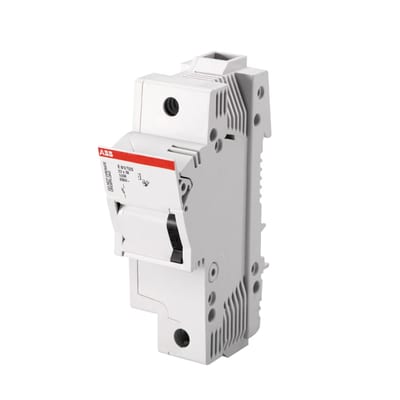

FUSE Holder E 91/125
