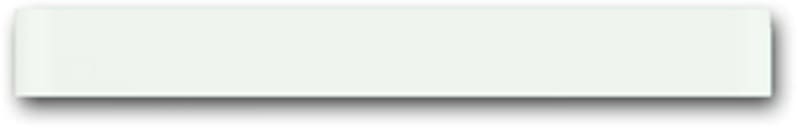

Upper trim strip with sensor PriOn
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006310A0182 — Bottom end strip for installation on 1gang to 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101) Provides the measured value for the 8.89 cm display (6344-xxx-101) or room temperature controllers 6124-xxx-10x, 6128-xxx-10x, 6108/0x and 6351/08-xxx via the integrated temperature sensor. Not combinable with flush-mounted actuators (6354 U, 6355 U, 6356 U, and 6920/40). Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006310A0182
- EAN / GTIN
- 4011395156896
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Modular Components Included
- Accessory Cover
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA000073B7389
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Design Range
- priOn
- Color
- white glass
- Product Net Width
- 107 mm
- Product Net Height
- 12 mm
- Product Net Depth / Length
- 16 mm
- Dimension Diagram
- 2CKA000097E0658
- Declaration of Conformity - CE
- 2CKA100000E1505
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000926 - Physical sensor for bus system
- eClass
- V11.0 : 27143137
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395156896
- SAP 1000518485
- Code 8833539
Product Documentation
