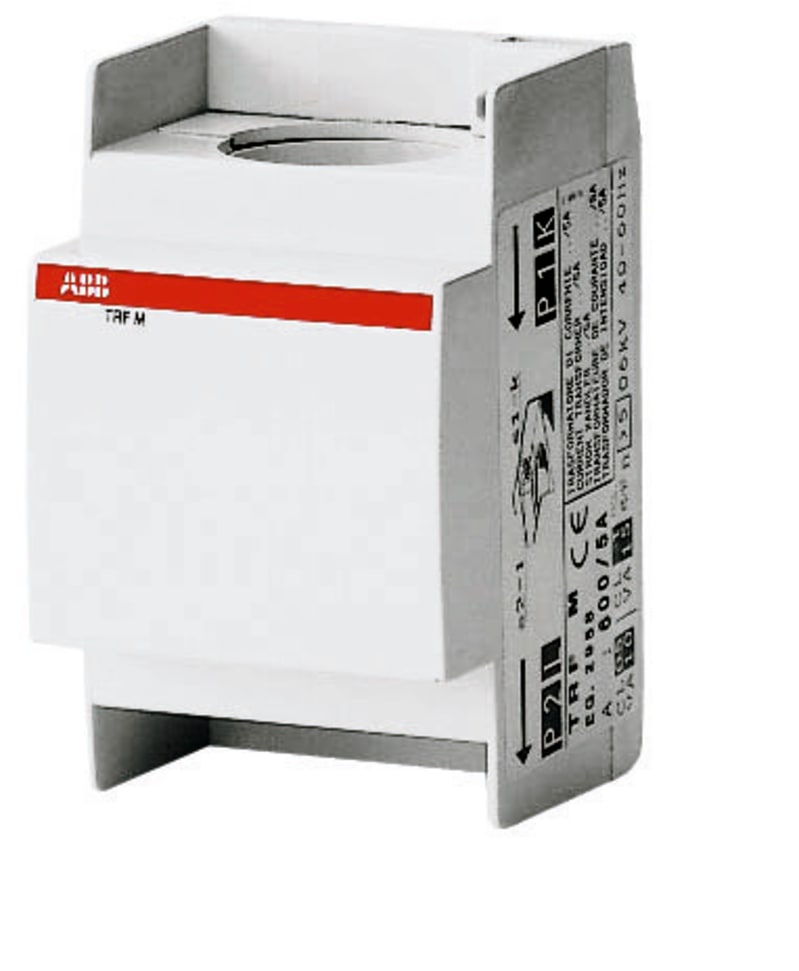

Modular Current Transformer TRFM/150
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM100100R1111 — Used to transform primary currents into …/5 A low secondary currents indirectly supplying power to analogue and digital measurement instrument devices. They have through primary and modular case and DIN rail fasten system.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM100100R1111
- EAN / GTIN
- 8012542047209
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Current Rating
- 150 A
- Rated Primary Current (I pn )
- 150 A
- Rated Secondary Current (I sn )
- 5 A
- Current Limit Function
- FS 5
- Apparent Power Output
- 10 V·A
- Secondary Output Connection
- Plug-in connection
- Model Number
- Through-feed current converter
- Number of Inputs
- Primary 1
- Degree of Protection
- IP20
- Environmental Information
- See RoHS Information
- Product Net Width
- 0.065 m
- Product Net Height
- 0.075 m
- Product Net Depth / Length
- 0.100 m
- Bore Diameter
- 30 mm
- Declaration of Conformity - CE
- 9AKK106713A5716
- EU Data Act Compliance Declaration
- Not applicable
- Mounting Type
- DIN-Rail
- ETIM 9
- EC002048 - Current transformer
- eClass
- V11.0 : 27210902
- Object Classification Code
- T
- Model
- Through-feed current converter
- Rated secondary apparent power
- 10 VA
- Accuracy class
- 0.5
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- Yes
- Height opening
- 29 mm
- Width opening
- 29 mm
- Opening diameter
- 30 mm
- Snap mounting
- Yes
- With copper rail
- Yes
- Number of primary inputs
- 1
- Secondary connection
- Plug-in connection
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8012542047209
- SAP 1200640248
- Code 83057445
Product Documentation
