3V Switch Prion 6342-811-101-500
Pricing
Request a quote
We reply within 24 hours
Product Description

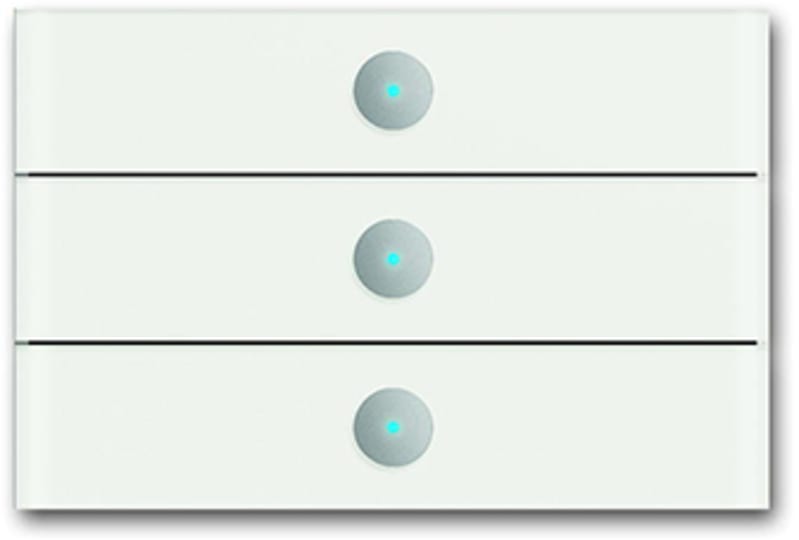

ABB 2CKA006310A0172 — Free programmable multi-function control element. For installation in the 1gang, 2gang and 3gang support frame (6346/10-101, 6346/11-101 and 6346/12-101) Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. The accompanying symbol can be replaced by the symbols for lighting (6353/20-xxx), blinds (6353/30-xxx), Thermostat (6353/40-xxx) and scene (6353/50-xxx). For the setting and control of the RTR functions and texts of the display RTR, IR, and proximity sensor end strip (6351/0x-821).
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006310A0172
- EAN / GTIN
- 4011395156780
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001373B8687
- Number of Buttons
- 3
- Number of Actuation Points
- 3
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Design Range
- priOn
- Surface Finishing
- Glossy; Untreated
- Material
- Glass
- Color
- white
- Product Net Width
- 107 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 15 mm
- Built-In Depth ( t 2 )
- 33 mm
- Dimension Diagram
- 2CKA000097E0652
- Declaration of Conformity - CE
- 2CKA100000E1499
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000672 - Touch sensor for bus system
- eClass
- V11.0 : 27143138
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395156780
- SAP 1000407953
- Code 8484821
Product Documentation
