Changeover switch OT250E04CP

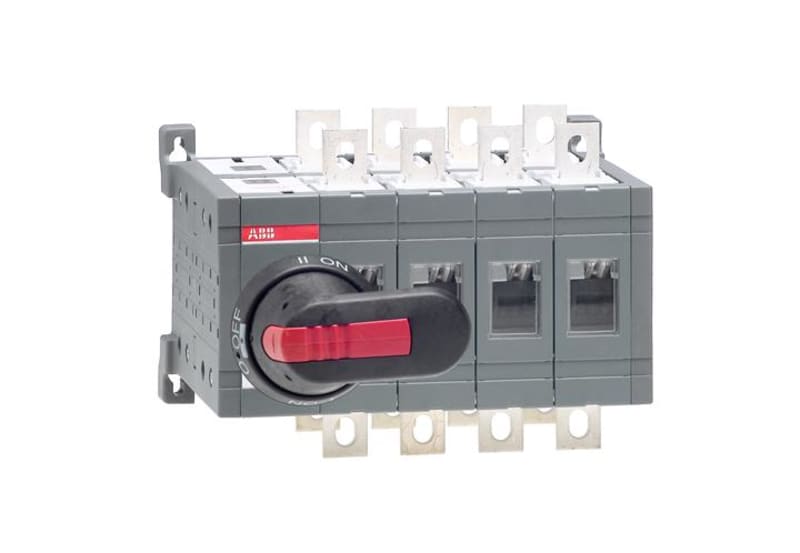

ABB OT250E04CP — 250A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.

Manufacturer part number (MPN)

OT250E04CP

EAN / GTIN

6417019252384

Sales unit

pcs

End Of Life Disassembling Instructions

1SCC303050M0201

Environmental Information

1SCC303050D0201

Environmental Product Declaration - EPD

1SCC303082D0201

Degree of Protection

Front IP20

Pollution Degree

3

Product Net Width

205 mm; 8.07 in

Product Net Height

150 mm; 5.91 in

Product Net Depth / Length

160 mm; 6.3 in

Conventional Free-air Thermal Current (I th )

Θ = 40 °C 250 A

Conventional Thermal Current (I the )

Fully Enclosed 250 A

Distance Between Phases

Standard

Fourth Pole Position

Right Side

Fourth Pole Type

Switched - Simultaneous Function

Handle Color

Black

Mounting Type

Base mounting

Number of Poles

4P

Operating Mode

Front

Position of Line Terminals

Top In - Bottom Out, Bottom In - Top Out

Power Loss

at Rated Operating Conditions per Pole 6.5 W

Rated Impulse Withstand Voltage (U imp )

12 kV

Rated Insulation Voltage (U i )

1000 V

Rated Operational Current AC-21A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 250 A; (500 V) 250 A; (690 V) 250 A

Rated Operational Current AC-31B (I e )

(380 ... 415 V) 250 A

Rated Operational Current AC-33B (I e )

(380 ... 415 V) 250 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 140 kW; (500 V) 170 kW; (690 V) 250 kW

Rated Operational Voltage

Main Circuit 1000 V

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 8 kiloampere rms

Switches Operating Mechanism

Mechanism at the End of the Switch; 04 (Left Side)

Terminal Type

Screw Terminals

Terminal Width

20 mm

Tightening Torque

acc. IEC 60947-1 15 ... 22 N·m

Transition Type

Open

Declaration of Conformity - CE

1SCC303001D2704

DNV Certificate

1SCC303138D0201

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122233

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3641528

E-Number (Norway)

4337075

HS Code

8536.50

• EAN 6417019252384
• SAP 1200629039
• Code 83036003
