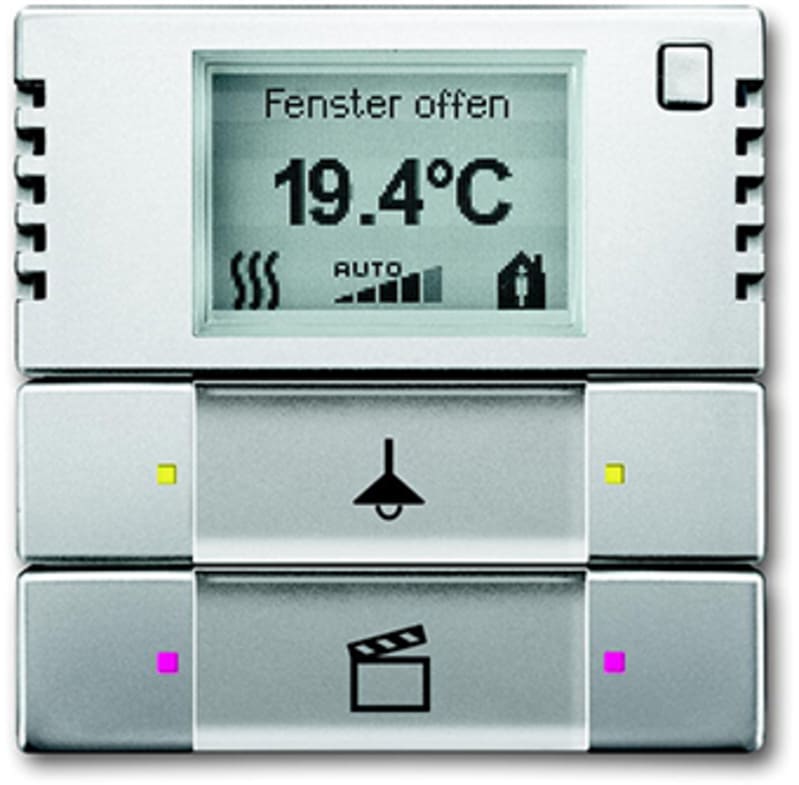

Solo Term 2/4V 6128/28-866-500
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006134A0335 — With labelling field. For ABB i-bus® KNX bus coupler 6120/12-101, 6120/13. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Rocker switch left/right (switching/dimming/blind/value sender/light scenes/fan function). Master/slave configuration. With base-load operation. The controller is a constant room temperature controller for fan convectors (fan coils) in 2-pipe and 4-pipe systems and conventional heating or cooling systems. The fan stage can be switched manually or in automatic mode. Transparent labelling sheet with standard symbols included in delivery. Incl. 5 logic channels (logic gates, gates, delay and staircase lighting) Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006134A0335
- EAN / GTIN
- 4011395213858
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Modular Components Included
- Cover Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Temperature Class Default
- I
- Data Sheet, Technical Information
- 2CKA001373B8806
- Number of LEDs
- 1
- Number of Digital Inputs
- 0
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Connection Type
- Pin
- Display Type
- LCD
- Screen Type
- Flat
- Design Range
- Pure Stainless Steel
- Surface Finishing
- Lacquered; Matt
- Material
- Plastic; Thermoplastic
- Color
- stainless steel
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 32 mm
- Built-In Depth ( t 2 )
- 22 mm
- Screen Size
- 1.57 in
- Declaration of Conformity - CE
- 2CKA100000E1155
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0086
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001101 - Room temperature controller for bus system
- eClass
- V11.0 : 27143133
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395213858
- SAP 1000759994
- Code 8526652
