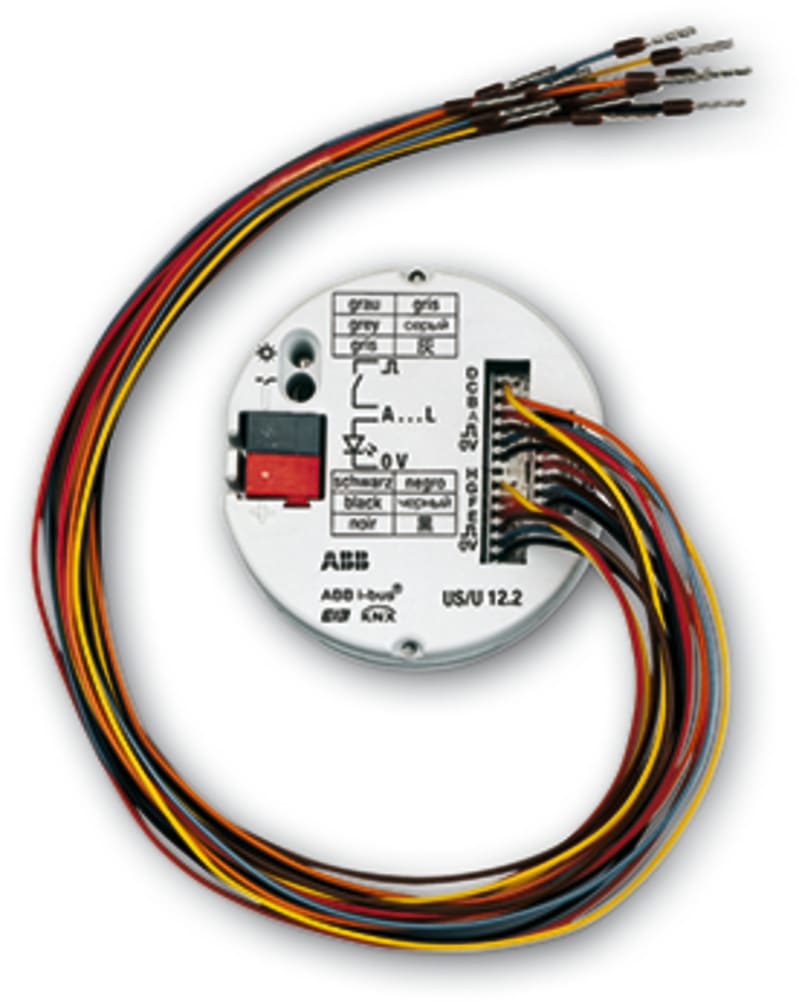

UNIV.SWITCHGR.US/U12.2 (pille) (us/U 12.2)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB US/U 12.2 — The Universal Interface has 12 channels which can be parameterised as inputs or outputs, e.g. for connection of conventional push-buttons or LEDs. The LEDs are supplied by the device (1.5 mA), the series resistances are integrated.
Technical Specifications
- Manufacturer part number (MPN)
- US/U 12.2
- EAN / GTIN
- 4016779650120
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Degree of Protection
- IP20
- Environmental Information
- www.abb.com/knx
- Number of LEDs
- 1
- Number of Digital Inputs
- 12
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Input Voltage Type
- Pulsed
- Power Loss
- Total 0.25 W
- Product Net Width
- 54 mm
- Product Net Height
- 54 mm
- Product Net Depth / Length
- 19 mm
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- 2025 Applicable - Compliant
- eClass
- 70
- Object Classification Code
- A
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Mounting method
- Flush-mounted
- With bus connection
- Yes
- LED controlling
- Yes
- With LED indication
- Yes
- Local operation/hand operation
- No
- Number of input channels
- 12
- Number of switch inputs
- 12
- Number of inputs
- 12
- Max. switching current
- 0.02 A
- Switching current (resistive)
- 0.02 A
- Max. switching power
- 0.06 VA
- Suitable for C-load
- No
- Number of output channels
- 12
- Max. number of switching contacts
- 12
- With switch function
- Yes
- External signal voltage necessary
- Yes
- Different phases connectable
- Yes
- Type of current
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779650120
- SAP 1000464421
- Code 8745121
