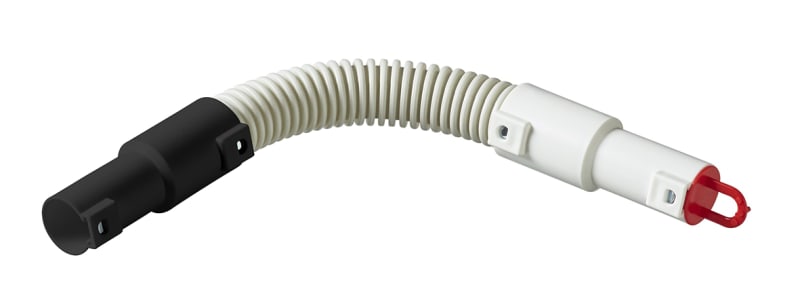

Endecoupling AJF5.20MM Flexible
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TKA00004194 — The flexible conduit end piece AJF5.20 is primarily used for termination of plastic conduits in concrete casting, but it can also be used in many other applications, for example, as a flexible conduit extension, when going around rebars in concrete elements or cast-in-situ structures._x000D_ The other end of the product is color coded to black, indicating that the conduit is connected to electric box at back surface of the wall element. The trunking is continued with a conduit of the same size._x000D_ A red plug is supplied with each conduit end piece (only in other side). The plug protects the conduit from dirt, concrete and foreign particles. Made of halogen free material (IEC/61249-2-21).
Technical Specifications
- Manufacturer part number (MPN)
- 2TKA00004194
- EAN / GTIN
- 6438199008134
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Surface Finishing
- Uncoated; Untreated
- Material
- Plastic; Polyethylene (PE)
- Environmental Information
- 9AKK107991A0762
- Product Net Width
- 0.03 m
- Product Net Height
- 0.032 m
- Product Net Depth / Length
- 0.03 m
- Dimension Diagram
- 9AKK108469A7639
- Declaration of Conformity - CE
- 9AKK108469A2510
- ETIM 9
- EC000937 - Terminal sleeve for installation tubes
- Material quality
- Polyethylene (PE)
- Quality of surface coating
- Uncoated
- Surface polished
- No
- Surface brushed
- No
- Halogen free
- Yes
- Model
- Plug-in
- Separable
- No
- For nominal tube diameter
- 20 mm
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 6438199008134
- SAP 1200478761
- Code 82625374
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C40 APR300MA
2CSR275480R3404
ABB
Meter 3F A44 212-100
2CMA170534R1000
ABB

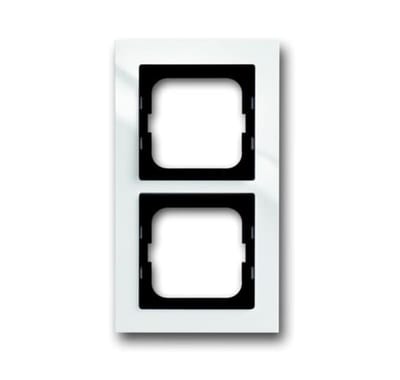

ABB 2CKA001754A4332 for vertical or horizontal installation.
ABB
Meter 1F A41 312-100
2CMA170503R1000
ABB

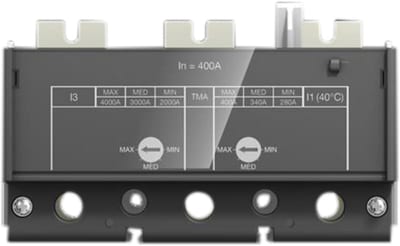

ABB 1SDA100631R1 Thermomagnetic Release Three-POLE IN AC-DC TMG R 630 I3=1575...3150 XT5
ABB
ABB S402-C20 Miniature Circuit Breaker — 2P, Type C, 20 A, 10 kA 2CCS572001R0204
ABB

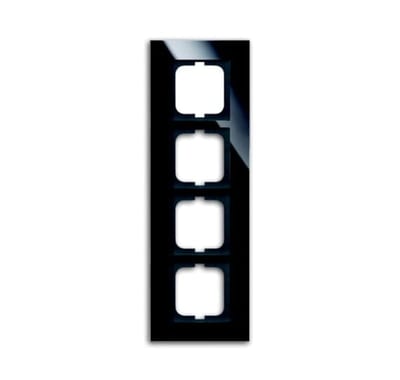

ABB 2CKA001754A4325 for vertical or horizontal installation.
ABB

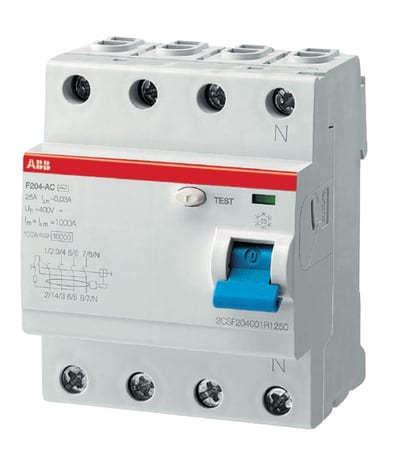

Residual Current Circuit Breaker F204A 63A/500MA 16-2A/3HZ
