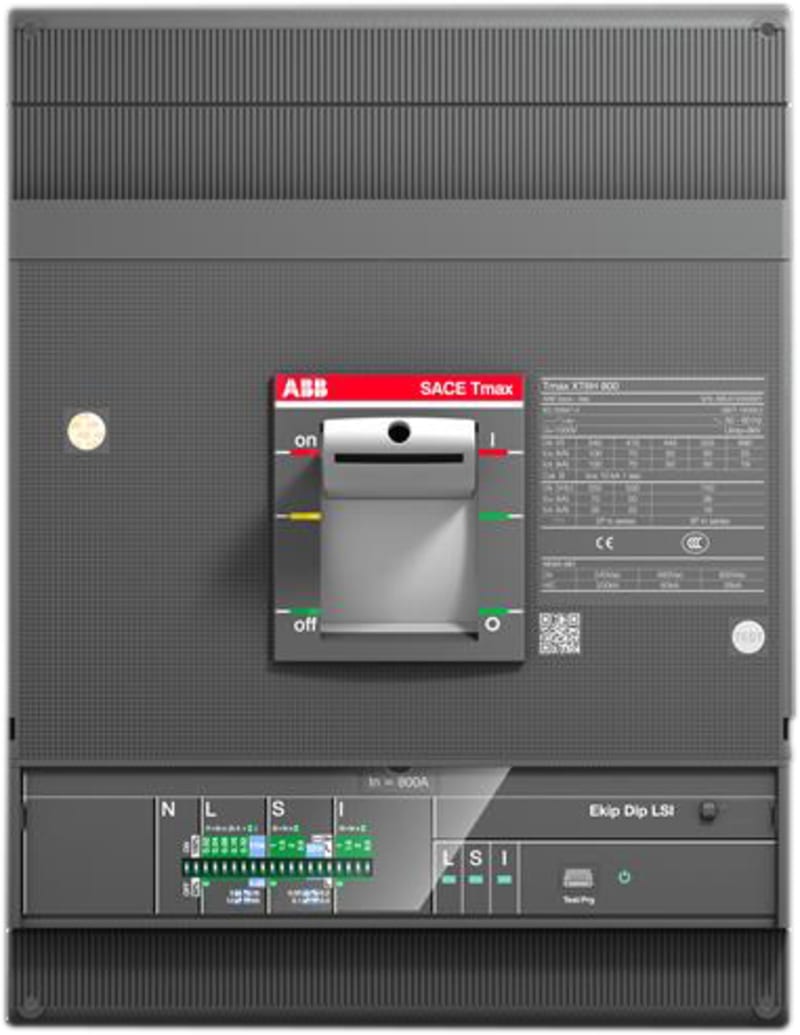

ABB SACE Tmax XT6H 800 Moulded-Case Circuit Breaker — Ekip M Dip In, In=800 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT6H 800 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 800 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip M Dip In. Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100769R1, EAN 8056221008235, ABB/SAP material 1200638431, catalogue code 83052939.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT6 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT6H 800 Ekip M Dip In In=800A 3p FF
- ABB order code (MPN)
- 1SDA100769R1
- EAN / GTIN
- 8056221008235
- ABB / SAP material no.
- 1200638431
- Frame
- XT6 (800 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- Ekip M Dip In
- Rated uninterrupted current In
- 800 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221008235
- SAP 1200638431
- Code 83052939
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B20 A30MA
2CSR275180R1205
ABB
ABB SACE Tmax XT4N 160 Moulded-Case Circuit Breaker — TMA 100-1000, In=100 A, 3-Pole
1SDA068087R1
ABB
ABB UVD undervoltage release time delay 220-250 V AC/DC for Tmax XT5-XT6
1SDA101982R1
ABB
UND.SP.UTL UVR-C T4-T5 127 VAC
UVR-C T4-T5-T6 110-127V AC/DC
ABB
ABB S401-C50 Miniature Circuit Breaker — 1P, Type C, 50 A, 10 kA
2CCS571001R1504
ABB
ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
1SDA068218R1
ABB
ABB S803S-KM20 Miniature Circuit Breaker — 3P, magnetic-only, 20 A, 50 kA
2CCS863001R0486
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — Ekip LSI, In=100 A, 3-Pole
1SDA068483R1
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA100769R1?
- 1SDA100769R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA100769R1.
- What is the HS code for 1SDA100769R1?
- The customs tariff (HS) code for 1SDA100769R1 is 8536.20.
- Who manufactures 1SDA100769R1?
- 1SDA100769R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA100769R1?
- Yes — the 1SDA100769R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA100769R1?
- The minimum order quantity is 1.
- Is 1SDA100769R1 available?
- Yes — 1SDA100769R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
