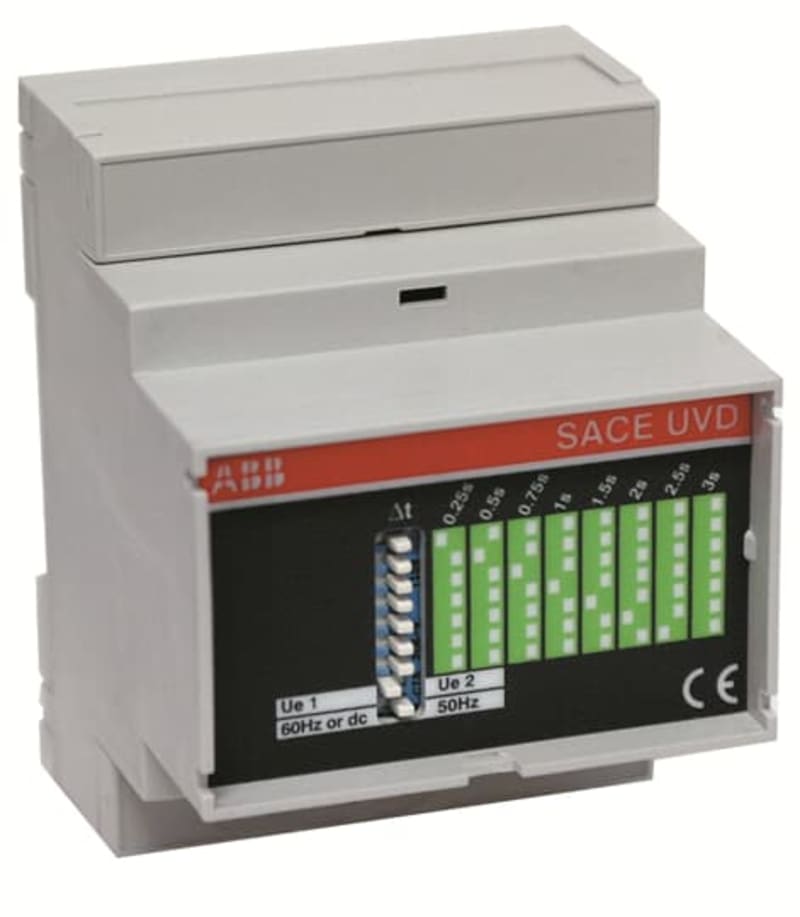

ABB UVD undervoltage release time delay 220-250 V AC/DC for Tmax XT5-XT6
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA101982R1 time-delay module for the undervoltage release (UVD) fitted to SACE Tmax XT5 and XT6 moulded-case circuit breakers, covering 220-250 V AC/DC coils. Delays tripping on voltage dips to avoid nuisance operation. Supplied as a loose accessory to IEC 60947-2.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA101982R1
- EAN / GTIN
- 8056221020268
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5; XT6
- Suitable for Product Class
- SACE Tamx XT
- Configuration Type
- Loose or configurable
- Order Multiple
- 1 piece
- Rated Voltage (U r )
- 220...250 V AC; 220...250 V DC
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206; 1SDC210200D0206; 1SDC210199D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1603
- ETIM 9
- EC002052 - Time delay under voltage coil
- IDEA Granular Category Code (IGCC)
- 4147 >> Time delay under voltage coil
- UNSPSC
- 39121010
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370426
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221020268
- SAP 1200639867
- Code 83056795
Product Documentation
More from ABB
ABB
UND.SP.UTL UVR-C T4-T5 127 VAC
UVR-C T4-T5-T6 110-127V AC/DC
ABB
ABB S401-C50 Miniature Circuit Breaker — 1P, Type C, 50 A, 10 kA
2CCS571001R1504
ABB
ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — TMD 125-1250, In=125 A, 3-Pole
1SDA068218R1
ABB
ABB S803S-KM20 Miniature Circuit Breaker — 3P, magnetic-only, 20 A, 50 kA
2CCS863001R0486
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — Ekip LSI, In=100 A, 3-Pole
1SDA068483R1
ABB
ABB S203M-D3 Miniature Circuit Breaker — 3P, Type D, 3 A, 10 kA 2CDS273001R0031
ABB

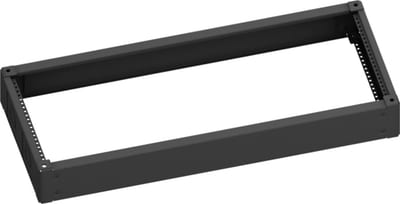

Plinth TZL410 100X1050X275MM
