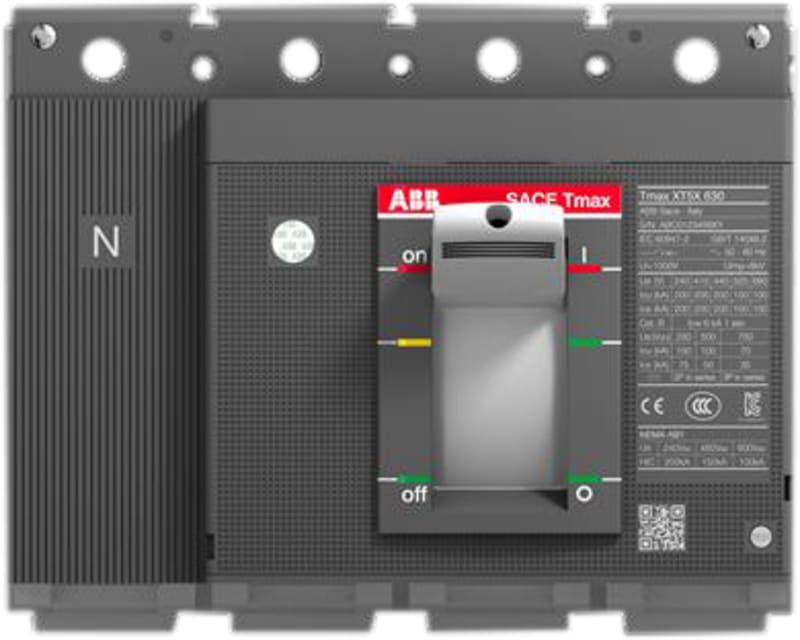

ABB SACE Tmax XT5X 630 Moulded-Case Switch-Disconnector — 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5X 630 A frame moulded-case switch-disconnector (non-automatic isolating and switching duty, supplied without an overcurrent trip unit). 4-pole, F/F (front, fixed) terminals. Rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100572R1, EAN 8056221006484, ABB/SAP material 1200638326, catalogue code 83051949.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case switch-disconnector, IEC 60947-2)
- Configuration
- XT5X 630 SWITCH UNIT 4p FF
- ABB order code (MPN)
- 1SDA100572R1
- EAN / GTIN
- 8056221006484
- ABB / SAP material no.
- 1200638326
- Frame
- XT5 (630 A frame)
- Trip unit
- none (switch-disconnector)
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.50
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.50
Cross References
- EAN 8056221006484
- SAP 1200638326
- Code 83051949
Product Documentation
More from ABB
ABB
Switch 2+1-Pole Impressivo SEMI
10621UC-84
ABB
Transformer TS 63/12-24 C
2CSM631043R0811
ABB
BEV.PROBE CORRUGATED 24M Relay
2CKA006800A2797
ABB
Jussi MOUNTS. 100mm for Systimax
2TKA002189G1
ABB
Cover plate TERM. 6109/08-500 Black MATT
2CKA006599A2967
ABB
Residual Current Circuit Breaker F204 B 63A/30MA
F204 B-63/0,03
ABB
TMD 25-300 XT2 3P (1SDA067228R1)
ABB
ABB 6349-825-101-500 Bottom end strip for installation on 1GANG to 3GANG support frame (6346/10-101, 6346/11-101 and 6346/12-101)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA100572R1?
- 1SDA100572R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA100572R1.
- What is the HS code for 1SDA100572R1?
- The customs tariff (HS) code for 1SDA100572R1 is 8536.50.
- Who manufactures 1SDA100572R1?
- 1SDA100572R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA100572R1?
- Yes — the 1SDA100572R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA100572R1?
- The minimum order quantity is 1.
- Is 1SDA100572R1 available?
- Yes — 1SDA100572R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
