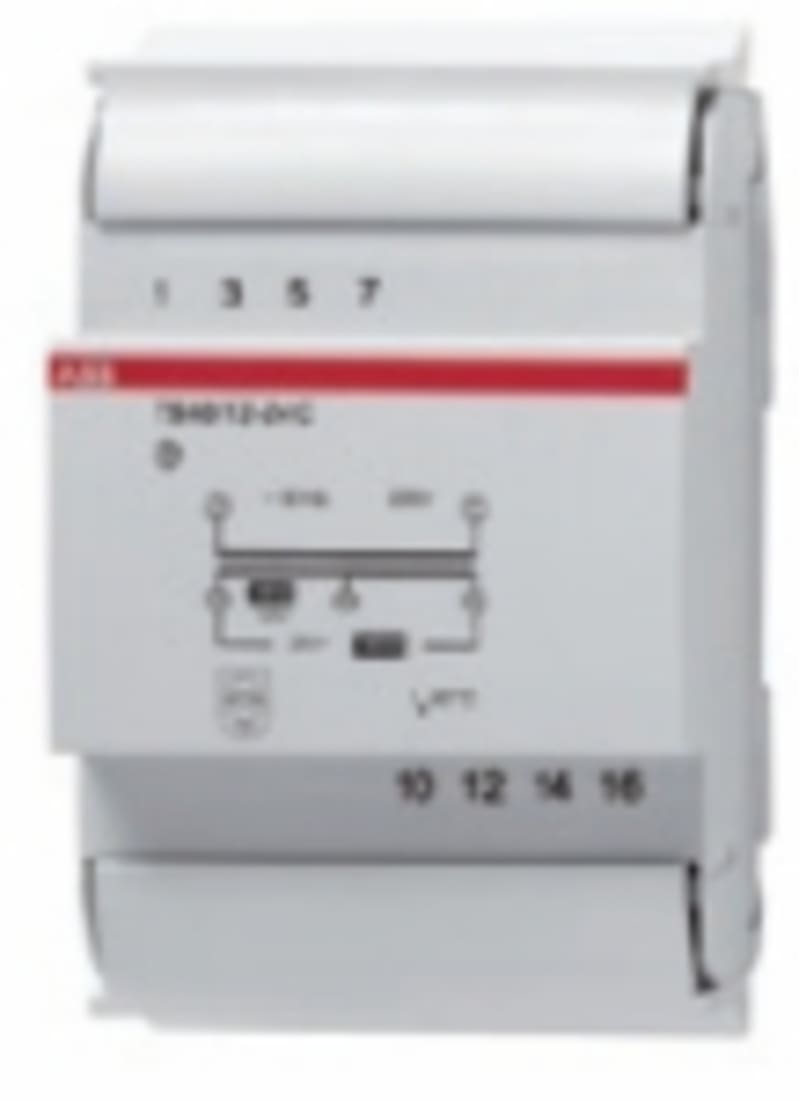

Transformer TS 63/12-24 C
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM631043R0811 — TS-C are ideal for supplying permanent power to meters, auxiliary electronic devices and circuits with very low safety voltage (SELV) for bathrooms and showers, lighting, fountains, electro-medical devices and suchlike.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM631043R0811
- EAN / GTIN
- 8012542928706
- Sales unit
- pcs
- Application
- Building and Industrial
- Power Supply
- 63 V·A
- Insulation Class
- B
- Tightening Torque
- 0.5 N·m
- Transformer Type
- Non - Inherently Short Circuit Proof
- Options Provided
- None
- Remarks
- Suitable for loads that require a continuous supply. Double insulation between primary and secondary windings
- Connecting Capacity
- 2.5 mm²
- Wire Stripping Length
- 9 mm
- Rated Operational Voltage
- 230 V AC
- Primary Voltage
- 230 V
- Secondary Voltage
- (10-12) 12 V AC; (10-14) 24 V AC; (12-14) 0 V AC
- Secondary Current
- (10-12) 5.3 A; (10-14) 2.63 A; (12-11) 0 A
- Output Current Maximum (I out )
- 2.63 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Maximum < 15 W
- Rated Output Power
- 63 W
- Connecting Capacity UL/CSA
- 14 AWG
- Ambient Air Temperature
- Operation +10 ... +40 °C
- Degree of Protection
- IP20
- Width in Number of Modular Spacings
- 5
- Product Net Width
- 87.5 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 120 mm
- CAD Dimensional Drawing
- 9AKK108473A0660
- Declaration of Conformity - CE
- 2CSC446003D2701
- IMQ Certificate
- 9AKK107992A6751
- Wiring Diagram
- 9AKK108467A7343
- ETIM 9
- EC001547 - Bell transformer
- UNSPSC
- 39121029
- eClass
- V11.0 : 27031190
- IDEA Granular Category Code (IGCC)
- 4175 >> Isolation transformer
- Object Classification Code
- T
- Standards
- IEC/EN 61558-2-6
- Certification Agency
- IMQ
- Width
- 87.5 mm
- Height
- 85 mm
- Type of transformer
- Safety transformer
- With on/off switch
- No
- Max. output current
- 2.63 A
- Length
- 120 mm
- Max. output power
- 63 W
- Surface mounting
- No
- Short-circuit protected
- Yes
- Secondary voltage 1
- 12 V
- Secondary voltage 2
- 24 V
- Secondary amperage 1
- 2.63 A
- Temperature protection
- Yes
- Max. power loss
- 4.5 W
- Flush-mounted installation
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 8012542928706
- SAP 1000225203
- Code 8961936
