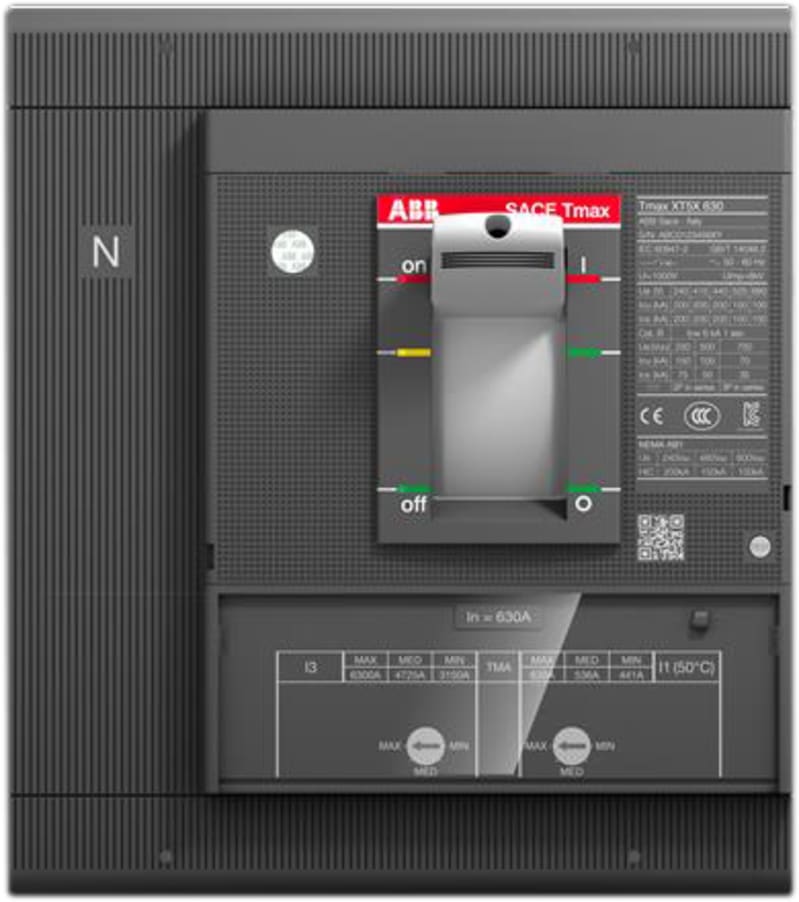

ABB SACE Tmax XT5H 630 Moulded-Case Circuit Breaker — TMA 630-6300, In=630 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5H 630 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 630 A, 4-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMA 630-6300 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100525R1, EAN 8056221006019, ABB/SAP material 1200638292, catalogue code 83052019.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5H 630 TMA 630-6300 4p FF In
- ABB order code (MPN)
- 1SDA100525R1
- EAN / GTIN
- 8056221006019
- ABB / SAP material no.
- 1200638292
- Frame
- XT5 (630 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- TMA 630-6300
- Rated uninterrupted current In
- 630 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221006019
- SAP 1200638292
- Code 83052019
