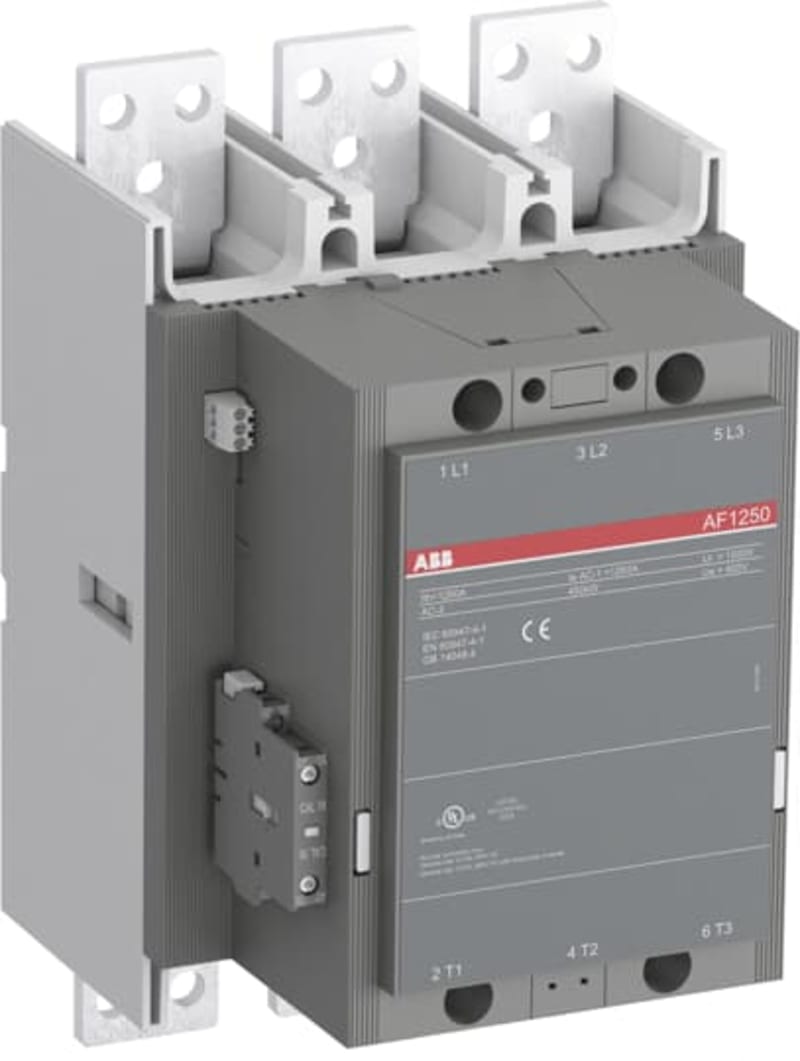

AF1250-30-11 24-60VDC (1SFL647001R6811)

ABB 1SFL647001R6811 — The AF1250-30-11-68 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 1260 A (AC-1) or 1210 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Manufacturer part number (MPN)

1SFL647001R6811

EAN / GTIN

7320500346075

Sales unit

pcs

Voltage

24-60 V DC

Country of Origin

India

Product Sales Status

Active

Product Net Width

210 mm

Product Net Depth / Length

242 mm

Product Net Height

344 mm

Number of Main Contacts NO

3

Number of Main Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Auxiliary Contacts NC

1

Number of Poles

3P

Rated Operational Voltage

Main Circuit 1000 V

Rated Frequency (f)

Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (I th )

acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1050 A

Rated Operational Current AC-1 (I e )

(1000 V) 40 °C 1260 A; (1000 V) 55 °C 1040 A; (1000 V) 70 °C 875 A; (690 V) 40 °C 1260 A; (690 V) 55 °C 1040 A; (690 V) 70 °C 875 A

Rated Operational Current DC-1 (I e )

(220 V) 3 Poles in Series, 40 °C 1250 A; (600 V) 3 Poles in Series, 40 °C 1250 A; (850 V) 3 Poles in Series, 40 °C 1250 A

Rated Operational Current DC-3 (I e )

(220 V) 3 Poles in Series, 40 °C 1250 A; (600 V) 3 Poles in Series, 40 °C 1250 A; (850 V) 3 Poles in Series, 40 °C 1250 A

Rated Operational Current DC-5 (I e )

(220 V) 3 Poles in Series, 40 °C 1250 A; (600 V) 3 Poles in Series, 40 °C 1250 A; (850 V) 3 Poles in Series, 40 °C 1250 A

Rated Breaking Capacity AC-3

8 x Ie AC-3

Rated Making Capacity AC-3

10 x Ie AC-3

Rated Short-time Withstand Current Low Voltage (I cw )

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1500 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 5200 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 8000 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7200 A; at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4000 A

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 7500 A; cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 7000 A

Rated Insulation Voltage (U i )

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V; acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 1000 V; acc. to UL/CSA 600 V

Rated Impulse Withstand Voltage (U imp )

Main Circuit 8 kV

Maximum Electrical Switching Frequency

(AC-1) 300 cycles per hour

Mechanical Durability

0.5 million

Maximum Mechanical Switching Frequency

300 cycles per hour

Coil Operating Limits

(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)

Rated Control Circuit Voltage (U c )

DC Operation 24 ... 60 V

Coil Consumption

Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A; Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A; Holding at Max. Rated Control Circuit Voltage DC 4.5 V·A; Holding at Max. Rated Control Circuit Voltage DC 4.5 W; Pull-in at Max. Rated Control Circuit Voltage 50 Hz 780 V·A; Pull-in at Max. Rated Control Circuit Voltage 60 Hz 780 V·A; Pull-in at Max. Rated Control Circuit Voltage DC 1135 V·A; Pull-in at Max. Rated Control Circuit Voltage DC 1135 W

Power Loss

at Rated Operating Conditions per Pole 80 W

Operate Time

Between Coil De-energization and NC Contact Closing 50 ... 70 ms; Between Coil De-energization and NO Contact Opening 53 ... 73 ms; Between Coil Energization and NC Contact Opening 45 ... 115 ms; Between Coil Energization and NO Contact Closing 50 ... 120 ms

Connecting Capacity Main Circuit

Bar 50 mm²

Connecting Capacity Auxiliary Circuit

Flexible with Ferrule 2x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²; Flexible 1x0.75 ... 2.5 mm²; Flexible 2x0.75 ... 2.5 mm²; Solid 2 x 1 ... 4 mm²; Stranded 2 x 1 .... 4 mm²

Connecting Capacity

Bar 50 mm²

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00

Connecting Terminals (delivered in open position) Main Poles

M 3.5 (+,-) pozidriv 2 screw with cable clamp

Recommended Screw Driver

Main Circuit M12; Control Circuit Pozidriv 2; Control Circuit M3.5

Tightening Torque

Cable Lug 45 N·m; Main Circuit 45 N·m

Terminal Type

Main Circuit: Bars

Suitable for Product Class

Block ContactorsBlock Contactors

Horsepower Rating NEMA

(230 V AC) Three Phase 300 Hp; (460 V AC) Three Phase 600 Hp; (575 V AC) Three Phase 600 Hp

Maximum Operating Voltage UL/CSA

Main Circuit 1000 V

General Use Rating UL/CSA

(1000 V AC) 1210 A

Ambient Air Temperature

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C; Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C; Close to Contactor for Storage -40 ... 70 °C; Operation -40 ... 70 °C; Storage -40 ... +70 °C

Maximum Operating Altitude Permissible

Without Derating 3000 m

Resistance to Shock acc. to IEC 60068-2-27

Shock Direction: A 5 g; Shock Direction: B1 5 g; Shock Direction: B2 5 g; Shock Direction: C1 5 g; Shock Direction: C2 5 g

ABB EcoSolutions

Yes

ABB Site Meeting Group Waste To Landfill Target

UL 2799 Zero Waste To Landfill Validation available

EcoSolutions Profile

1SFC100125C0366

End Of Life Disassembling Instructions

1SFC100112M0004

Environmental Product Declaration - EPD

1SFC100109D0201; 2TFP200025A1001

Extended Product Lifetime

Product Durability

Improved Energy Efficiency for Customers

Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 69.7 %

ABS Certificate

15-LD1408622-PDA

BV Certificate

BV_13409-C0BV

CB Certificate

SE-82863

CCS Certificate

GB14T00030; GZ15T00069

CQC Certificate

CQC2006010304213519; CQC2012010304540079

cULus Certificate

UL_20130930-E73397

Declaration of Conformity - CE

2CMT2019-005796

Declaration of Conformity - UKCA

2CMT2020-006118

DNV Certificate

TAE00001W1

LR Certificate

16-20064

PRS Certificate

TE_2092_880423_16

RINA Certificate

ELE060313XG_002

UL Listing Card

UL_E73397

Object Classification Code

Q

ETIM 7

EC000066 - Power contactor, AC switching

eClass

V11.0 : 27371003

UNSPSC

39121529

IDEA Granular Category Code (IGCC)

4758 >> Iec Contactors

E-Number (Norway)

4115380

E-Number (Sweden)

4115380

HS Code

8536.49
