ABB SACE Tmax XT5S 630 Moulded-Case Circuit Breaker — In=2500 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5S 630 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 2500 A, 3-pole, F/F (front, fixed) terminals. Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100446R1, EAN 8056221005234, ABB/SAP material 1200638166, catalogue code 83055740.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5S 630 TMG 500-2500 3p FF
- ABB order code (MPN)
- 1SDA100446R1
- EAN / GTIN
- 8056221005234
- ABB / SAP material no.
- 1200638166
- Frame
- XT5 (630 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Rated uninterrupted current In
- 2500 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221005234
- SAP 1200638166
- Code 83055740
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip Hi-Touch LSI 1600A, In=1600 A, 3-Pole
1SDA100921R1
ABB
ABB 4-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT630E04P
ABB
ABB Busch-priOn 2-gang support frame, flush-mounted
6346/11-101-500
ABB
ABB SACE Tmax XT5S 400 Moulded-Case Circuit Breaker — TMA 400-4000, In=400 A, 4-Pole
1SDA100455R1
ABB

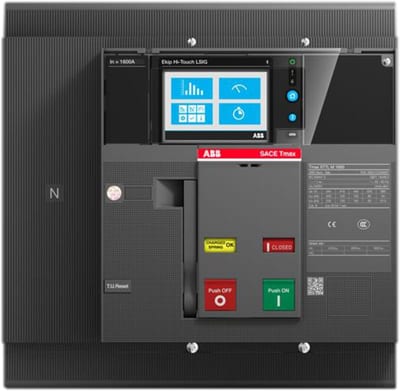

ABB SACE Tmax XT7H 1600 Moulded-Case Circuit Breaker — Ekip Touch LSI IN1600A, In=1600 A, 4-Pole
1SDA101725R1
ABB

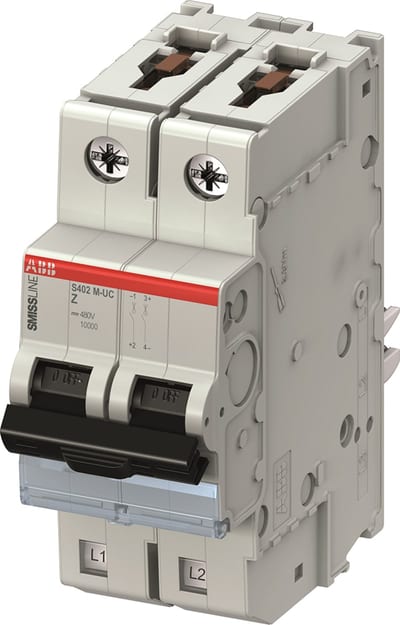

ABB S402-Z25 Miniature Circuit Breaker — 2P, Type Z, 25 A, 10 kA
2CCS572001R1258
ABB
ABB S203M-K20 Miniature Circuit Breaker — 3P, Type K, 20 A, 10 kA
2CDS273061R0487
ABB

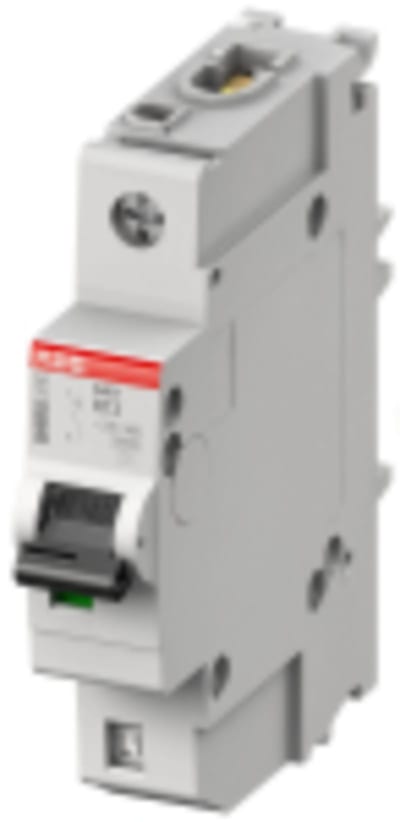

ABB S401-K8 Miniature Circuit Breaker — 1P, Type K, 8 A, 10 kA
