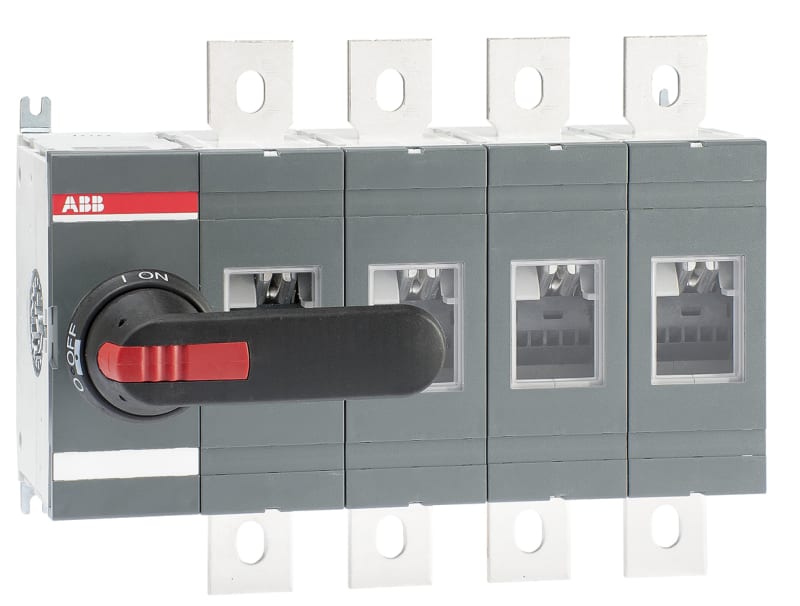

ABB 4-Pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included OT630E04P
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB OT630E04P — 4-pole, front operated, base mounted switch-disconnector with black IP65 handle and shaft, terminal bolt kit included.
Technical Specifications
- Manufacturer part number (MPN)
- OT630E04P
- EAN / GTIN
- 6417019230801
- HS code
- 8536.90
- Sales unit
- pcs
- Country of Origin
- India
- Product Sales Status
- Active
- End Of Life Disassembling Instructions
- 1SCC301119M0201
- Environmental Information
- 1SCC301232D0201
- Environmental Product Declaration - EPD
- 1SCC301284D0201
- Degree of Protection
- Front IP00
- Pollution Degree
- 3
- Product Net Width
- 331 mm
- Product Net Height
- 250 mm
- Product Net Depth / Length
- 140 mm
- Color
- Grey
- Conventional Free-air Thermal Current (I th )
- Θ = 40 °C 630 A
- Conventional Thermal Current (I the )
- Fully Enclosed 630 A
- Distance Between Phases
- Standard
- Fourth Pole Position
- Right Side
- Fourth Pole Type
- Switched - Simultaneous Function
- Handle Color
- Black
- Mechanical Durability
- 10000
- Mounting Type
- Base mounting
- Number of Poles
- 4P
- Operating Mode
- Front
- Position of Line Terminals
- Top In - Bottom Out; Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 25 W
- Rated Conditional Short-Circuit Current (I nc )
- (800 A fuse, 500 V) 100 kA; (800 A fuse, 690 V) 80 kA
- Rated Impulse Withstand Voltage (U imp )
- 12 kV
- Rated Insulation Voltage (U i )
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current AC-21A (I e )
- (380 ... 415 V) 630 A; (500 V) 630 A; (690 V) 630 A
- Rated Operational Current AC-22A (I e )
- (380 ... 415 V) 630 A; (500 V) 630 A; (690 V) 630 A
- Rated Operational Current AC-23A (I e )
- (380 ... 415 V) 630 A; (500 V) 630 A; (690 V) 630 A
- Rated Operational Power AC-23A (P e )
- (220 ... 240 V) 200 kW; (400 ... 415 V) 355 kW; (500 V) 400 kW; (690 V) 630 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (I cm )
- (690 V) 80 kA
- Rated Short-time Withstand Current Low Voltage (I cw )
- for 1 s 20 kA
- Special Functions
- No
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- Mechanism at the End of the Switch; 04 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 39 mm
- Tightening Torque
- acc. IEC 60947-1 50 … 75 N·m
- A2L Certificate – IEC
- 1SCC301337D0201
- ATEX Certificate
- No certification needed
- BV Certificate
- 1SCC301103D0201
- Declaration of Conformity - CE
- 1SCC301140D2704
- DNV GL Certificate
- 1SCC301184D0203
- UL Certificate
- No certification needed
- VDE Certificate
- No certification needed
- Object Classification Code
- Q
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- ETIM 10
- EC000216 - Switch disconnector (AC)
- UNSPSC
- 39122233
- eClass
- V11.1 : 27371403
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- E-Number (Finland)
- 3660776
- E-Number (Norway)
- 4337055
- E-Number (Sweden)
- 3171221
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6417019230801
- SAP 1000224573
- Code 8938166
Product Documentation
