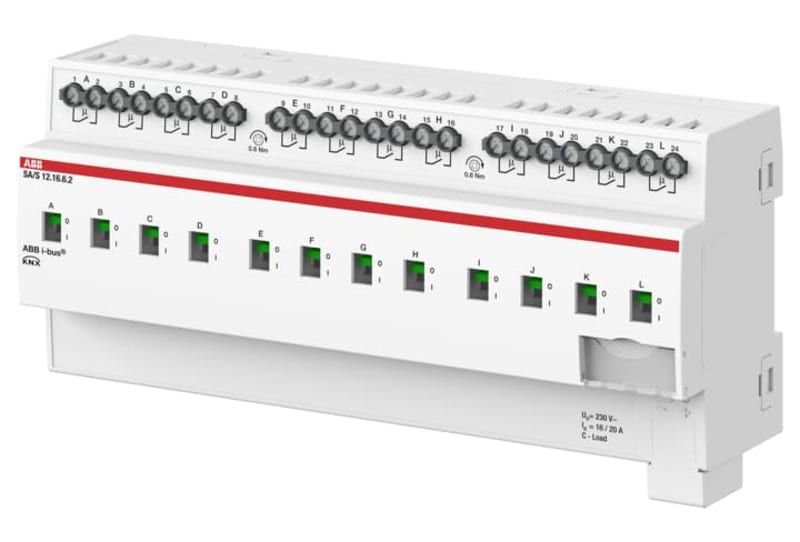

ABB SA/S12.16.6.2 KNX 12-channel binary output with current detection and energy metering
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SA/S12.16.6.2 KNX binary output actuator, 12 channels rated 16 A for AX loads, with integrated current detection and energy-metering function plus manual operation. Twelve-module DIN-rail unit suitable for C-loads and different phases per channel. Rated 230 V with LED status indication.
Technical Specifications
- Manufacturer part number (MPN)
- SA/S12.16.6.2
- EAN / GTIN
- 4016779066532
- Sales unit
- pcs
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- Width in number of modular spacings
- 12
- Local operation/hand operation
- Yes
- With LED indication
- Yes
- Max. switching power
- 3680 W
- Output power
- 3680 W
- Suitable for C-load
- Yes
- Max. number of switching contacts
- 12
- Max. switching current
- 20 A
- Rated current
- 20 A
- Rated operating voltage
- 230 V
- Different phases connectable
- Yes
- With bus connection
- Yes
- Bus module detachable
- No
- Min. depth of built-in installation box
- 64.5 mm
- Modular expandability
- No
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4016779066532
- SAP 1200490118
- Code 82622793
Product Documentation
