ABB SACE Tmax XT5N 630 Moulded-Case Circuit Breaker — Ekip Dip LSI, In=630 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT5N 630 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 630 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip Dip LSI (L overload, S short-time-delay, I instantaneous protection). Breaking-capacity class N; rated ultimate short-circuit breaking capacity Icu = 36 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA100359R1, EAN 8056221004367, ABB/SAP material 1200638734, catalogue code 83053044.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT5 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT5N 630 Ekip Dip LSI In=630 3p FF
- ABB order code (MPN)
- 1SDA100359R1
- EAN / GTIN
- 8056221004367
- ABB / SAP material no.
- 1200638734
- Frame
- XT5 (630 A frame)
- Breaking-capacity class
- N
- Rated ultimate breaking capacity Icu (415 V AC)
- 36 kA
- Trip unit
- Ekip Dip LSI
- Rated uninterrupted current In
- 630 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8056221004367
- SAP 1200638734
- Code 83053044
Product Documentation
More from ABB
ABB
Switch 2-Pole, IMP.WALL-MOUNTED,WHITE
1062A-84
ABB
ABB OTPS40FDN2 Fourth POLE
ABB
FUSE Holder E 91N/32
2CSM200893R1801
ABB
Busbar. LB/Aut - ABB Ov.spv 2P-PIN
30644
ABB
ABB 1SDA067290R1 Magnetic Release Three-POLE IN AC-DC MA Iu 20 I3=120...280 A XT2
ABB
Safety Switch OTE75T6M 80A 6P EMC
ABB
Impressivo In. ENK Socket without Frame, Black Matte
20 EUCKS-885
ABB

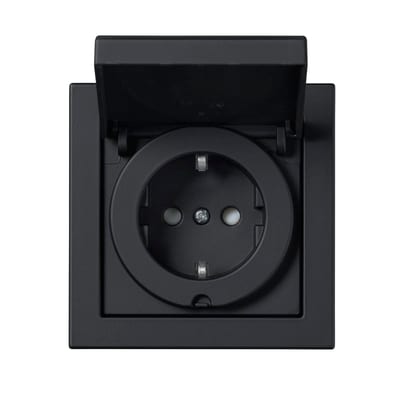

Impressivo In. ENK Socket IP44 Black Matte
