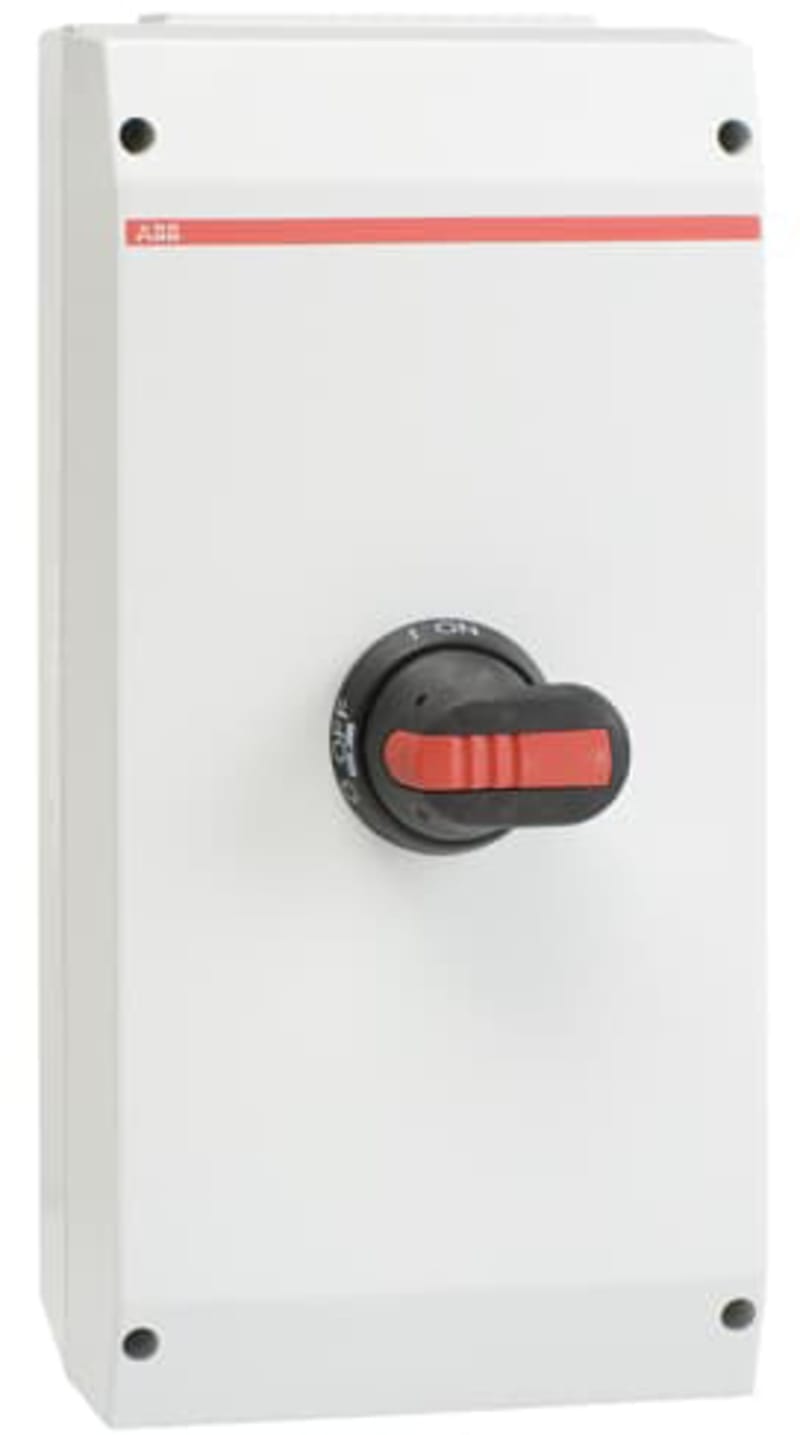

Safety Switch OTE75T6M 80A 6P EMC

ABB OTE75T6M — EMC safety switch, 6-p. 415V AC23 80A, 37kW. Mounted auxiliary contact: 1NO0NC. Plastic enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTE series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The EMC protection is utilized by a metal plate in the bottom, connected to the cable shield with clamps, included in the delivery. No EMC glands needed.

Manufacturer part number (MPN)

OTE75T6M

EAN / GTIN

6417019274706

Sales unit

pcs

Rated current

80 A

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

200 mm

Product Net Height

400 mm

Product Net Depth / Length

140 mm

Cable Cross-Section

10 ... 70 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xM50+M16 / 2xM50+M16

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 10 ... 70 mm²; Screw Clamp / PE Terminal 4pc 10 ... 70 mm²

Conventional Thermal Current (I the )

Fully Enclosed 115 A

Enclosure Material

Plastic

Handle Color

Black

Handle Type

Pistol

Impact Resistance Rating

Housing IK08

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

Fixed Neutral

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

6P

Power Loss

at Rated Operating Conditions per Pole 4 W; Total 24 W

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 100 A; (500 V) 100 A; (690 V) 100 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 100 A; (500 V) 100 A; (690 V) 100 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 80 A; (500 V) 60 A; (690 V) 40 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 37 kW; (500 V) 37 kW; (690 V) 37 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 3.6 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 2.5 kA; for 0.2 s 2.5 kA

Recommended Screw Driver

Main Circuit Hexagon 4

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 6 N·m

Wire Stripping Length

20 mm

BV Certificate

1SCC340018D0204

Declaration of Conformity - CE

1SCC340004D2705

DNV GL Certificate

1SCC340045D0203

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3642886

E-Number (Norway)

1429428

E-Number (Sweden)

3135003

HS Code

8536.30
