ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — MA 125 Im=750, In=125 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT3S 250 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 125 A, 3-pole, F/F (front, fixed) terminals. Magnetic-only trip unit MA 125 Im=750 (magnetic instantaneous short-circuit release, for motor protection). Breaking-capacity class S; rated ultimate short-circuit breaking capacity Icu = 50 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA068280R1, EAN 8015644021863, ABB/SAP material 1200637935, catalogue code 83054871.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT3 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT3S 250 MA125 Im=750...1500 3p FF
- ABB order code (MPN)
- 1SDA068280R1
- EAN / GTIN
- 8015644021863
- ABB / SAP material no.
- 1200637935
- Frame
- XT3 (250 A frame)
- Breaking-capacity class
- S
- Rated ultimate breaking capacity Icu (415 V AC)
- 50 kA
- Trip unit
- MA 125 Im=750
- Rated uninterrupted current In
- 125 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644021863
- SAP 1200637935
- Code 83054871
Product Documentation
More from ABB
ABB
JF.LYSB.AUT.DS-ARC1 B20 A30
2CSA255103R1205
ABB
PB 25mm 4 Pcs XT1-XT3 3P PAIR.DIV.PH.LOW
1SDA066674R1
ABB
ABB SACE Tmax XT4S 160 Moulded-Case Circuit Breaker — MA 80 Im=400, In=80 A, 3-Pole
1SDA068436R1
ABB
ABB S203-B100 Miniature Circuit Breaker — 3P, Type B, 100 A, 6 kA 2CDS253001R0825
ABB
ADP MOUNTING Fast. x PF XT3 4P
1SDA066310R1
ABB
ABB S202M-C4 Miniature Circuit Breaker — 2P, Type C, 4 A, 10 kA
2CDS272061R0044
ABB

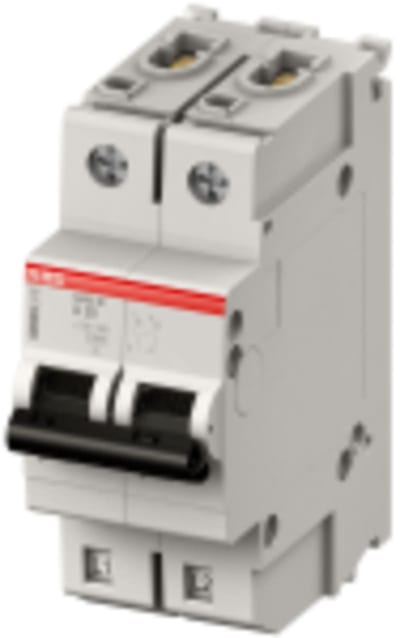

ABB S402-D16 Miniature Circuit Breaker — 2P, Type D, 16 A, 10 kA
