ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — Ekip In, In=25 A, 3-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2H 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 25 A, 3-pole, F/F (front, fixed) terminals. Electronic trip unit Ekip In. Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067863R1, EAN 8015644017590, ABB/SAP material 1200637522, catalogue code 83051688.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2H 160 Ekip In In=25A 3p FF
- ABB order code (MPN)
- 1SDA067863R1
- EAN / GTIN
- 8015644017590
- ABB / SAP material no.
- 1200637522
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- Ekip In
- Rated uninterrupted current In
- 25 A
- Poles
- 3
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644017590
- SAP 1200637522
- Code 83051688
Product Documentation
More from ABB
ABB
ABB SN201-B25 Miniature Circuit Breaker — 1P+N, Type B, 25 A, 6 kA
2CSS255101R0255
ABB

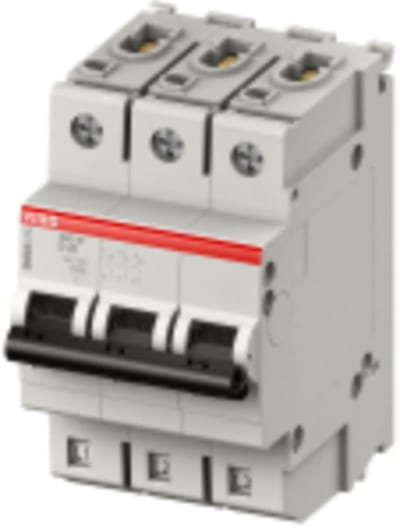

ABB S403-D20 Miniature Circuit Breaker — 3P, Type D, 20 A, 10 kA 2CCS573001R0201
ABB

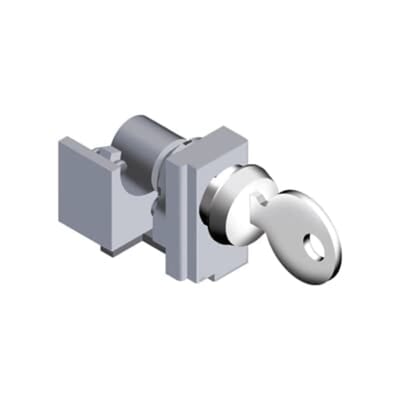

ABB 1SDA066630R1 KEY LOCK Ronis Equal Fellow A FOR Motor Operator Between MORE C.BREAKERS XT2-XT4
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Circuit Breaker — TMD 5-50, In=5 A, 4-Pole
1SDA067654R1
ABB

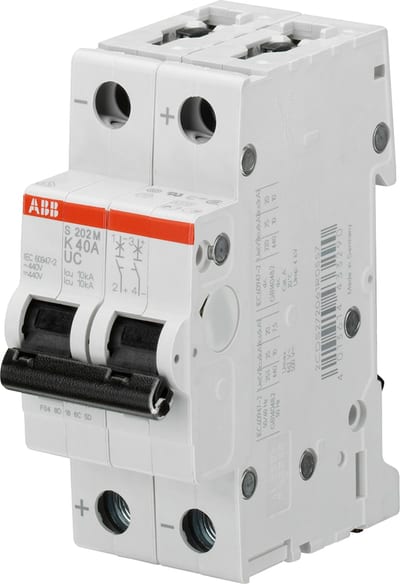

ABB S202M-Z16 Miniature Circuit Breaker — 2P, Type Z, 16 A, 10 kA
2CDS272061R0468
ABB

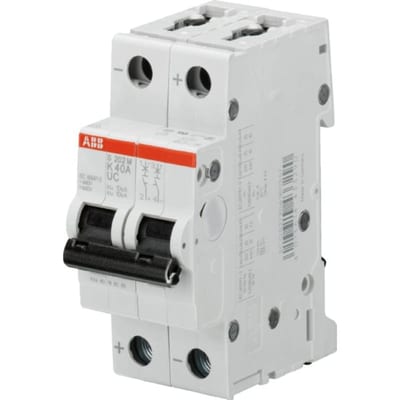

ABB S202M-Z32 Miniature Circuit Breaker — 2P, Type Z, 32 A, 10 kA
2CDS272061R0538
ABB
AUP-In 250VAC FP XT1..XT4 4 CON.INSE.SIG.
1SDA066450R1
ABB

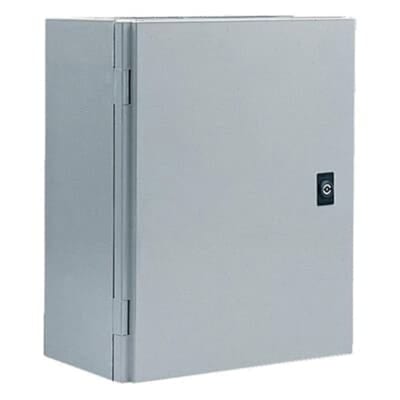

WALL-Mount Cabinet ARIA 43, 415X315X170
