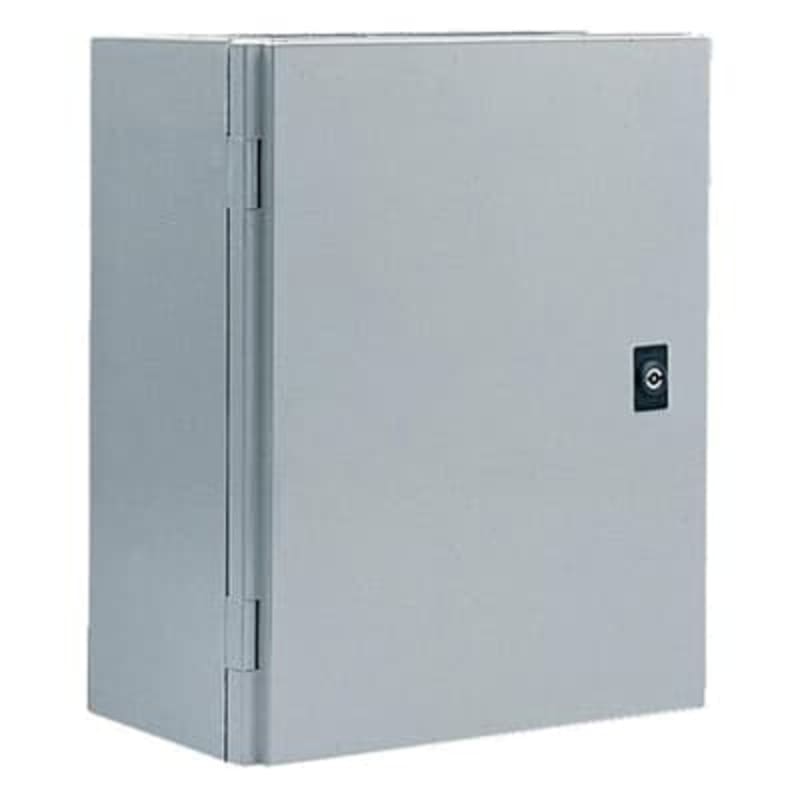

WALL-Mount Cabinet ARIA 43, 415X315X170
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4TBA831035C0100 — The cabinets are made of light grey (RAL 7035), through-dyed, hot-pressed, glass-fibre reinforced polyester. Threaded bolts are available for mounting the mounting plate and mounting frame. ARIA cabinets offer optimum safety for both users and equipment, thanks to the protective insulation and the high degree of protection of up to IP66. ARIA cabinets withstand continuous temperatures up to 70°C (peak temperatures up to 130°C). Self-extinguishing and halogen-free. Rated insulation voltage Ui = 1000V. PA43 ARIA Cabinet 415x315x170 DB 1-point ARIA, double bit 3mm, 1-point lock. IP65, IK08.
Technical Specifications
- Manufacturer part number (MPN)
- 4TBA831035C0100
- EAN / GTIN
- 5411815233913
- Sales unit
- pcs
- Dimensions
- 415×315×170
- Maximum Load Capacity
- Enclosure 1334.16 N; Door(s) 49.05 N; Mounting Plate 1334.16 N
- Number of Flange Openings
- 0
- Number of Conduit Inlets
- 0
- Number of Doors
- 1
- Number of Rows
- 0
- Cover Plate Type
- Door
- Enclosure Type NEMA
- Type4X
- Door Type
- Single
- Impact Resistance Rating
- IK08
- Power Loss
- Total 26 W; Δt = 20K - Enclosures 26 W
- Surface Finishing
- Untreated
- Housing Material
- Plastic
- Material
- GRP (Glass fibre reinforced plastic)
- Cover Style
- Closed
- RAL Number
- RAL 7035 - Light Grey
- Color
- Grey
- Number of Modules
- 0
- Degree of Protection
- IP65
- Protection Class
- Isolated (Class II)
- Width in Number of Modular Spacings
- 0
- Product Net Width
- 315 mm
- Product Net Height
- 415 mm
- Product Net Depth / Length
- 170 mm
- Thickness
- Cabinet Plate 3 mm; Door Plate 3 mm
- Mounting Type
- Surface mounted
- ETIM 9
- EC000261 - Enclosure/cabinet (empty)
- UNSPSC
- 39121103
- eClass
- V11.0 : 27142408
- Colour
- Grey
- Width
- 315 mm
- Height
- 415 mm
- Depth
- 170 mm
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- GRP (Glass fibre reinforced plastic)
- Impact strength
- IK08
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- With ventilation door
- No
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- Yes
- Max. permitted load of the enclosure according to IEC 62208
- 1334.16 N
- Max. permitted load of the door(s) according to IEC 62208
- 49.05 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 5411815233913
- SAP 1200639343
- Code 83058796
Product Documentation
More from ABB
ABB
ARIA 86 Mounting PLATE, Steel
4TBA831099C0100
ABB
ABB SN201M-C20 Miniature Circuit Breaker — 1P+N, Type C, 20 A, 10 kA
2CSS275101R0204
ABB
WALL-Mount Cabinet ARIA 54, 515X415X230
4TBA831052C0100
ABB
ZX378P20 Avstanst. for mlere
2CPX062547R9999
ABB
ABB 1SDA104879R1 Motor Operator 24V DC XT5 AUTO-Reset
ABB
ABB S202M-C3 Miniature Circuit Breaker — 2P, Type C, 3 A, 10 kA
2CDS272061R0034
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — MA 160, In=160 A, 3-Pole
1SDA076529R1
ABB

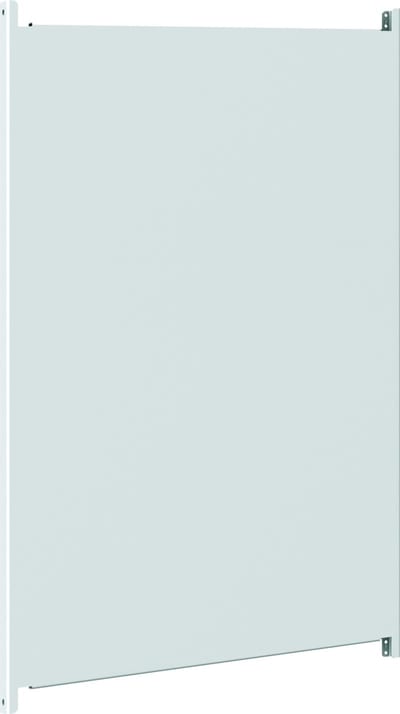

Mounting Plate TZM306 900X746X2MM
