Selector switch Modular

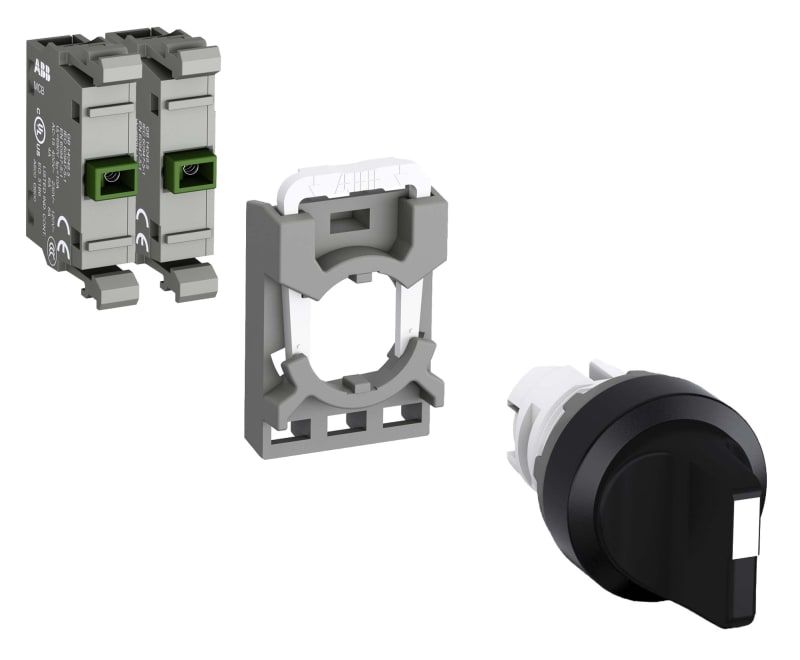

ABB M3SS3-40B-20 — The M3SS3-40B-20 Selector Switch is: 3-position - Momentary - Short handle - Black - Non-illuminated - Black Plastic - 2NO - 2 NO - 690 V. This Selector Switch is part of ABB's modular plastic range, the most versatile range with a high level of flexibility and market-leading electrical ratings. Engineered for total reliability, longer lifetime, and highest mechanical durability. Self-cleaning contacts ensure reliable operation without the need for maintenance, increasing uptime. A high degree of protection guarantees reliability in extreme environments. The innovative design simplifies the entire process, from selection to easy and quick, tool-free installation. The perfect solution for every application.

Manufacturer part number (MPN)

M3SS3-40B-20

EAN / GTIN

7320500296059

Sales unit

pcs

Package quantity

10 pcs

Product Net Width

0.048 m

Product Net Height

0.03 m

Product Net Depth / Length

0.078 m

Ambient Air Temperature

Operation -25 ... +70 °C; Storage -40 ... +85 °C

Color

Black

Bezel Material

Plastic

Illumination

Non-illuminated

Function

Maintained/Momentary

Sub-Function

3-position

Maintained Positions

A, B

Spring Return From

C to B

Number of Auxiliary Contacts NO

2

Enclosure Type NEMA

Type1; Type12; Type13; Type3R; Type4; Type4X

Pollution Degree

3

Rated Insulation Voltage (U i )

690 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Rated Frequency (f)

50 / 60 Hz

Rated Operational Voltage

Maximum 690 V

Rated Operational Current DC-13 (I e )

(24 V) 5 A

Rated Operational Current AC-15 (I e )

(230 V AC) 6 A; (120 V) 8 A; (220 / 240 V) 6 A

Power Loss

Maximum 5 W

Mechanical Durability

0.5 million

Connecting Capacity

Flexible with Ferrule 1 x 0.75...2.5 mm²; Flexible with Ferrule 2 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²; Flexible 1 x 0.75 ... 2.5 mm²; Flexible 2 x 0.75 ... 2.5 mm²; Solid 1 x 0.75...2.5 mm²; Solid 2 x 0.75...2.5 mm²

Connection Type

Screw Clamp

Terminal Type

Screw Terminals

Tightening Torque

0.9 N·m

Wire Stripping Length

8 mm

Connecting Capacity UL/CSA

1x 18...14 AWG; 2x 18...14 AWG

Degree of Protection

Front IP66; Terminals IP20

CQC Certificate

CQC2005010304154103; CQC2008010305274953

cULus Certificate

9AKK107046A9925

Declaration of Conformity - CCC

2020980305001528; 2020980305001106

Declaration of Conformity - CE

2CMT2015-005452

Declaration of Conformity - UKCA

2CMT2020-006121

DNV GL Certificate

E-14107

Object Classification Code

S

ETIM 6

EC000222 - Front element for selector switch

ETIM 7

EC001029 - Selector switch, complete

eClass

V11.0 : 27371243

UNSPSC

39121500

E-Number (Norway)

4372877

E-Number (Sweden)

3716025

HS Code

8536.50

• EAN 7320500296059
• SAP 1000528867
• Code 81013426
