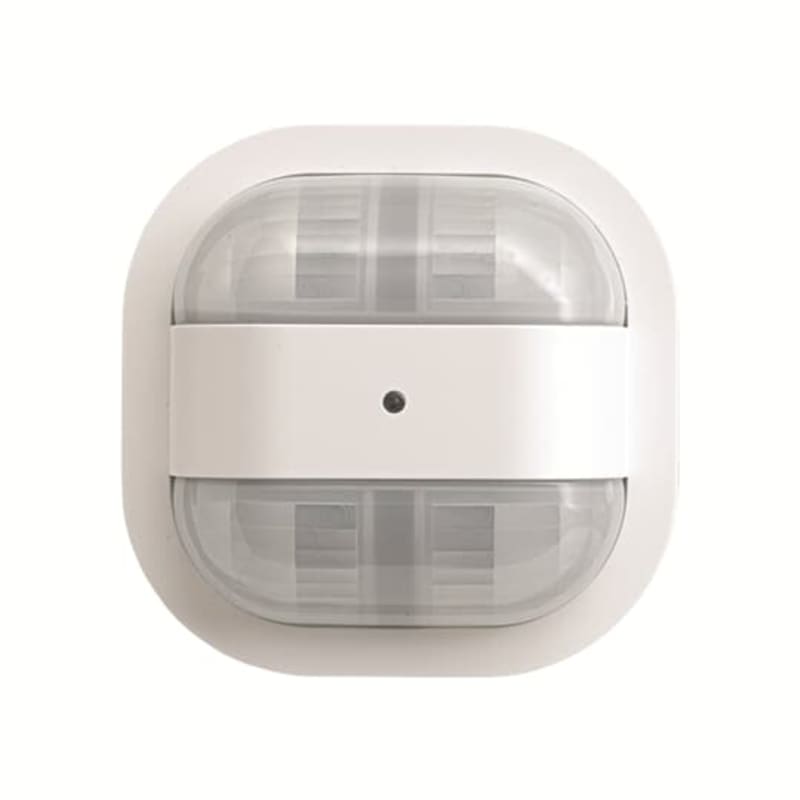

FLEX Sensor CEILINGDET. Coridor 24M White

ABB 2CKA006800A3035 — Presence detector sensor with mixed light measurement. For switching lighting systems that depend on brightness and movement. Rectangular detection range (for installation height of 3 m): walking persons crosswise to the detector up to 24 m x 3 m / frontal/lengthways to the detector up to 14 m x 3 m. Extension of the detection range by main unit/extension unit combination. On wall / on ceiling height: 39 mm For semiautomatic and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. With continuous light/duration-off function (8 hrs), IR service remote control necessary. With teach-in function of the brightness switching threshold, IR service remote control required. With brightness-independent test mode for evaluating the detection zone. With detection LED at test mode. Remote control possible via IR service remote control 6843. Adjustment elements accessible on the front side.Surveillance density: 92 sectors with 368 switching segments. Switch-off delay: approx. 1 min. - 30 min. or short-time pulse. Compatible with all Busch-flexTronics inserts.For relay insert flex, 1gang, 64811 U-500. For series relay insert flex, 2gang, 64821 U-500. For e-contact insert flex, 1gang, 64814 U-500. For LED touch dimmer insert flex, 1gang, 64851 U-500. For extension insert flex, 64891 U-500.

Manufacturer part number (MPN)

2CKA006800A3035 EAN / GTIN: 4011395294000 HS code: 8536.90 Sales unit: pcs Instructions and Manuals: 2CKA000073B5257; 2CKA000073B5259; 2CKA000073B5260; 2CKA000073B5261; 2CKA000073B5262; 2CKA000073B5263 Mounting Type: Flush-mounted Mounting Position: Ceiling Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA001673B9577 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Measuring Range: 24 x 3 m Product Range: flexTronics minimum Switching Time: Switch-On 60 s Connection Type: Pin Sensor Detection Range: 360 °; Horizontal 0 ... 180 ° Design Range: ProfessionalLINE material: Plastic; Thermoplastic RAL Number: Similar to RAL 9016 Color: white Product Net Width: 94 mm Product Net Height: 94 mm Product Net Depth / Length: 50 mm Declaration of Conformity - CE: 2CKA100000E4642 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008

HS Code

8536.90

• EAN 4011395294000
• SAP 1200923988
• Code 84210911
