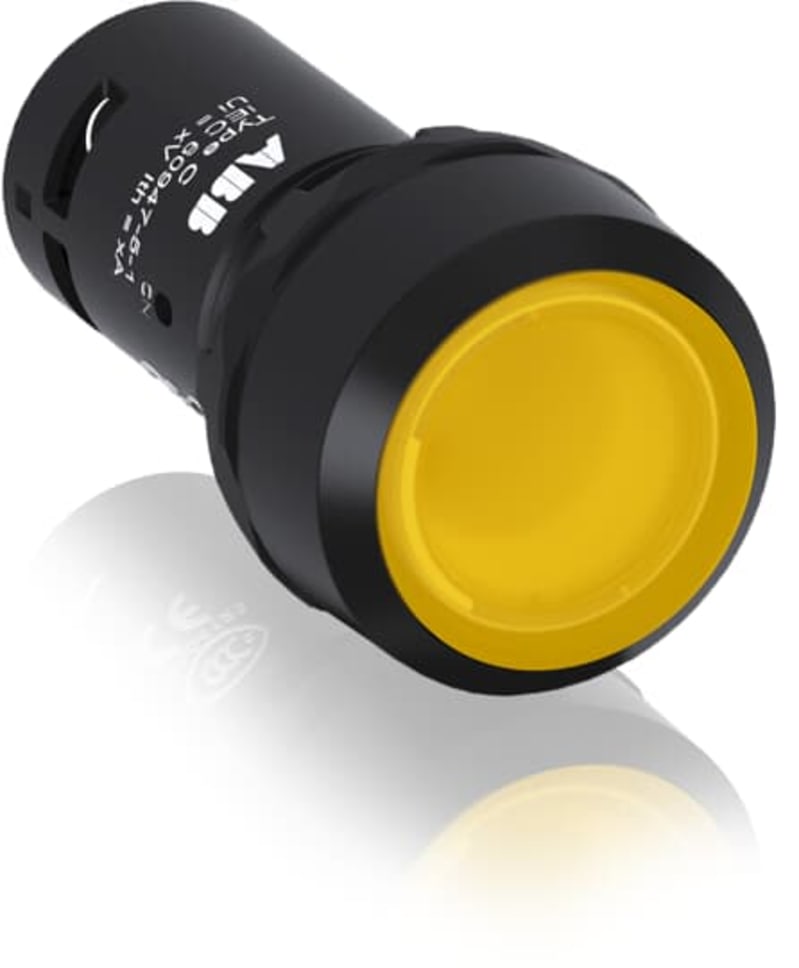

Illuminated Push Button Compact CP1-11Y-10
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SFA619100R1113 — The CP1-11Y-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Yellow - Illuminated - Black Plastic - 1NO - Yellow - 1 NO - 0 NC -, 24 V. This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.The compact range has a high level of dust and water resistance.
Technical Specifications
- Manufacturer part number (MPN)
- 1SFA619100R1113
- EAN / GTIN
- 7320500550724
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Product Net Width
- 0.03 m
- Product Net Height
- 0.03 m
- Product Net Depth / Length
- 0.055 m
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -40 ... +85 °C
- Color
- Yellow
- Bezel Material
- Plastic
- Illumination
- Illuminated
- Lamp Type
- LED 24V AC/DC
- Function
- Momentary
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 1
- Enclosure Type NEMA
- Type1; Type12; Type13; Type3R; Type4; Type4X
- Pollution Degree
- 3
- Rated Insulation Voltage (U i )
- 300 V
- Rated Impulse Withstand Voltage (U imp )
- 6 kV
- Rated Frequency (f)
- 50 / 60 Hz; Supply Circuit 50 / 60 Hz
- Rated Operational Voltage
- 24 V AC/DC; Supply Circuit 24 V AC/DC
- Rated Operational Current DC-13 (I e )
- (24 V) 0.3 A; (125 V) 0.2 A
- Rated Operational Current AC-15 (I e )
- (240 V) 2 A; (220 / 240 V) 2 A
- Power Loss
- Maximum 2.7 W
- Mechanical Durability
- 0.5 million
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm²; Flexible with Ferrule 2 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²; Flexible 1 x 0.5 ...1.5 mm²; Flexible 2 x 0.5 ...1.5 mm²; Solid 1 x 0.5...1.5 mm²; Solid 2 x 0.5...1.5 mm²
- Connection Type
- Screw Clamp
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.8 N·m
- Wire Stripping Length
- 6 mm
- Connecting Capacity UL/CSA
- 1x 22...14 AWG; 2x 22...14 AWG
- Degree of Protection
- Front IP66; Front IP67; Front IP69K; Terminals IP20
- CB Certificate
- CQC_CN_CN50749
- CCC Certificate
- 2024010305654692
- CQC Certificate
- CQC2003010305054693
- cURus Certificate
- UL_E496500-20171020
- Declaration of Conformity - CE
- 2CMT2015-005451
- Declaration of Conformity - UKCA
- 2CMT2020-006121
- DNV GL Certificate
- 9AKK107046A3749
- EAC Certificate
- RU C-CN.ME77.B.00587/20
- Object Classification Code
- S
- ETIM 6
- EC001028 - Push button, complete
- eClass
- V11.0 : 27371228
- UNSPSC
- 39122216
- IDEA Granular Category Code (IGCC)
- 5212 >> Push button for distribution board
- E-Number (Finland)
- 2312107
- E-Number (Norway)
- 4372604
- E-Number (Sweden)
- 3717247
- EAN
- 7320500376324
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500550724
- SAP 1200924013
- Code 84210931
Product Documentation
More from ABB
ABB
FUSE Holder E 93N/50
2CSM277952R1801
ABB
Safety Switch OTP75, 80A, 3P
OTP75T3M
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — TMA 160-1600, In=160 A, 3-Pole
1SDA067560R1
ABB
Switch LIMIT SWITCH,WALL-MOUNTED,WHITE
1066A-84
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — Ekip LSI, In=100 A, 4-Pole
1SDA067105R1
ABB

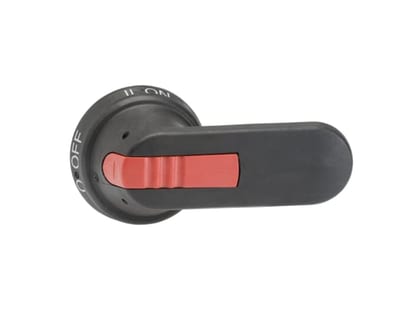

ABB 1SCA022621R0760 OHB95J12E011 Pistol Handle
