Switch LIMIT SWITCH,WALL-MOUNTED,WHITE
Pricing
Request a quote
We reply within 24 hours
Product Description

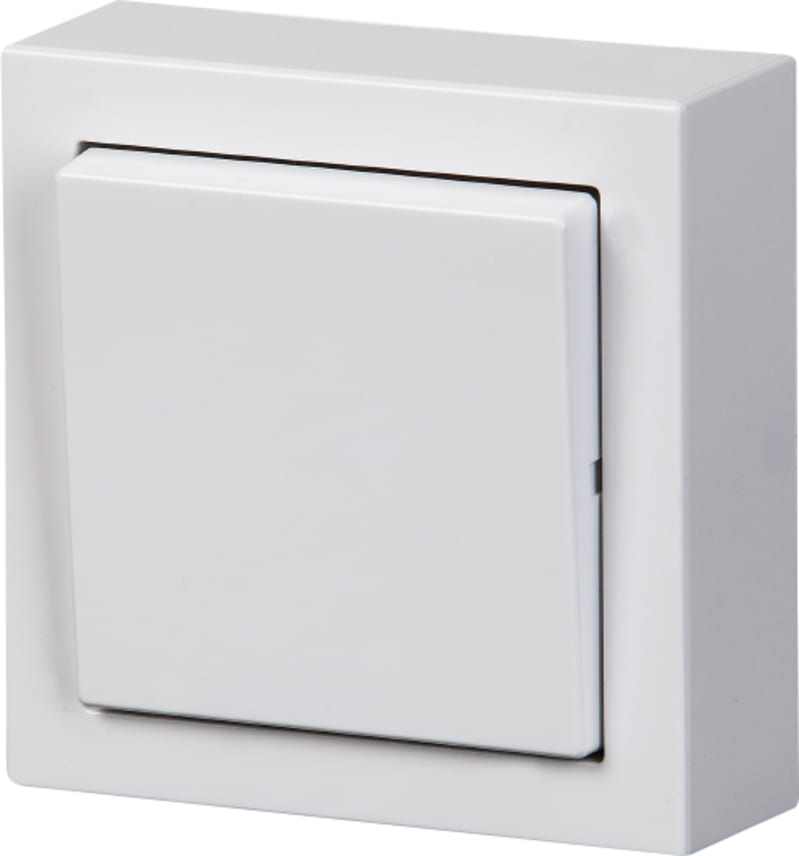

ABB 1066A-84 — Surface mounting switch with screwless terminals. The terminals are for max 2 solid or rigid wires. Including switch insert, rocker, surface mounting frame and bottom.
Technical Specifications
- Manufacturer part number (MPN)
- 1066A-84
- EAN / GTIN
- 6438199003221
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 9AKK107992A5276
- Wiring Diagram
- 9AKK108469A7410
- Mounting Type
- Surface mounted (plaster)
- Type of Fastening
- Mounting with Screw
- Degree of Protection
- IP21
- Environmental Information
- 9AKK107680A2952
- Function
- Control and orientation
- Number of Rocker Switches
- 1
- Wiring Configuration
- Two-way switch
- Connection Type
- Push-In
- Lamp Type
- LED exchangeable
- Illumination
- Optional
- Number of Batteries
- 0
- Actuator Type
- Rocker / PushButton
- Rated Voltage (U r )
- 250 V
- Rated Current (I n )
- 16 A
- Maximum Switching Current
- Fluorescent Lamps 16 A
- Design Range
- Impressivo
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- RAL 9016 - Traffic White
- Color
- White
- Number of Modules
- 0
- Product Net Width
- 85 mm
- Product Net Height
- 35 mm
- Product Net Depth / Length
- 85 mm
- Built-In Depth ( t 2 )
- 18 mm
- Dimension Diagram
- 9AKK108470A8115
- Environmental Product Declaration - EPD
- 9AKK108472A7554
- Declaration of Conformity - CE
- 9AKK10103A2377
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC001590 - Installation switch
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 6438199003221
- SAP 1000518624
- Code 8972361
Product Documentation
