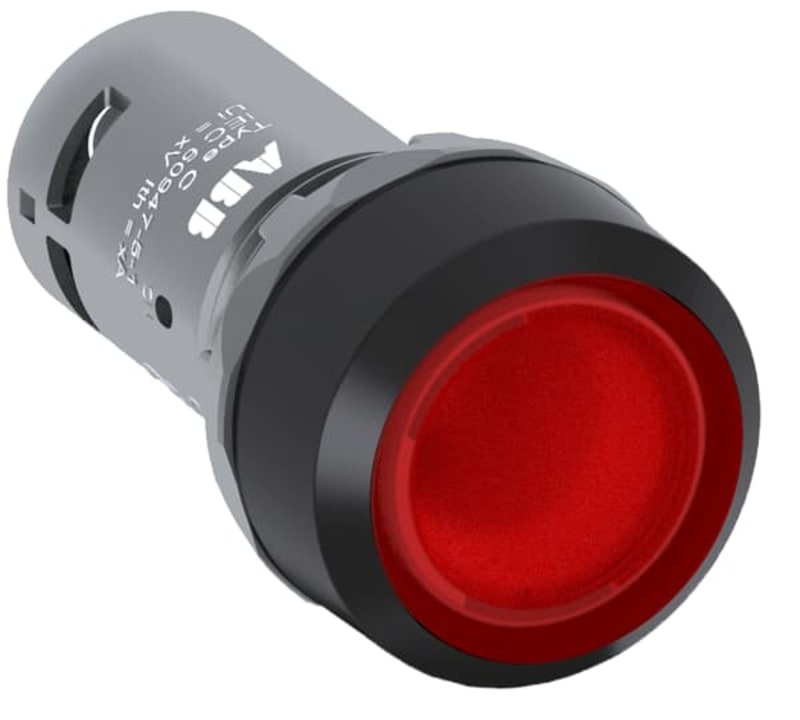

Illuminated Push Button Compact CP1-11R-10

ABB 1SFA619100R1111 — The CP1-11R-10 Pushbutton is: Compact - Pushbutton - Momentary - Flush - Red - Illuminated - Black Plastic - 1NO - Red - 1 NO - 0 NC -, 24 V. This Pushbutton is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.The compact range has a high level of dust and water resistance.

Manufacturer part number (MPN)

1SFA619100R1111

EAN / GTIN

7320500550700

Sales unit

pcs

Package quantity

10 pcs

Country of Origin

India

Product Sales Status

Active

Product Net Width

0.03 m

Product Net Height

0.03 m

Product Net Depth / Length

0.055 m

Ambient Air Temperature

Operation -25 ... +70 °C; Storage -40 ... +85 °C

Color

Red

Bezel Material

Plastic

Illumination

Illuminated

Lamp Type

LED 24V AC/DC

Function

Momentary

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Enclosure Type NEMA

Type1; Type12; Type13; Type3R; Type4; Type4X

Pollution Degree

3

Rated Insulation Voltage (U i )

300 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Rated Frequency (f)

50 / 60 Hz; Supply Circuit 50 / 60 Hz

Rated Operational Voltage

24 V AC/DC; Supply Circuit 24 V AC/DC

Rated Operational Current DC-13 (I e )

(24 V) 0.3 A; (125 V) 0.2 A

Rated Operational Current AC-15 (I e )

(240 V) 2 A; (220 / 240 V) 2 A

Power Loss

Maximum 2.7 W

Mechanical Durability

0.5 million

Connecting Capacity

Flexible with Ferrule 1 x 0.5...1.5 mm²; Flexible with Ferrule 2 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²; Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²; Flexible 1 x 0.5 ...1.5 mm²; Flexible 2 x 0.5 ...1.5 mm²; Solid 1 x 0.5...1.5 mm²; Solid 2 x 0.5...1.5 mm²

Connection Type

Screw Clamp

Terminal Type

Screw Terminals

Tightening Torque

0.8 N·m

Wire Stripping Length

6 mm

Connecting Capacity UL/CSA

1x 22...14 AWG; 2x 22...14 AWG

Degree of Protection

Front IP66; Front IP67; Front IP69K; Terminals IP20

CB Certificate

CQC_CN_CN50749

CCC Certificate

2024010305654692

CQC Certificate

CQC2003010305054693

cURus Certificate

UL_E496500-20171020

Declaration of Conformity - CE

2CMT2015-005451

Declaration of Conformity - UKCA

2CMT2020-006121

DNV GL Certificate

9AKK107046A3749

EAC Certificate

RU C-CN.ME77.B.00587/20

Object Classification Code

S

ETIM 6

EC001028 - Push button, complete

eClass

V11.0 : 27371228

UNSPSC

39122216

IDEA Granular Category Code (IGCC)

5212 >> Push button for distribution board

E-Number (Finland)

2312101

E-Number (Norway)

4372602

E-Number (Sweden)

3717245

EAN

7320500376300

HS Code

8536.50
