ABB

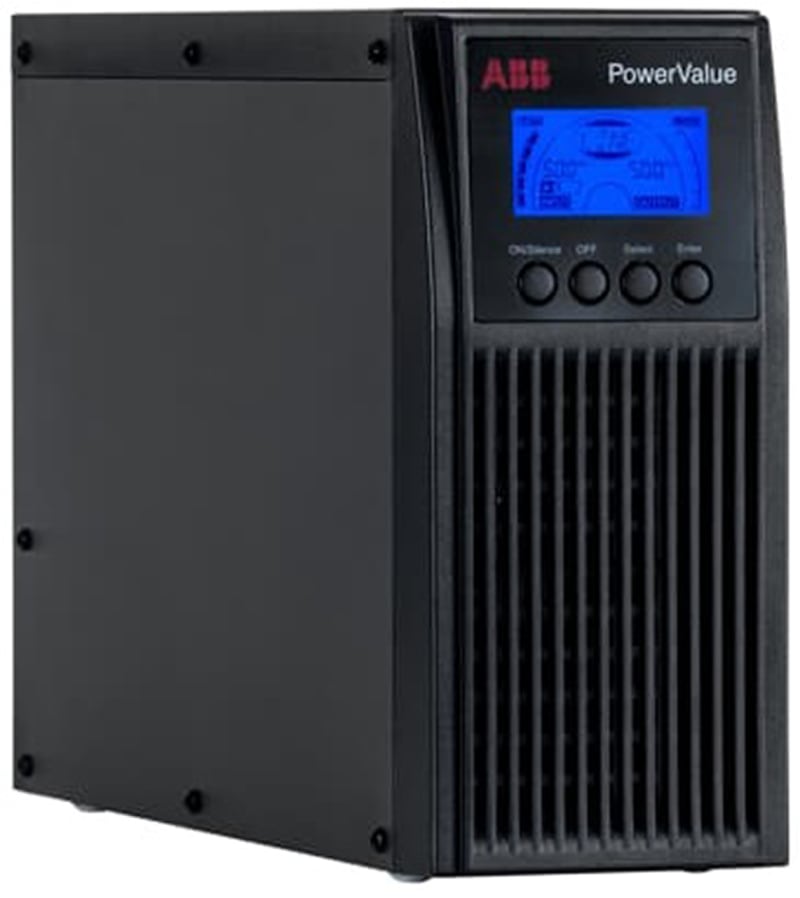

ABB VFI online double conversion;2700W;9MIN;RS232;USB;mini COM slot 4NWP100162R0001
Part number4NWP100162R0001EAN / GTIN7640169261923HS code8504.40
Electrical Components
UPS Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4NWP100162R0001 — VFI online double conversion;2700W;9min;RS232;USB;mini COM slot.
Technical Specifications
- Manufacturer part number (MPN)
- 4NWP100162R0001 EAN / GTIN: 7640169261923 Sales unit: pcs Environmental Product Declaration - EPD: No certification needed Product Net Width: 190 mm Product Net Height: 327 mm Product Net Depth / Length: 399 mm Apparent Power Output: 3000 V·A Battery Chemical Composition: Lead-Acid Battery Life: minimum 260 cycle Battery Type: Industrial Battery Weight: 2.83 kg Communication Interface: USB, RS-232 Connection Type: IEC C20 Input Voltage (U in ): 220 V; 230 V; 240 V Input Voltage Type: AC Number of Batteries: 6 Number of Outputs: C13 Connection 4; C19 Connection 1 Number of Phases: 1-phase Primary; 1-phase Secondary Options Provided: Auto shut down function; Potential free switch contact; Network-management Power Loss: at Average Load Use 297 W Rated Frequency (f): Primary 50 Hz; Primary 60 Hz; Secondary 50 Hz; Secondary 60 Hz Rated Output Power: 2700 W Declaration of Conformity - CCC: No certification needed Declaration of Conformity - CE: 4NWD004828 ETIM 9: EC000382 - UPS WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm) WEEE B2C / B2B: Business To Business CN8: 85044000 UNSPSC: 39121004 eClass: V11.1 : 27040690 Object Classification Code: G
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 7640169261923
- SAP 1200268131
- Code 82248849
Product Documentation
Document preview: ABB 4NWP100162R0001 — OEM Product Page
More from ABB
ABB
HK400 11-L Auxiliary contact, 1NO+1NC
2CCS500900R0081
ABB
Safety Switch DC OTDCP32S22M 32A 4P
ABB
Residual Current Circuit Breaker WITH Overcurrent DS202CRM C16A 30MA APR
DS202CR M C16 APR30
ABB
Earthing Clamp 6-15MM. AM 9
2TKA110009G1
ABB
HUE Smart Switch Insert
2CKA006710A0014
ABB
CUAL KL 1X35-95MM2, XT1, 3 PCS
KIT FC CuAl 1x35-95mm2 XT1 3p
ABB
Cover 1-Hole,85mm,41mm, White
1721A-84
ABB
ABB VFI online double conversion;1800W;9MIN;RS232;USB;mini COM slot 4NWP100161R0001
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4NWP100162R0001?
- 4NWP100162R0001 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 4NWP100162R0001.
- What is the HS code for 4NWP100162R0001?
- The customs tariff (HS) code for 4NWP100162R0001 is 8504.40.
- Who manufactures 4NWP100162R0001?
- 4NWP100162R0001 is a ABB product in the Electrical Components range.
- Is a datasheet available for 4NWP100162R0001?
- Yes — the 4NWP100162R0001 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4NWP100162R0001?
- The minimum order quantity is 1.
- Is 4NWP100162R0001 available?
- Yes — 4NWP100162R0001 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
