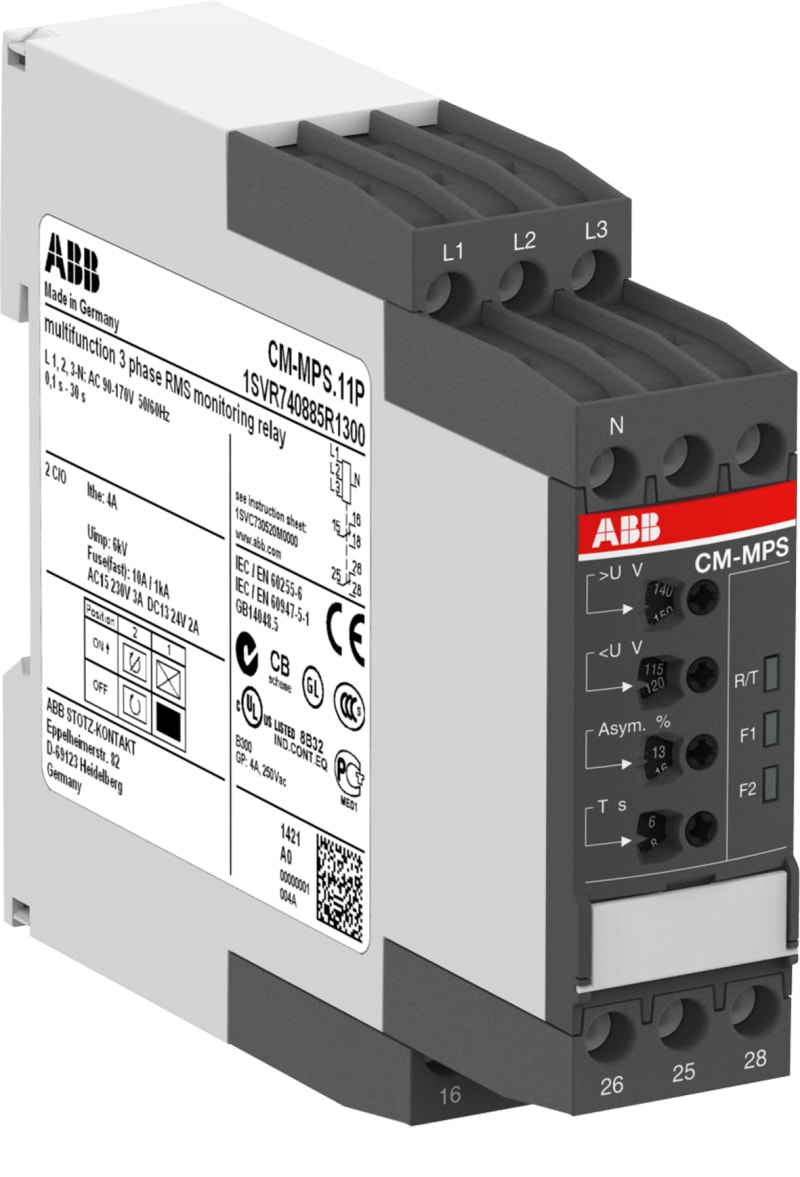

ABB CM-MPS.41P 3-Phase Voltage Monitoring Relay

ABB CM-MPS.41P is a 3-phase monitoring relay for phase failure, phase sequence, over- and undervoltage, and phase-unbalance detection on 300-500 V AC (L-L) supplies. Two C/O contact output stage with screwless terminals; housing IP50, terminals IP20. Rated impulse withstand 6 kV input / 4 kV output; overvoltage category III.

Manufacturer part number (MPN)

CM-MPS.41P EAN / GTIN: 4016779852043 HS code: 8536.90 Sales unit: pcs Product Net Width: 22.5 mm Product Net Height: 85.6 mm Product Net Depth / Length: 103.7 mm Function: Phase failure detection; Phase sequence monitoring; Over- and undervoltage monitoring; Phase unbalance detection Measuring Range: (L-L) 300 ... 500 V AC Time Range: Tripping Delay (ON or OFF) 0 s Rated Control Supply Voltage (U s ): (L-L) 300 ... 500 V AC Rated Frequency (f): Supply Circuit 50/60 Hz Output: 2 C/O Contacts Terminal Type: Screwless Terminals Rated Operational Current AC-12 (I e ): (230 V) 4 A Rated Operational Current AC-15 (I e ): (230 V) 3 A Rated Operational Current DC-12 (I e ): (24 V) 4 A Rated Operational Current DC-13 (I e ): (24 V) 2 A minimum Switching Capacity: 24 V; 10 mA Rated Impulse Withstand Voltage (U imp ): Input Circuit 6 kV; Output Circuit 4 kV Rated Insulation Voltage (U i ): Input Circuit / Output Circuit 600 V; Output Circuit 1 / Output Circuit 2 300 V Degree of Protection: Housing IP50; Terminals IP20 Overvoltage Category: III Pollution Degree: 3 Short-Circuit Protective Devices: Output Circuit NC - F Type Fuses 6 A; Output Circuit NO - F Type Fuses 10 A Electrical Durability: AC-12 100000 cycle Mechanical Durability: Nr. Operations 30000000 cycle Connecting Capacity: Flexible with Ferrule 2x 0.5 ... 1.5 mm²; Flexible with Insulated Ferrule 2x 0.5 ... 1.5 mm²; Flexible 2x 0.5 ... 1.5 mm²; Rigid 2x 0.5 ... 1.5 mm² Wire Stripping Length: 8 mm Mounting Position: 1 ... 6 Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 Standards: CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 60255-27; IEC/EN 61000-6-2; IEC/EN 61000-6-3; UL 508 Maximum Operating Voltage UL/CSA: Output Circuit 300 V AC Contact Rating UL/CSA: B300 Connecting Capacity UL/CSA: Flexible 2x 18-16 AWG; Rigid 2x 20-16 AWG Pilot Duty UL/CSA: B300 Flammability According to UL94: V-0 Ambient Air Temperature: Operation -25 ... +60 °C; Storage -40 ... +85 °C Maximum Operating Altitude Permissible: Without Derating 2000 m Environmental Product Declaration - EPD: 1SAC200438H0001 CB Certificate: CB_DK-27947-UL cULus Certificate: cULus508_20120829-E140448 Declaration of Conformity - CCC: 2020980303000197 Declaration of Conformity - CE: 1SVD981014-00 Declaration of Conformity - UKCA: 1SVD981014-10 DNV GL Certificate: DNV_GL_TAA000017D Object Classification Code: B ETIM 7: EC001441 - Phase monitoring relay eClass: V11.0 : 27371803 UNSPSC: 39122332 E-Number (Finland): 2712277 E-Number (Norway): 4188137 E-Number (Sweden): 3860606

HS Code

8536.90

• EAN 4016779852043
• SAP 1000659481
• Code 8351855
