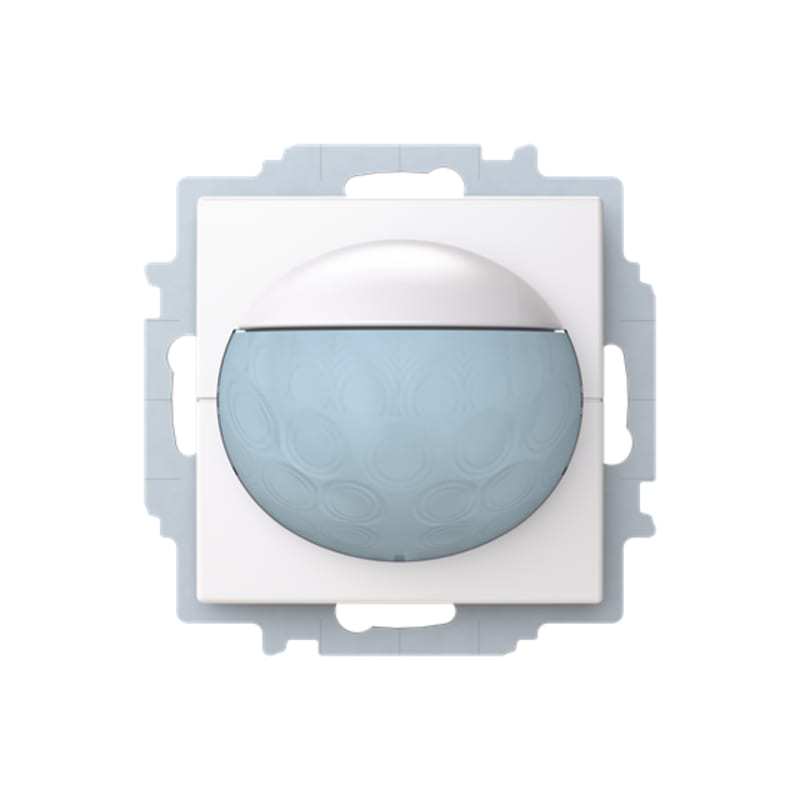

SAGA FLEX BEV.SENSOR Multi without Frame
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA006800A3105 — Movement detector sensor with measurement of ambient light. For automatic switching of devices dependent on motion and brightness. Push switch function possible at all times. For detection down to the floor. For detection in stairwells. With 4 detection levels. In combination with dimmer insert flex: dimming function of lighting and selectable light value storage. With enabling of pre-warning of switch-off for stairwell operation. Compatible with all free@home flex inserts. Adjusting elements on rear side. Multi-lens: suitable also for mounting heights of 2.20 m. Extension of the detection range by means of master/slave combination. With continuous light/continuous Off function. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Surveillance density: 54 sectors with 224 switching segments. Switch-off delay: approx. 10 sec - 30 min or short-time pulse 1 sec adjustable. Mounting height: 31 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA006800A3105 EAN / GTIN: 4011395321591 HS code: 8536.90 Sales unit: pcs Mounting Height: Maximum 2.2 m; Optimum 2.2 m Modular Components Included: Cover with Flush Mounted Insert and Mounting Plate Ambient Air Temperature: -5 ... 45 °C Degree of Protection: IP20 Data Sheet, Technical Information (Part 2): 2CKA000073B5216 Number of Switching Zones: 224 minimum Switching Time: Switch-On 10 s Connection Type: Screw Sensor Type: Passive Infrared Manual Operation: Yes Illuminance: 5 ... 500 lx Sensor Detection Range: 180 °; Horizontal 0 ... 180 ° Rated Voltage (U r ): 230 ... 230 V Input Voltage Type: AC Rated Frequency (f): 50 ... 50 Hz Load Type: LEDi/CFLi; Incandescent Lamp; Halogen Lamp, High Voltage; Halogen Lamp, Low Voltage; Fluorescent Lamp Design Range: Saga Surface Finishing: Glossy; Untreated material: Plastic; Thermoplastic RAL Number: Similar to RAL 9003 Color: white Product Net Width: 71 mm Product Net Height: 71 mm Product Net Depth / Length: 63.77 mm Built-In Depth ( t 2 ): 25 mm Dimension Diagram: 2CKA000097E4122 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC000133 - Movement sensor/presence detector complete eClass: V11.0 : 27144007
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011395321591
- SAP 1200706252
- Code 83752061
Product Documentation
More from ABB
ABB

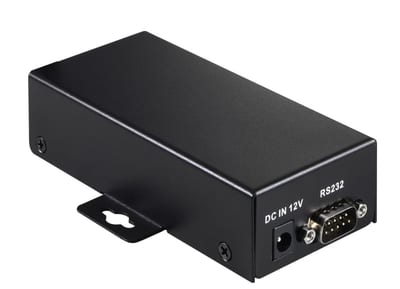

ABB WebPro SNMP box adapter 4NWP100230R0002
ABB

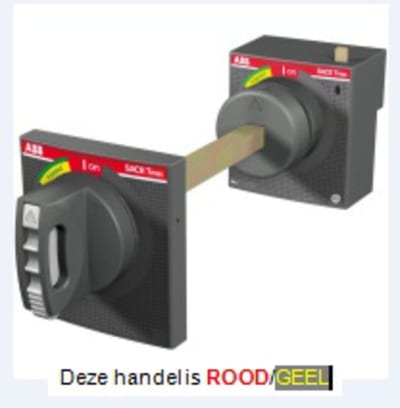

Handle on door RHE_EM XT1-XT3
1SDA066481R1
ABB

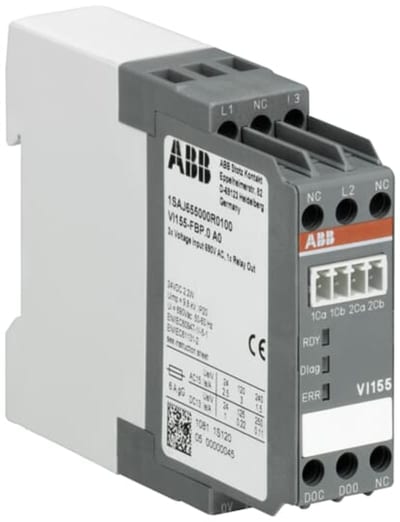

Voltage Module VI155-FBP.0
1SAJ655000R0100
ABB
ZE 225 (2CPX061177R9999)
ABB

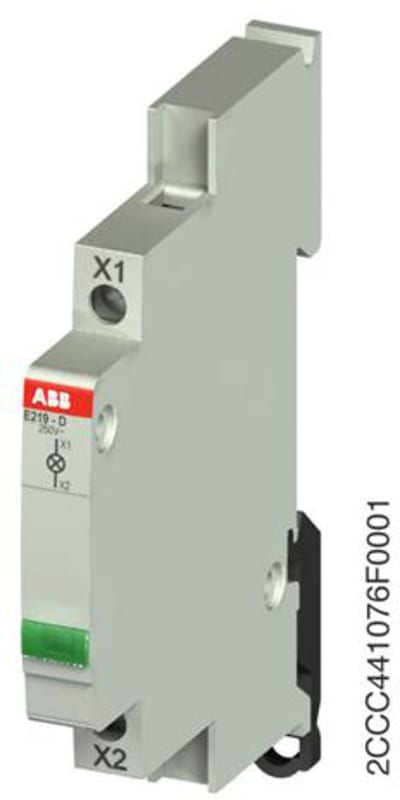

ABB Indicator light with maintenance-free LED, LED colour: green 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5 2CCA703422R0001
ABB

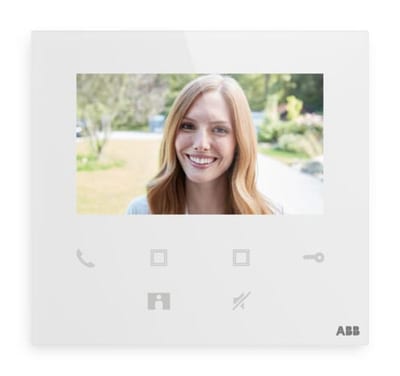

WM Svarapparat 4,3" M/IP
M22403-W
ABB

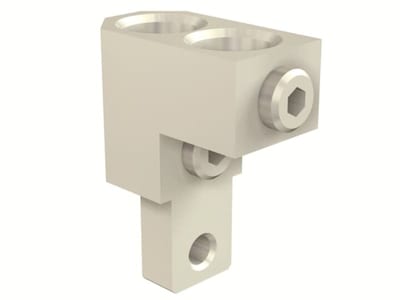

KIT FC CuAl 2X120...240MM2 XT6 4 Pcs
1SDA104751R1
ABB

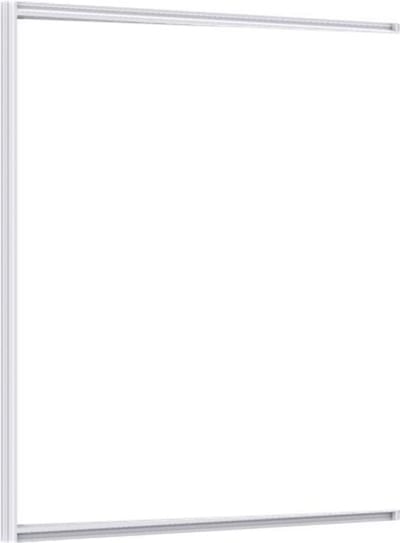

Cover frame TZP504 600X1250X30MM
