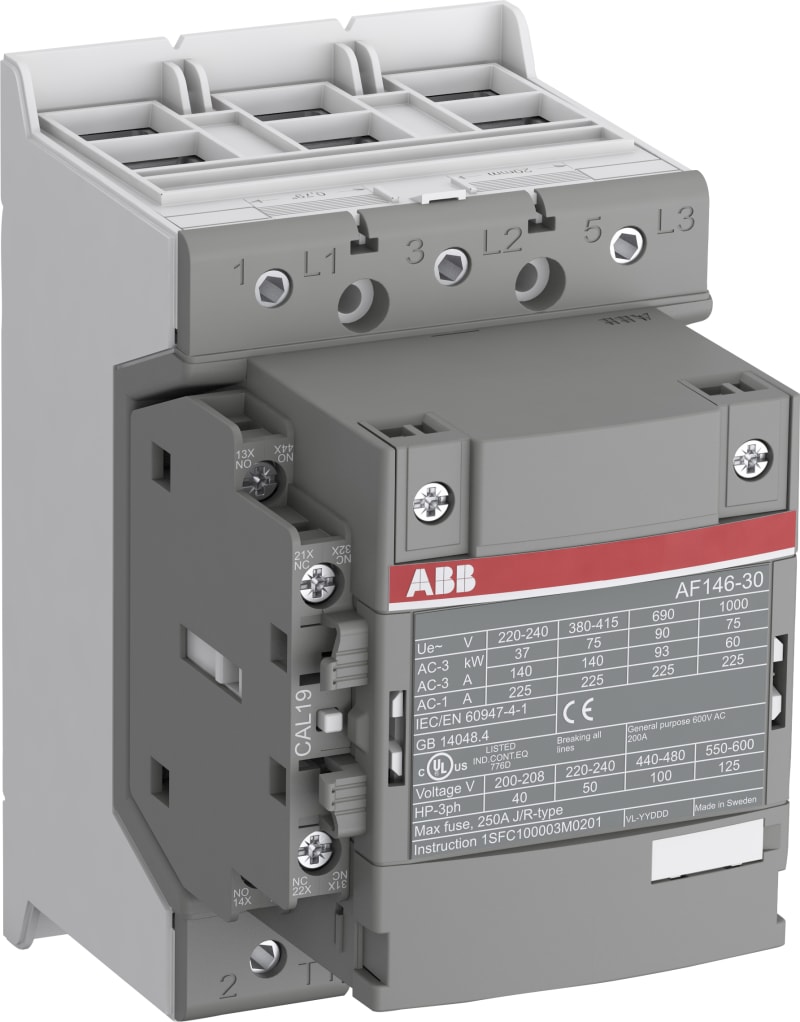

Contactor AF146-30-11-13B (AF146-30-11B-13 100-250V 50/60Hz / DC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF146-30-11B-13 100-250V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. AF146-30-11-13B 100-250V 50/60Hz/DC - Contactor with rail connection. With 1NO+1NC hj.connector.
Technical Specifications
- Manufacturer part number (MPN)
- AF146-30-11B-13 100-250V 50/60Hz / DC
- EAN / GTIN
- 7320500476987
- HS code
- 8536.90
- Sales unit
- pcs
- Frequency
- 50/60 Hz
- Width
- 90 mm
- Height
- 150 mm
- Depth
- 126 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 75 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 146 A
- Rated operation current Ie at AC-1, 400 V
- 225 A
- Rated control supply voltage AC 50 Hz
- 100–250 V
- Rated control supply voltage AC 60 Hz
- 100–250 V
- Rated control supply voltage DC
- 100–250 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 37.285 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500476987
- SAP 1000598842
- Code 8396476
Product Documentation
More from ABB
ABB
SAGA WALL-Mounted 6 Switch Two-Way
2TKA00005104
ABB

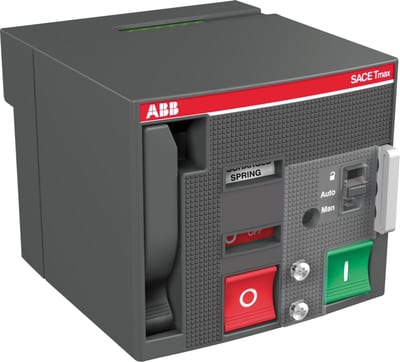

Motor MOE T6 220..250V AC/DC
