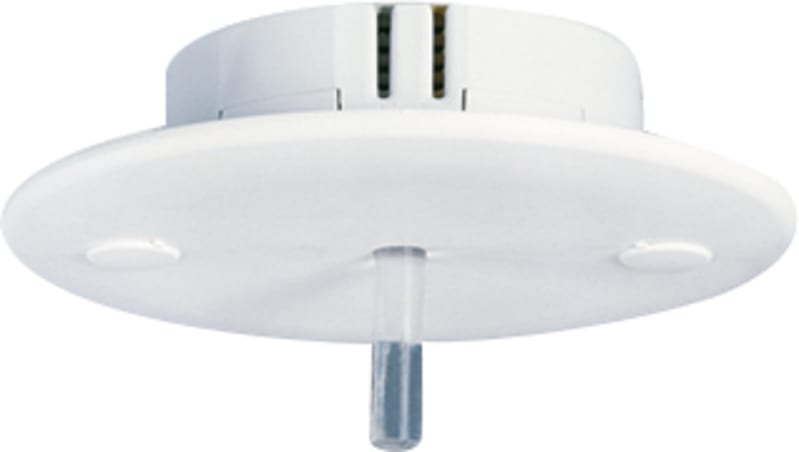

ABB LF/U2.1 KNX Light Sensor for LR/S Controller
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110089R0011 KNX light sensor used to measure the brightness level in rooms. When combined with the light controller LR/S x.16.1 (x = 2 or 4), DLR/S or LR/M1.6.2 it supports constant-light control. Illuminance range 200-3000 lx, IP20, flush-mounted.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110089R0011
- EAN / GTIN
- 4016779664165
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941051P0003
- Wiring Diagram
- 9AKK108464A0608
- Mounting Type
- Flush Mounted
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507088D0201
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Sensor Type
- Separate Light
- Manual Operation
- No
- Illuminance
- 200 ... 3000 lx
- Number of Batteries
- 0
- Color
- white
- Product Net Width
- 54 mm
- Product Net Height
- 20 mm
- Product Net Depth / Length
- 54 mm
- Dimension Diagram
- 9AKK108464A0609
- EPLAN Data
- 9AKK108464A1063
- Building Information Modeling – BIM
- 9AKK107046A4294
- CB Certificate
- 9AKK107991A3197
- Declaration of Conformity - CE
- 2CDK507022D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0085
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000927 - Brightness sensor for bus system
- eClass
- V11.0 : 27143111
- UNSPSC
- 39121801
- Object Classification Code
- A
- Model
- Light sensor
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779664165
- SAP 1000464425
- Code 8572589
